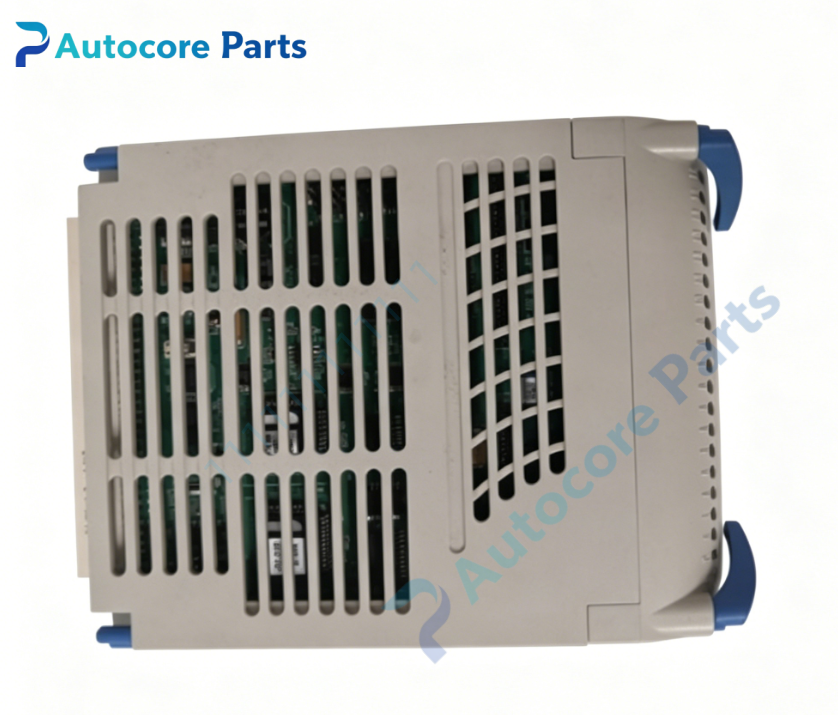

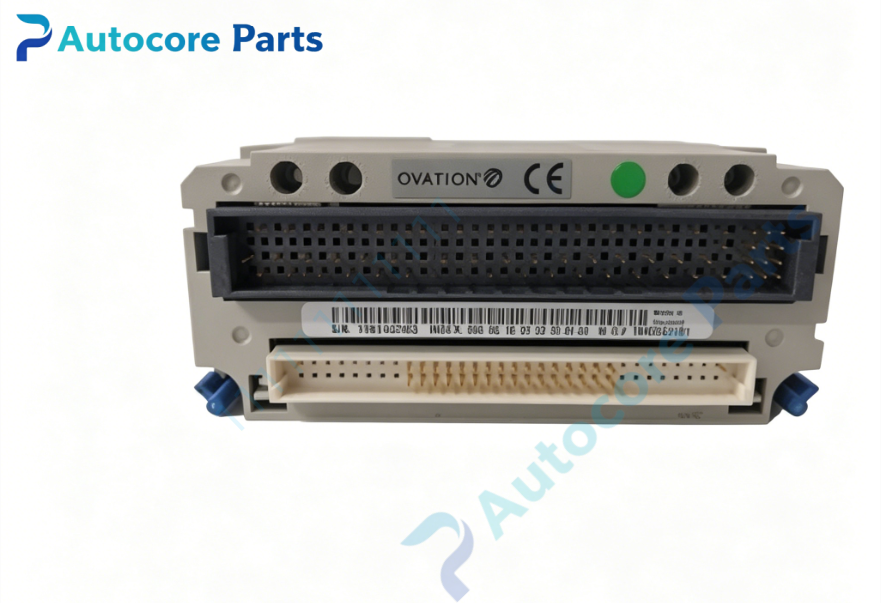

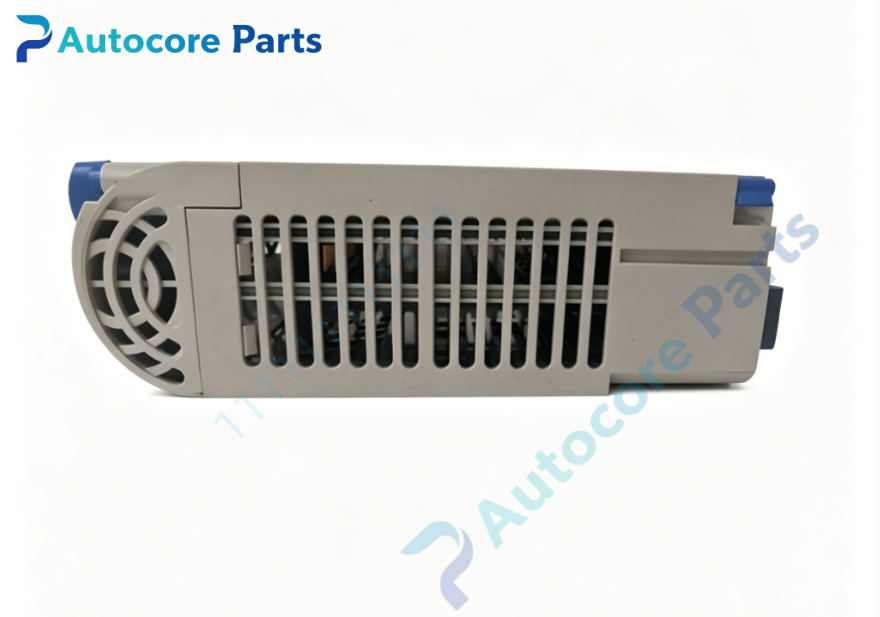

Emerson 1C31157G03 Ovation SOE Digital Input Personality Module

Technical Specifications

Model:1C31157G03

Brand:Emerson

Product Type:48VDC Internal Wetting SOE Digital Input Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:1C31127G01 digital input electronics module

Channel quantity:16 SOE discrete input channels

Input signal type:Dry‑contact input with on‑board 48VDC wetting supply

Nominal wetting voltage:48VDC internal wetting power

Time‑stamp resolution:1 millisecond high‑speed event capture

Isolation:1000VAC field‑to‑logic side galvanic isolation

Input filter:Hardware debounce configurable on host electronic module

Installation:Plug‑in install with 1C31127G01 on Ovation I/O base

Common Revision:G03 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field 48VDC wet‑contact SOE input channel configuration internal wetting power supply surge interference suppression overvoltage protection cooperate with host module record breaker trip relay action and protection alarm events

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31157G03 is Emerson Ovation 48VDC wetting SOE digital input personality module G03 hardware revision works paired with 1C31127G01 electronic module

It is plugged onto I/O base together with host module defines 16‑channel sequence‑of‑events interface with built‑in 48VDC wetting supply for dry‑contact field devices

This personality module supplies internal 48VDC wetting voltage no external field power required for contact‑type signal acquisition

It captures contact‑action events with 1ms time‑stamp resolution widely used for power plant breaker status relay trip and protection fault event recording

1000VAC galvanic isolation separates field side from DCS logic backplane suppresses ground‑loop interference and transient surge damage

It transfers field discrete status and event timestamp data to host electronic module for signal filtering and backplane data transmission

No extra software configuration required after correct physical installation host module identifies personality hardware automatically

Shares hot‑swap channel diagnosis and surge suppression features from matched 1C31127G01 electronic module

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system

Please confirm matching host module model before purchase

Strict ESD anti‑static protection shall be followed during installation and replacement
