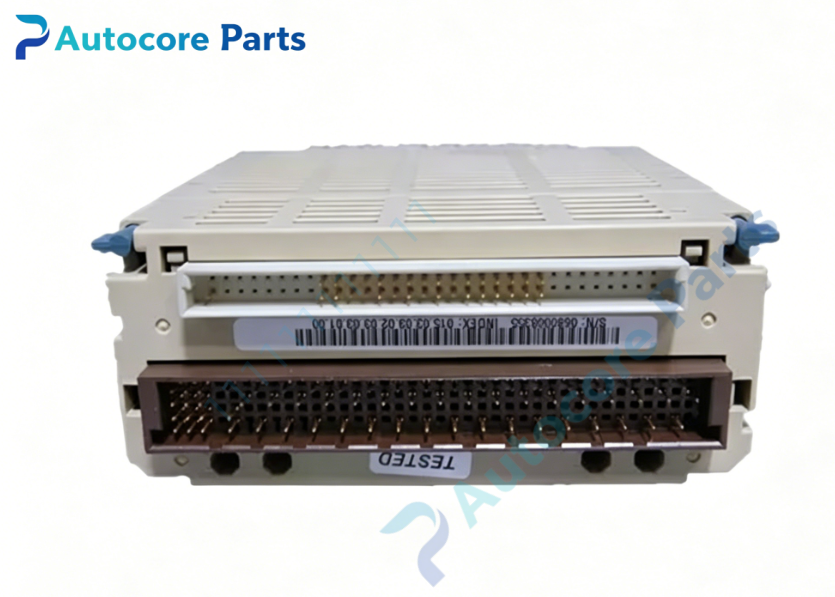

Emerson 1C31174G04 Ovation Loop Interface Personality Module

Technical Specifications

Model:1C31174G04

Brand:Emerson

Product Type:4‑20mA Remote‑Power Analog Input Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:Ovation analog I/O electronics module

Analog Input range:4‑20 mA DC

Power supply mode:Remote external transmitter power supply (no on‑board loop power)

Isolation:1000VAC field‑to‑backplane galvanic isolation

Installation:Plug‑in install with analog I/O electronic module on Ovation I/O base

Common Revision:G04 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field 4‑20 mA remote‑power analog signal conditioning, surge interference suppression, overvoltage protection, cooperate with host module complete pressure, flow and liquid‑level signal acquisition for externally powered field transmitters

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31174G04 is Emerson Ovation remote‑power 4‑20 mA loop interface personality module G04 hardware revision, works paired with Ovation analog I/O electronic main module。

It is plugged onto I/O base together with host module, defines hardware interface for 4‑20 mA analog input signal, this personality module does not provide internal loop power, field transmitters must adopt external remote power supply mode.

It is widely used for thermal‑power‑plant pressure, flow, liquid‑level measuring loops, suitable for field instruments equipped with independent external power supply.

1000VAC galvanic isolation separates field instrument side from DCS logic backplane suppresses ground‑loop interference and transient surge damage.

It transfers field 4‑20 mA current signals to host electronic module for A/D conversion and backplane data transmission.

No extra software configuration required after correct physical installation, host module identifies personality hardware automatically.

Shares hot‑swap, channel diagnosis and surge‑suppression features from matched analog I/O electronics module.

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system.

Please confirm matching host module model before purchase.

Strict ESD anti‑static protection shall be followed during installation and replacement.
