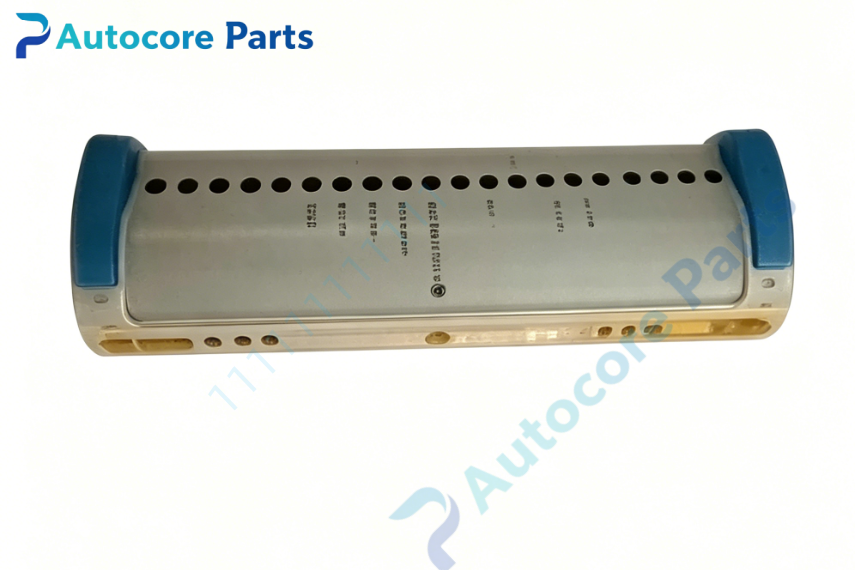

Emerson 1C31174G27 Ovation HART‑Enabled Loop Interface Personality Module

Technical Specifications

Model:1C31174G27

Brand:Emerson

Product Type:HART‑Enabled 4‑20mA Analog Input Personality Module

Applicable System:Emerson Ovation distributed control system thermal power plant DCS control cabinet

Matching Module:Ovation analog I/O electronics module

Channel quantity:4 analog input channels

Signal range:4‑20 mA DC

HART function:Built‑in HART signal modulation, supports HART smart transmitter communication

Power supply mode:On‑board loop power for two‑wire HART transmitters

Isolation:1000VAC field‑to‑backplane galvanic isolation

Installation:Plug‑in install with analog I/O electronic module on Ovation I/O base

Common Revision:G27 hardware revised version

Status Indicator:No independent LED indicator shares status LED of host electronic module

Built‑in Function:Field 4‑20mA+HART signal conditioning, two‑wire transmitter loop power supply, surge interference suppression, overvoltage protection, cooperate with host module acquire process variable and HART diagnostic data from smart field transmitters

Working Temperature:0℃ ~ +60℃

Storage Temperature:‑40℃ ~ +85℃

Protection Class:IP20

Weight:0.13kg

Product Brief:

1C31174G27 is Emerson Ovation HART‑enabled loop interface personality module G27 hardware revision, works paired with Ovation analog I/O electronic main module.

It is plugged onto I/O base together with host module, defines hardware interface for 4‑20 mA analog input with HART superimposed signal.

This personality module supplies loop power for two‑wire HART smart transmitters, not only collects 4‑20mA process analog value, but also reads HART secondary data including device status, diagnostic alarm, engineering unit information.

Widely applied in thermal‑power‑plant boiler pressure, flow, liquid‑level measuring loops for intelligent instrument monitoring and predictive maintenance.

1000VAC galvanic isolation separates field instrument side from DCS logic backplane suppresses ground‑loop interference and transient surge damage.

It transfers analog current and HART digital signal to host electronic module for conversion and backplane transmission.

No extra software configuration required after correct physical installation, host module identifies personality hardware automatically.

Shares hot‑swap, channel diagnosis and surge‑suppression features from matched analog I/O electronics module.

This is EOL discontinued spare part widely used for maintenance and renovation of thermal power plant Ovation DCS system.

Please confirm matching host module model before purchase.

Strict ESD anti‑static protection shall be followed during installation and replacement.
