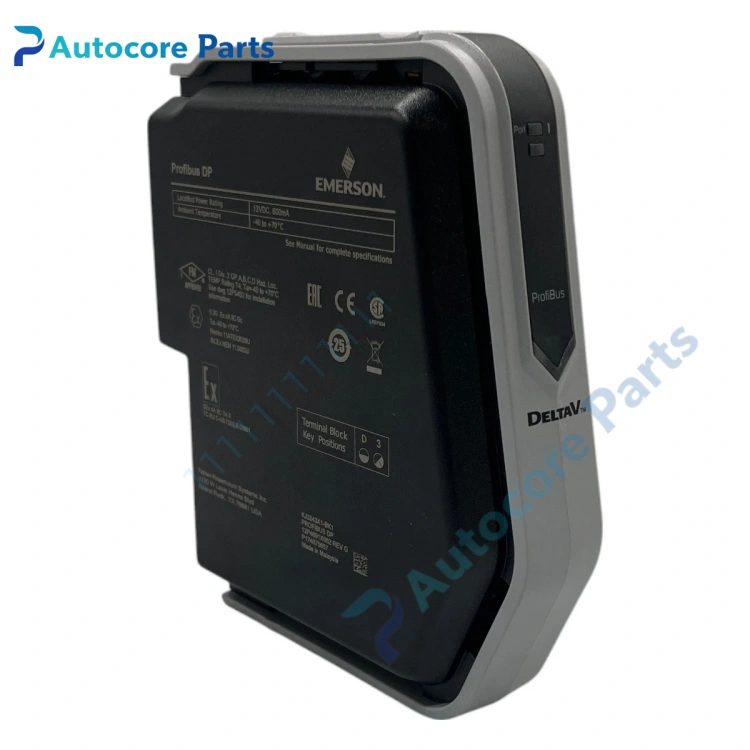

Emerson KJ3243X1 Communication Interface Module

Feature & Principle

It is a Series 2 PROFIBUS DP communication interface module for Emerson DeltaV DCS system. It acts as DP master station to realize data exchange between DeltaV controller and PROFIBUS DP field instruments, remote I/O and drives. It supports hot swapping without powering off the rack. Built-in bus diagnosis function, monitors bus communication status and reports fault information to DeltaV control network. Different suffix versions such as BA1, BB1, BK1 correspond to different functional configurations, widely used for process industry fieldbus networking.

Specifications

Model: KJ3243X1 series Brand: Emerson System: DeltaV DCS Protocol: PROFIBUS DP Max slave: Up to 31 DP slaves Bus rate: Up to 12 Mbps Installation: DeltaV controller carrier slot Hot swap: Support Power supply: Backplane power supply Protection class: IP20 Application: Petrochemical, power plant, chemical plant DCS fieldbus connection Certification: CE, ATEX optional

Components & Diagnostics

Main communication PCB, PROFIBUS transceiver circuit, backplane interface, status LED indicators, watchdog circuit. Common faults: bus communication interruption, slave offline, module cannot synchronize with controller, bus short circuit alarm.

Product Brief

KJ3243X1 interface module, Emerson DeltaV PROFIBUS DP fieldbus communication spare widely used for DCS cabinet overhaul and replacement.
