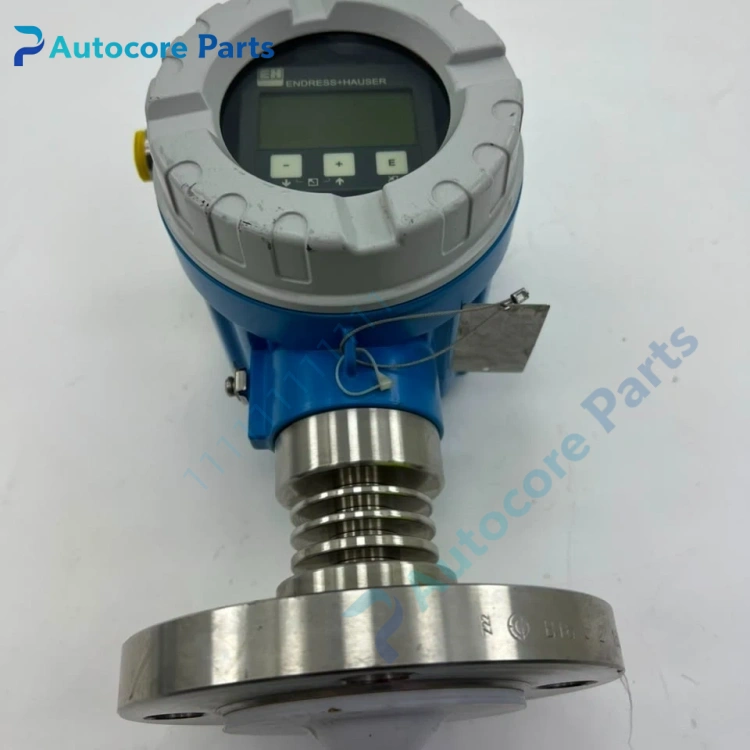

Endress+Hauser FMR245-2BAEKAA4A Micropilot M Radar Level Transmitter Unit

Feature & Principle

This radar sensor emits microwave signals to the liquid surface and receives reflected echoes. It calculates the distance and liquid level height based on time-of-flight principle. Non-contact design avoids medium corrosion and clogging, supports HART digital communication for remote configuration and diagnostics.

Specifications

Model: FMR245-2BAEKAA4A Brand: Endress+Hauser Series: Micropilot M Frequency: 26 GHz K-band Signal output: 4-20mA + HART Power supply: 2-wire loop powered Measurement accuracy: ±3 mm Process temperature: -40 ~ +200 ℃ Max process pressure: 16 bar Wetted material: PTFE Protection grade: IP66 / NEMA4X Certification: ATEX, CE

Components & Diagnostics

Radar antenna module, signal processing mainboard, local display, housing, terminal block. Common faults: echo loss, signal fluctuation, HART communication interruption, antenna fouling.

Product Brief

FMR245-2BAEKAA4A radar level transmitter, Endress+Hauser discontinued process instrument spare widely used in chemical, food, water treatment and storage tank level monitoring.
