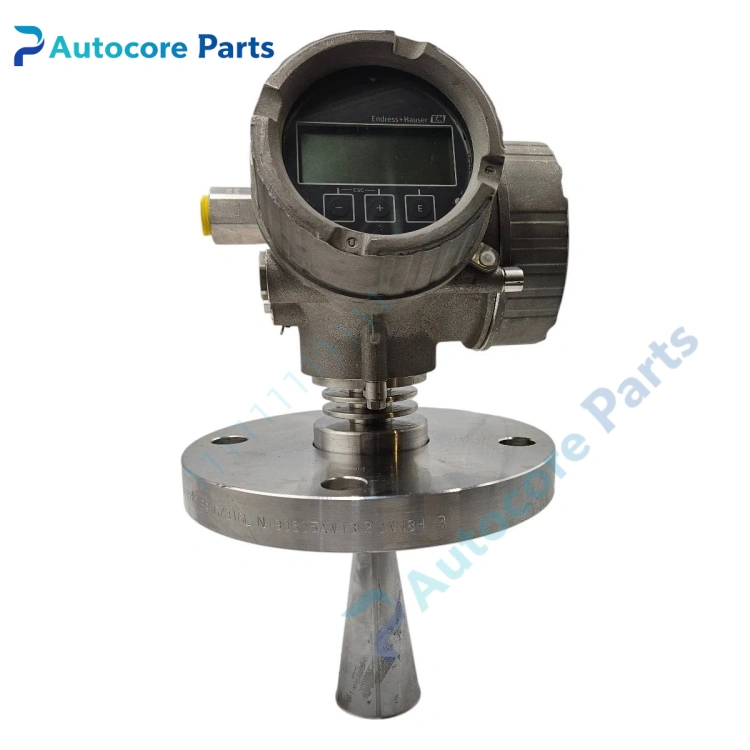

Endress+Hauser FMR51 Micropilot Free Space Radar Level Transmitter

Feature & Principle

It works on time-of-flight radar principle, 26GHz K-band signal. It calculates distance by recording echo return time from liquid surface. Multi-Echo Tracking algorithm suppresses false echoes from nozzle, agitator and foam. With Heartbeat Technology self-diagnosis, HistoROM data storage, supports Bluetooth commissioning via SmartBlue. Suitable for liquid, paste and slurry non-contact continuous level monitoring.

Specifications

Model: FMR51-36293 Brand: Endress+Hauser Series: Micropilot FMR51 Frequency: 26GHz K-band Accuracy: ±2 mm Max measuring range: 40m, 70m for advanced dynamic version Process temp: -196 ~ +450℃ Process pressure: -1 ~ 160 bar Output: 4-20mA HART optional Certification: ATEX, IECEx, SIL2, WHG optional Application: Chemical, oil & gas, storage tank, reactor, slurry vessel

Components & Diagnostics

Horn antenna, electronic transmitter module, local display, terminal housing, signal processing board. Common faults: antenna fouling, foam interference, echo loss, communication failure, parameter loss.

Product Brief

FMR51-36293 radar level meter, E+H Micropilot high-performance level instrument spare widely used for tank and reactor overhaul and replacement.
