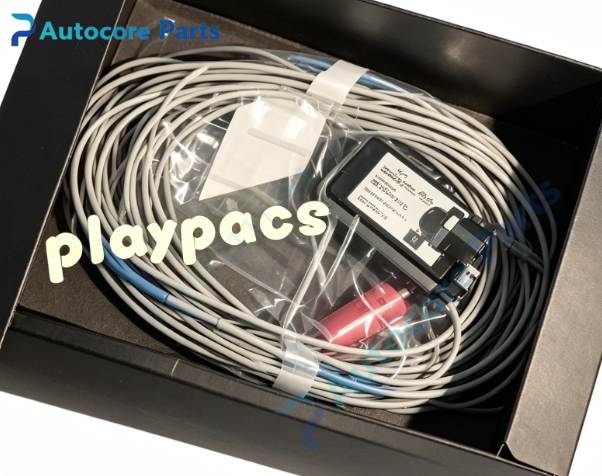

EPRO PR6424/010-140 Eddy Current Sensor

Technical Specifications

Model:PR6424/010-140

Brand:EPRO(Emerson)

Measurement principle:Eddy current,non-contact

Probe diameter:16mm

Scale factor:4 V/mm

Linear range:4mm

Cable:10m stainless steel armored integrated cable

Connector:M12 connector

Thread specification:M18×1.5

Housing material:Stainless steel

Protection class:IP66

Operating temperature:-35~+180℃

Weight:0.65kg

Certification:CE,API670 compliant

System compatibility:Matches EPRO MMS6000 TSI rack system,works with CON021 preamplifier and MMS6220 monitor module,for steam turbine,compressor,generator large diameter shaft radial vibration and axial displacement monitoring.

Function:Non-contact eddy current probe,detect large shaft relative vibration and axial displacement.Convert gap change into voltage signal,transmit signal to preamplifier and TSI monitor for displacement calculation,alarm and rotating machinery fault diagnosis.

Installation:Thread mounting on bearing housing.Keep proper gap between probe tip and shaft target surface.Connect probe cable to CON021 preamplifier.

Interface:

‑16mm stainless steel probe tip

‑10m stainless steel armored signal cable

‑M12 connector for preamplifier connection

Circuit feature:High stability coil design,wider linear range,oil and high temperature resistant,anti-electromagnetic interference for heavy turbomachinery harsh environment.

Feature:EPRO PR6424 series 16mm eddy current probe,/01=16mm standard probe,0=10m armored cable,-140=M12 connector.Must use matched CON021 preamplifier as full measuring set. Common faults:cable armor damage,coil aging,connector pin corrosion.Confirm matched preamplifier before replacement.

Diagnostic:Sensor fault causes abnormal gap voltage,loss of shaft vibration/displacement reading,trigger TSI machinery protection alarm.

Built‑in function

PR6424/010-140 measures large shaft radial vibration and axial displacement for rotating machinery protection,widely used for power plant TSI spare replacement.

Product Brief

PR6424/010-140 belongs to EPRO eddy current probe family,16mm standard probe with 10m armored cable and M12 connector. Must be used with calibrated matching CON021 preamplifier. Verify probe and preamplifier matching before ordering. Check cable continuity and gap voltage during commissioning. Widely applied for steam turbine,compressor and generator condition monitoring. ESD anti‑static protection shall be followed during installation.
