Fisher 1U2161X0132 Valve Trim Spare Component

Technical Specifications

Model：1U2161X0132 Brand：Fisher Product Type: Control valve internal trim component

Module Feature

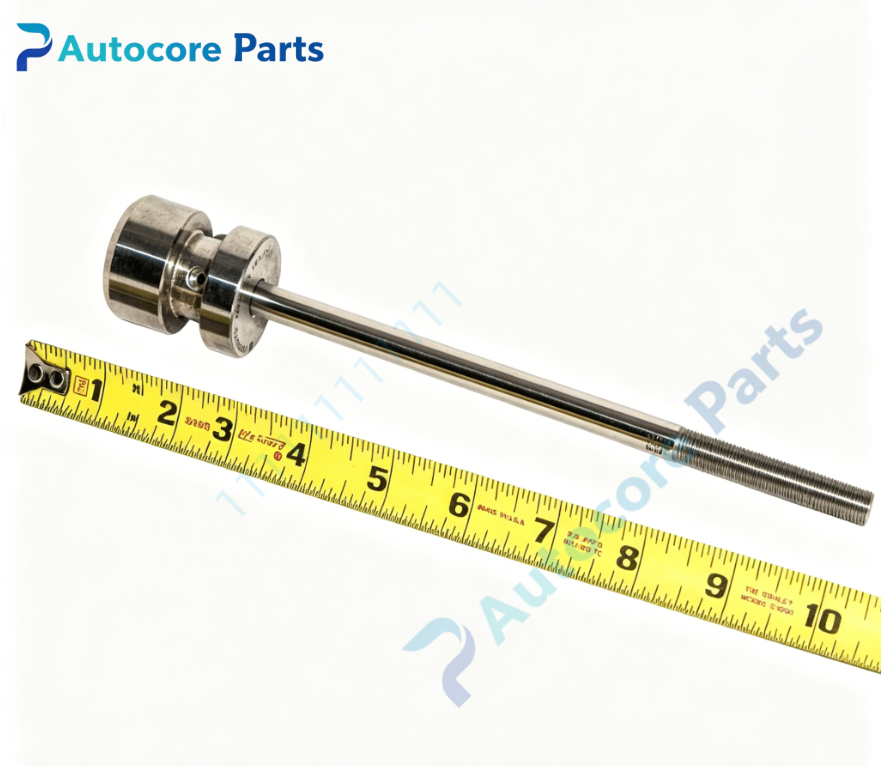

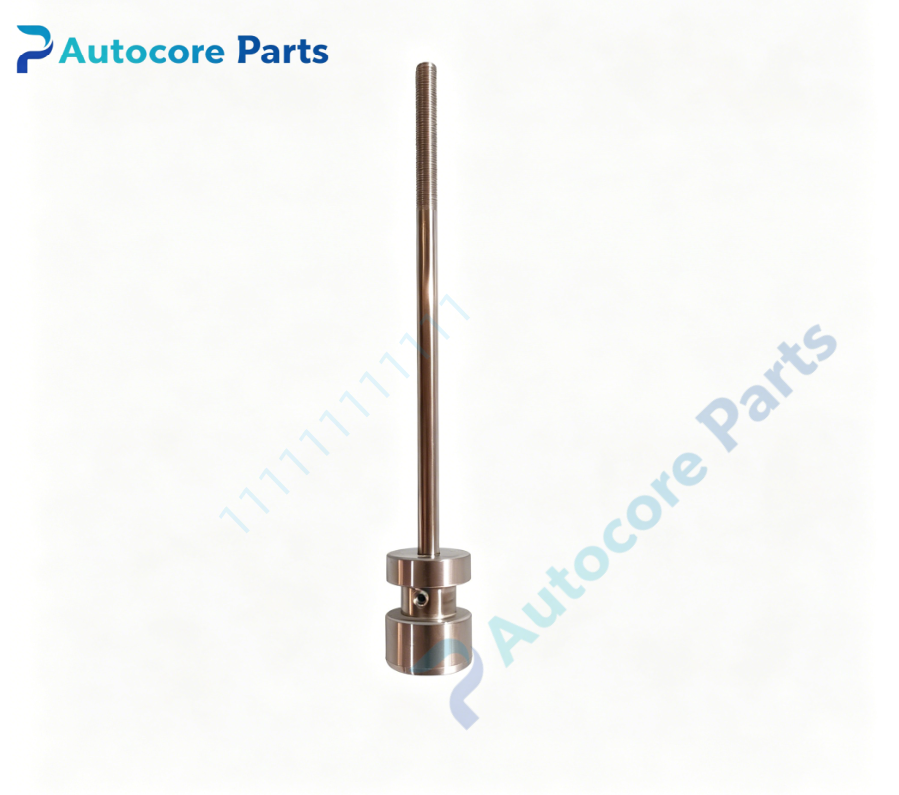

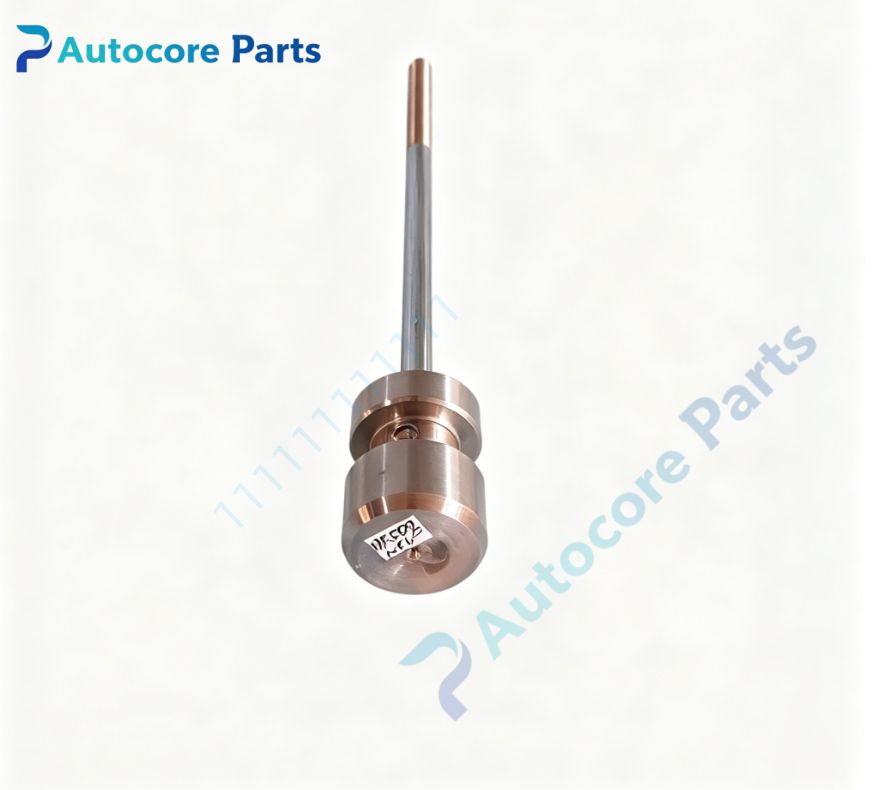

Fisher 1U2161X0132 is precision internal trim spare component for Fisher globe control valve. It undertakes fluid throttling and pressure regulation inside valve body. It adopts hard alloy material with excellent erosion and cavitation resistance. Widely applied in oil,gas,chemical and power plant process control valves. Working principle: Fluid throttling Onboard components: Alloy plug, valve seat, sealing face, positioning sleeve

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, dimensional measurement, leakage test, surface wear inspection

Programming software

No dedicated software required

Mechanical & Structure

Mounting: Installed inside control valve body Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher control valve trim spare part

System compatibility

Compatible with Fisher globe control valve and pneumatic actuator for industrial process control system.

Function

1U2161X0132 is core valve trim component manufactured by Fisher. It changes fluid flow area to regulate medium flow rate and pressure. Hardened sealing surface resists abrasion, erosion and cavitation damage. It determines valve flow characteristic and shut-off tightness. It is key spare part for control valve overhaul.

Installation

Follow lockout/tagout safety procedure before installation. Isolate pipeline and release process pressure. Disassemble valve bonnet, replace old trim assembly. Check seat sealing surface and alignment. Reassemble valve and run hydrostatic test and seat leakage inspection.

Interface

Valve body internal positioning structure, fixed mounting structure, no LED indicators on 1U2161X0132.

Diagnostic

Valve internal leakage: Damaged sealing surface or seat scratch. Reduced flow capacity: Trim scaling or surface erosion. Abnormal vibration noise: Cavitation damage or loose trim assembly.

Product Brief

1U2161X0132 Fisher control valve internal trim component,used for industrial process pipeline flow and pressure regulation maintenance,hard alloy valve trim spare part.
