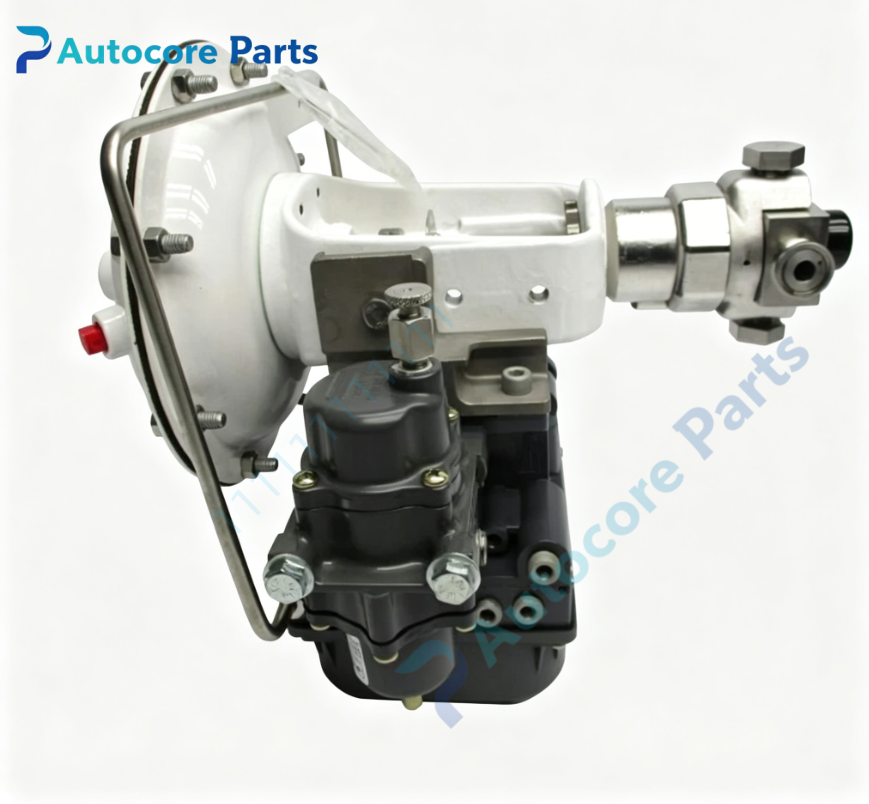

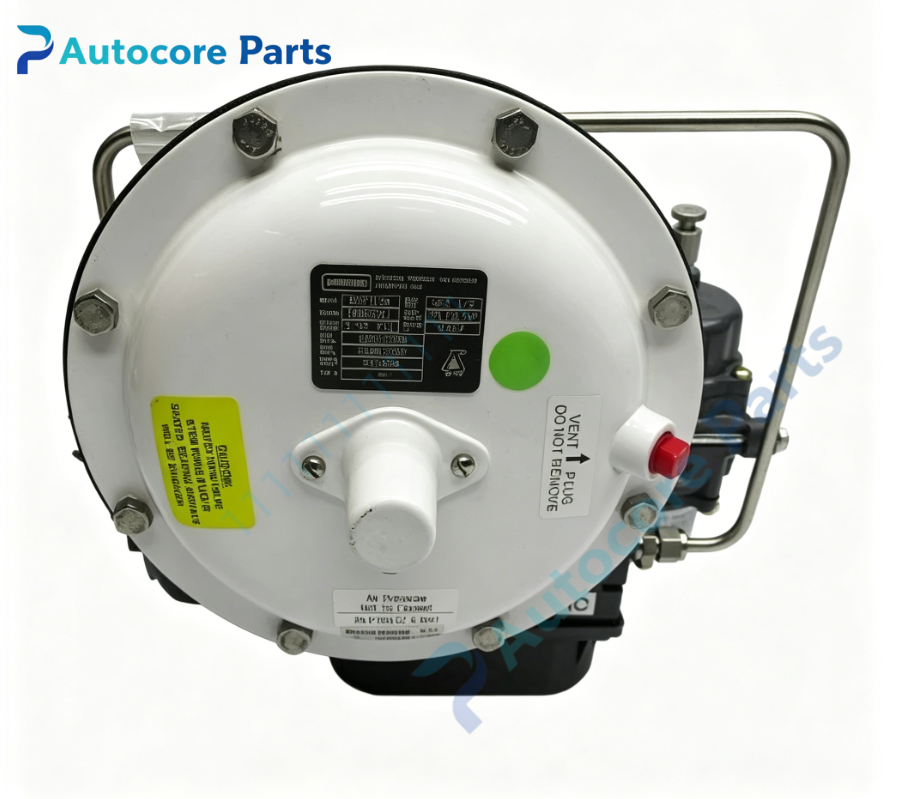

Fisher 83711SA Valve Spare Component

Technical Specifications

Model：83711SA Brand：Fisher Product Type: Control valve actuator spare component

Module Feature

Fisher 83711SA is precision spare component designed for Fisher pneumatic control valve actuator. It cooperates with Fisher actuator and DVC series digital valve controller to ensure stable valve stroke operation. It has anti-corrosion and wear-resistant performance. Widely applied in oil, gas, chemical and power plant process control valves. Working principle: Mechanical auxiliary transmission Onboard components: Precision mechanical parts, sealing elements, fixing fasteners

LED indicators

Not equipped

Hardware self-diagnosis

Visual inspection, continuity test, stroke movement inspection, sealing performance test

Programming software

No dedicated software required

Mechanical & Structure

Mounting: Installed inside valve actuator assembly Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE Status:Fisher control valve spare part

System compatibility

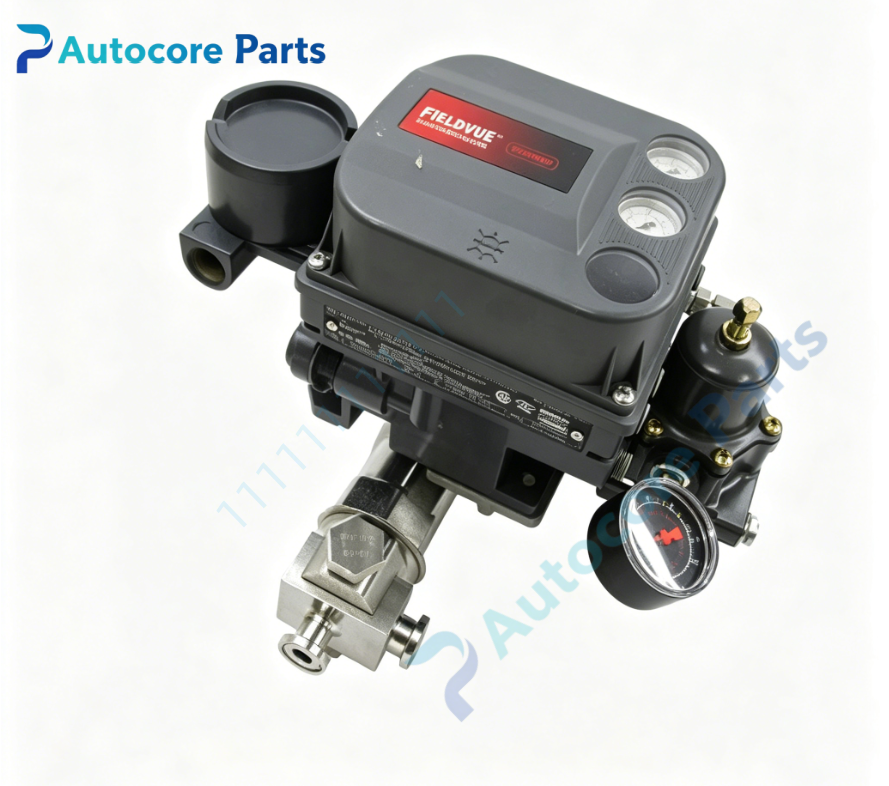

Compatible with Fisher pneumatic actuator and DVC6200 digital valve controller for industrial process control system.

Function

83711SA is valve actuator spare component manufactured by Fisher. It maintains the mechanical transmission and sealing integrity of the actuator assembly. It can reduce valve jitter and stroke deviation during modulating control. It is essential spare part for valve actuator maintenance and overhaul.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air supply. Disassemble actuator housing, replace the old 83711SA component. Check mechanical clearance and sealing condition. Reassemble actuator, restore instrument air and run valve stroke calibration test.

Interface

Actuator internal mounting structure, fixed mounting holes, no LED indicators on 83711SA.

Diagnostic

Valve stroke unstable: Worn spare component or loose fastener. Air leakage: Damaged sealing element. Valve sticking: Mechanical component deformation or foreign matter jam.

Product Brief

83711SA Fisher control valve actuator spare component,matched with Fisher actuator and DVC6200 positioner,used for industrial process control valve maintenance,valve spare part.
