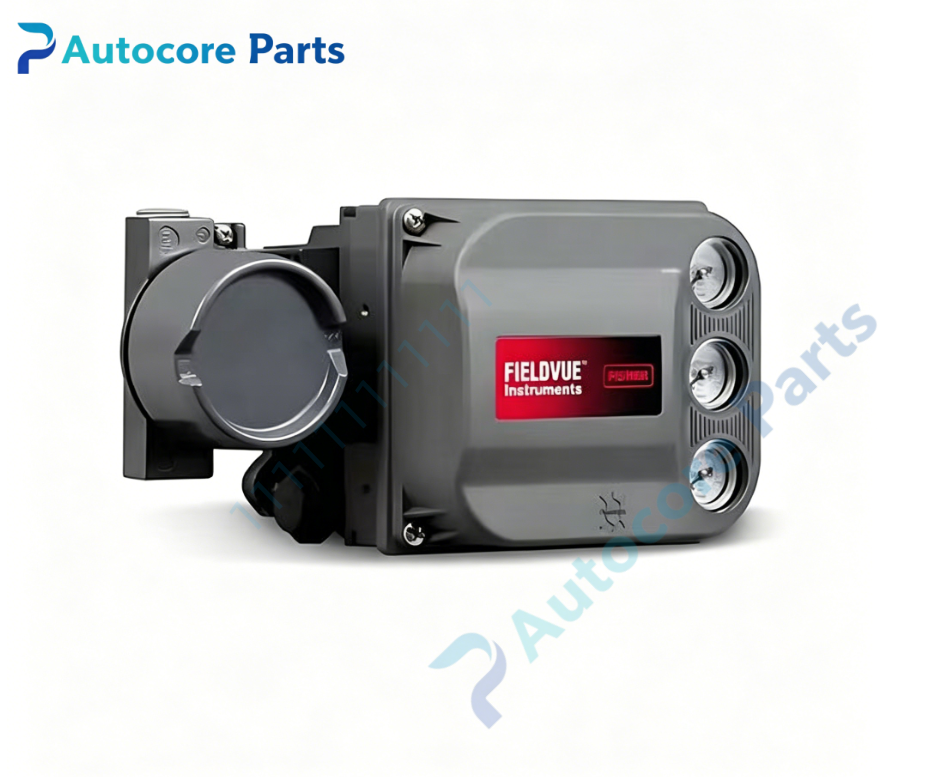

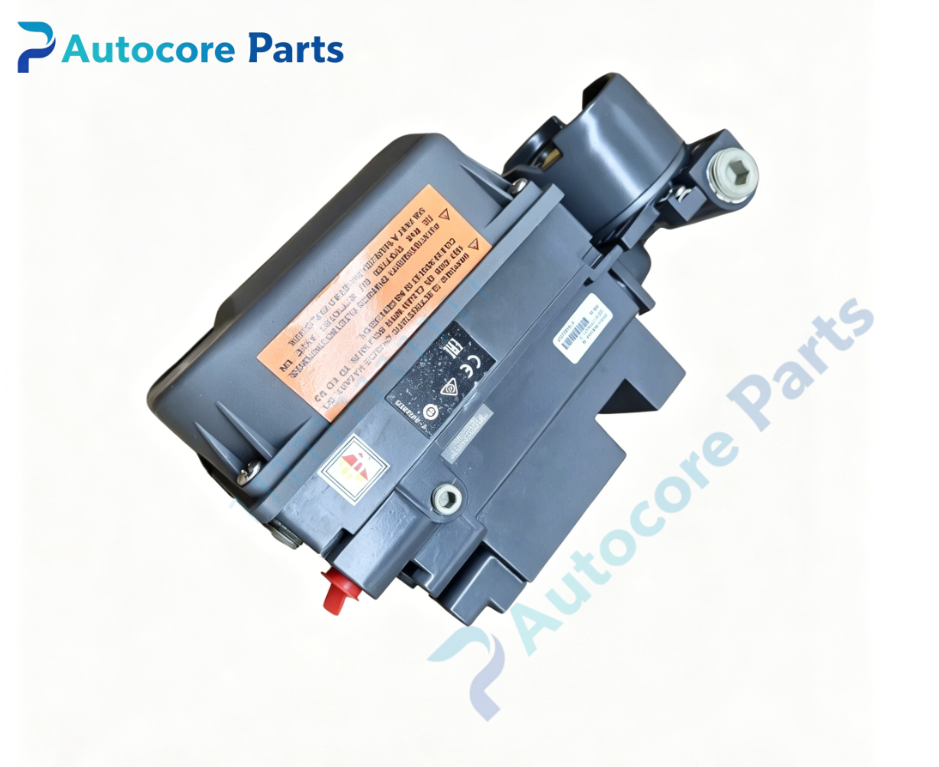

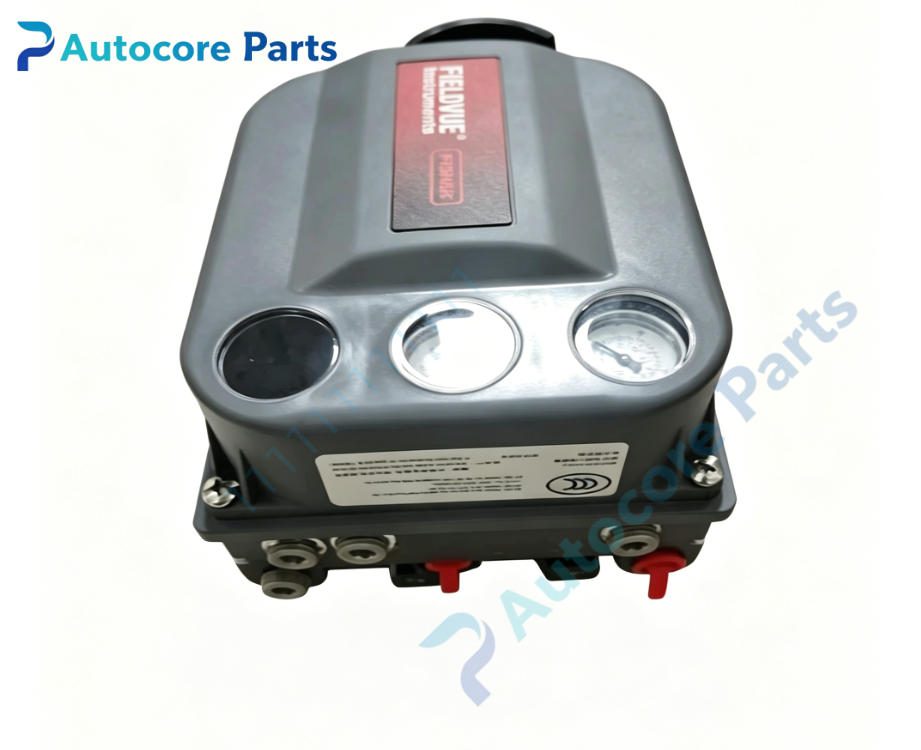

Fisher DVC6200 Digital Valve Controller

Technical Specifications

Model：DVC6200 Brand：Fisher Product Type: HART digital valve positioner

Module Feature

Fisher DVC6200 FIELDVUE is microprocessor-based digital valve controller. It converts 4-20mA electric signal into pneumatic output to drive valve actuator. It adopts non-contact linkage-less position feedback design without wearing parts. Fully encapsulated electronics provides vibration and corrosion resistance. Widely used in oil,gas,chemical and power plant process control valves. Working principle: Electro-pneumatic conversion Communication:HART Onboard components: Digital mainboard, two-stage pneumatic relay, non-contact position sensor, terminal block

LED indicators

Front panel LED indicators for power,status and fault alarm

Hardware self-diagnosis

Loop signal test, supply air pressure inspection, valve stroke calibration, valve signature diagnostic test

Programming software

AMS ValveLink software for configuration, calibration and advanced valve diagnostic

Electrical & Pneumatic Parameters

Input signal:4~20mA HART Supply air:20~150psi Application:Industrial process control valve

Mechanical & Structure

Mounting:Direct mount on valve actuator Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,ATEX,IECEx,SIL capable Status:Fisher FIELDVUE series smart positioner

System compatibility

Compatible with Fisher linear and rotary pneumatic actuators and control valves for industrial process control system.

Function

DVC6200 is smart digital valve controller manufactured by Fisher. It precisely regulates valve stroke according to 4-20mA control signal. It continuously monitors valve travel,air pressure and valve health status. It supports online valve diagnostics,partial stroke test and remote parameter setup via HART communication. It improves control accuracy and reduces valve maintenance downtime. It is widely used for modulating control valve in chemical,oil & gas and power industry.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and electric power. Mount positioner on valve actuator, connect instrument air tubing and 4-20mA HART signal cable. Perform auto calibration and stroke test. Restore power and air supply, run valve function and diagnostic inspection.

Interface

1/4"NPT pneumatic ports, 1/2"NPT electrical conduit port, HART two-wire signal connection on DVC6200.

Diagnostic

Valve not responding: Loss of 4-20mA signal or no instrument air supply. Large position deviation: Calibration drift or position sensor fault. Valve sticking alarm: Valve packing friction increase or mechanical jam.

Product Brief

DVC6200 Fisher FIELDVUE digital valve controller,used for industrial control valve pneumatic actuator positioning and online valve health monitoring,smart HART valve positioner.
