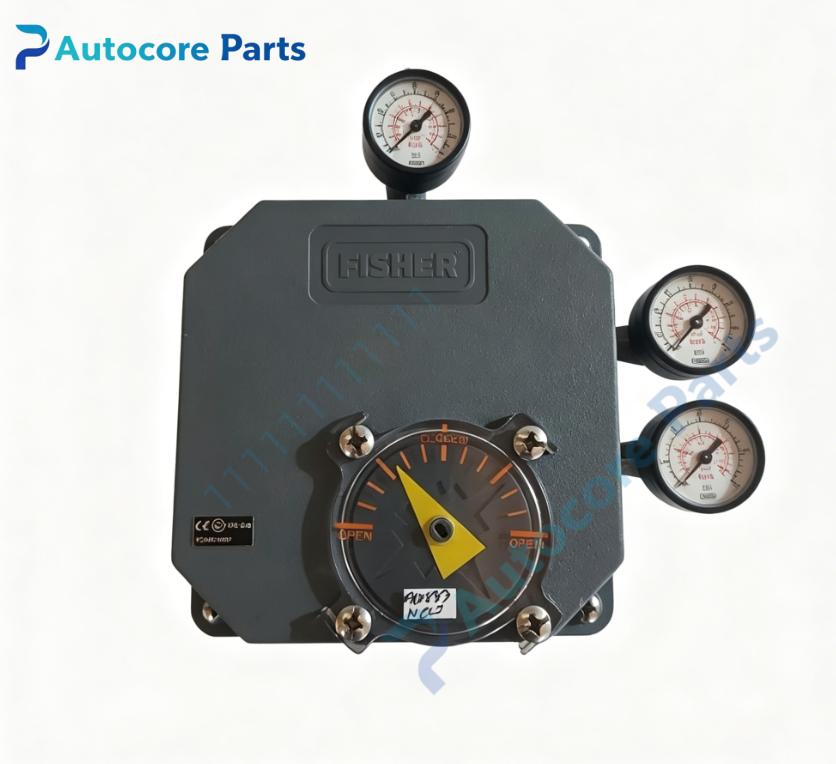

Fisher 3710 Pneumatic Valve Positioner

Technical Specifications

Model：3710 Brand：Fisher Product Type: Pneumatic rotary valve positioner

Module Feature

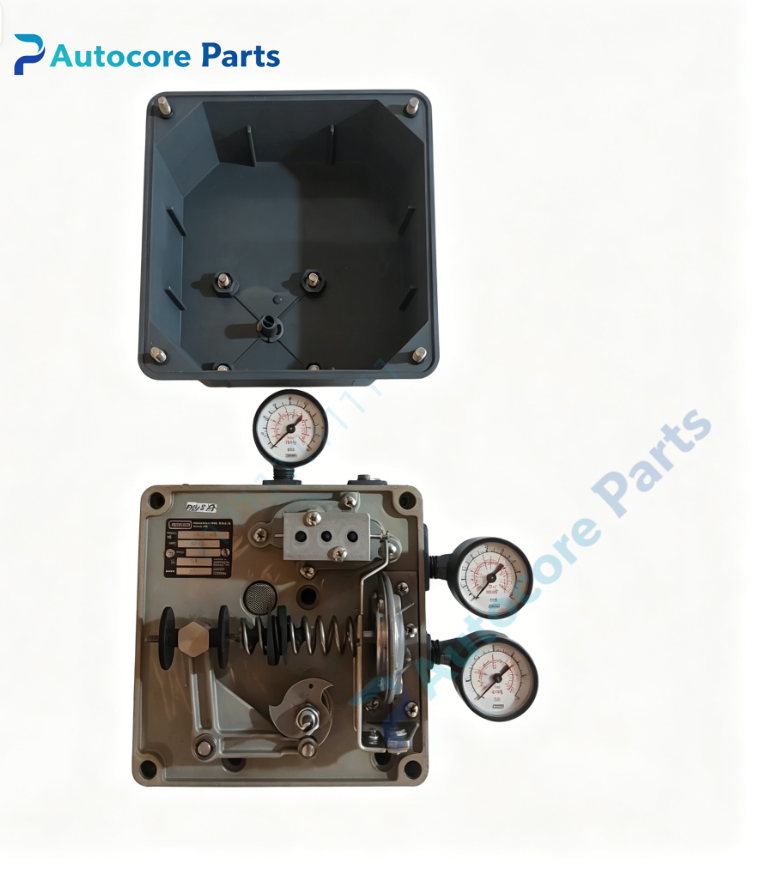

Fisher 3710 is spool valve type pneumatic positioner designed for Fisher rotary diaphragm and piston actuators. It converts 3~15psi pneumatic control signal to output air pressure to drive rotary actuator. It supports single-acting or double-acting configuration, zero/span adjustment and direct/reverse action switching. It features good linearity, low deadband and stable performance under vibration. Widely used for oil,gas,chemical and power plant rotary control valves. Working principle: Spool valve pneumatic feedback Onboard components: Spool valve assembly, feedback cam, pneumatic relay, pressure gauge ports, sealing gaskets

LED indicators

Not equipped

Hardware self-diagnosis

Supply air pressure inspection, zero & span calibration, rotary stroke test, air tightness leakage test

Programming software

No dedicated software required

Pneumatic Parameters

Input signal:3~15psi (0.2~1.0bar) pneumatic signal Supply air:20~150psi Application:Rotary control valve actuator

Mechanical & Structure

Mounting: Direct mount on rotary actuator Protection class:IP54

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,ATEX,IECEx Status:Fisher 3700 series pneumatic positioner

System compatibility

Compatible with Fisher rotary diaphragm and piston actuators for industrial process control system.

Function

3710 is pneumatic rotary valve positioner manufactured by Fisher. It compares pneumatic setpoint signal with actual rotary valve position and adjusts actuator air pressure to eliminate position deviation. It supports split range control and single/double acting switching. Spool valve structure ensures fast response and long service life. It is widely used for modulating rotary control valve in process industry.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air supply. Mount positioner on rotary actuator, connect instrument air tubing and signal tubing. Perform zero and span calibration and full rotary stroke test. Restore air supply and run valve function and leakage inspection.

Interface

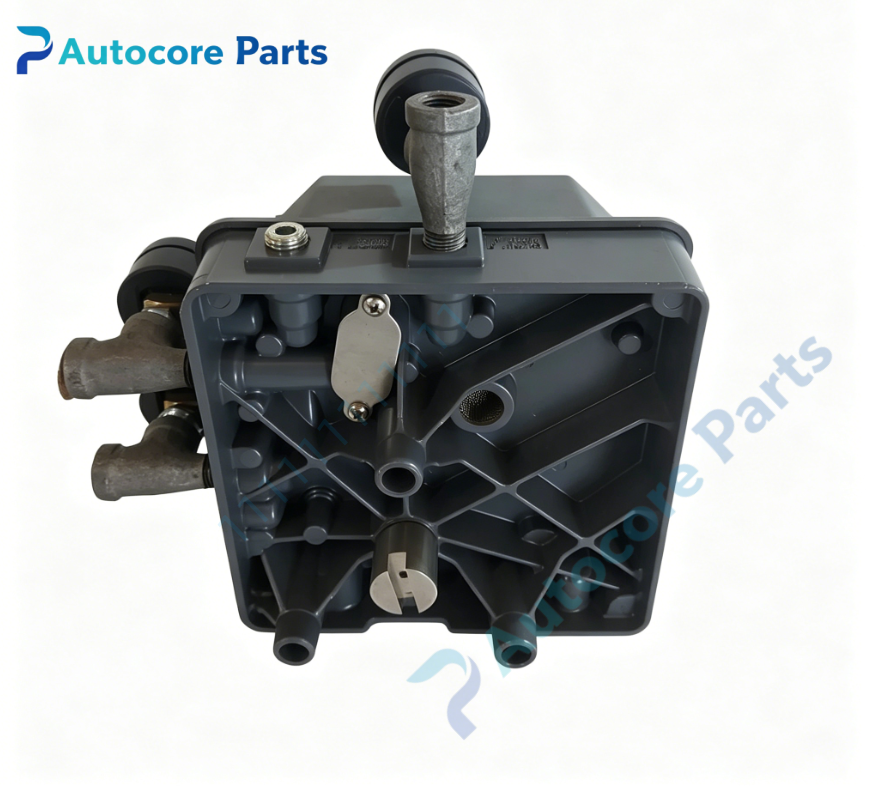

1/4"NPT pneumatic signal ports, pressure gauge ports, fixed mounting holes on 3710.

Diagnostic

Valve no rotation: Loss of supply air or blocked signal tube. Poor positioning accuracy: Zero/span drift or cam wear. Air leaking: Damaged gasket or loose tubing fitting.

Product Brief

3710 Fisher pneumatic rotary valve positioner,used for industrial rotary control valve actuator stroke positioning in oil,gas and chemical plant,pneumatic positioner spare part.
