Fisher 54.24003 Baumann 24003 3-Way Control Valve

Technical Specifications

Model：54.24003 Brand：Fisher Product Type: Baumann 24003 series three-way globe control valve

Module Feature

Fisher 54.24003 is Baumann 24003 series compact three-way control valve. It can realize fluid mixing or diverting service. Usually configured with DVC2000 smart digital valve positioner and 67CFR instrument air regulator. 4~20mA+HART signal communication. Compact body, good for small flow, light duty industrial process. Widely used in heating/cooling water, glycol and light chemical medium.

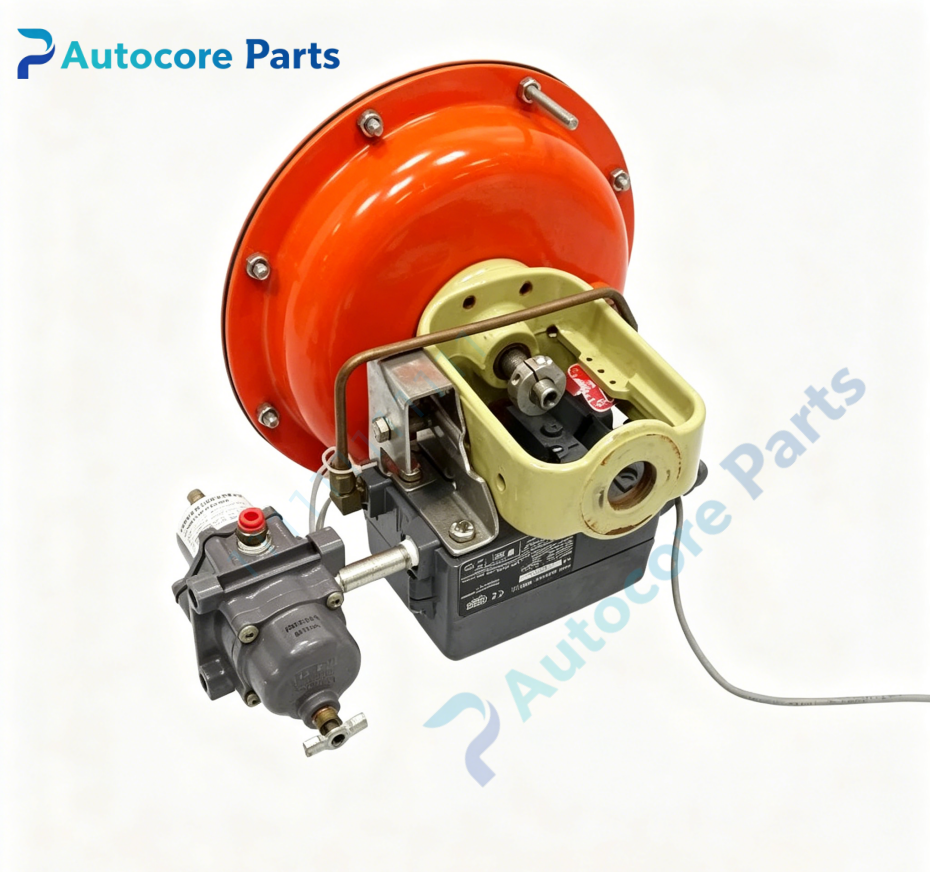

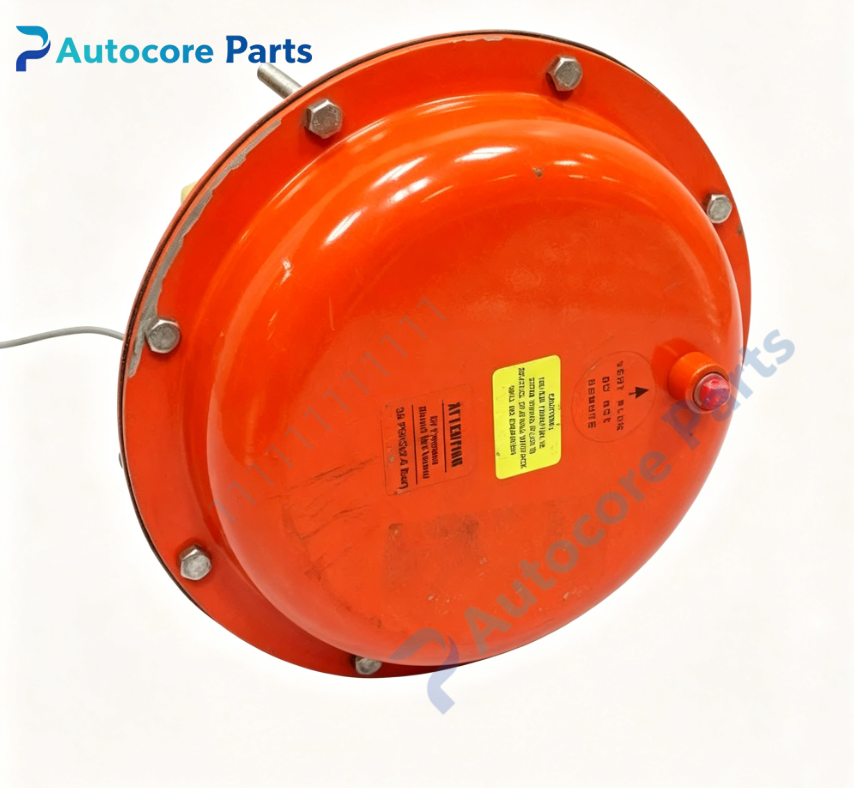

Working principle: Linear stroke movement to switch between 3 flow ports for mixing or diverting Onboard components: Stainless steel valve body, valve bonnet, plug & cage trim, seat ring, live loaded packing, pneumatic actuator, DVC2000 positioner, 67CFR air regulator

LED indicatorsStatus LED on DVC2000 positioner housing

Hardware self-diagnosis

Visual inspection, hydrostatic body test, seat leakage test, full stroke calibration, HART diagnostic, packing fugitive emission check

Programming software

ValveLink software for DVC2000 configuration and valve diagnostic

Pneumatic & Electrical Parameters

Input signal:4~20mA DC+HART Supply air:20~100psi Valve function:3-way mixing / diverting

Mechanical & Structure

Mounting: Pipeline flange or threaded connection Protection class:IP66

Environmental

Operating temperature:-20℃ ~ +180℃ Ambient humidity:5~95% non-condensing Certification:CE,ATEX,IECEx Status:Fisher Baumann 24003 series control valve

System compatibility

Matched with Fisher pneumatic diaphragm actuator and DVC2000 digital positioner for HART distributed control system.

Function

54.24003 is compact three-way modulating control valve manufactured by Fisher Baumann. It is designed for mixing two incoming streams or diverting one inlet flow to two outlets. Digital positioner provides precise travel control and online valve diagnostics. Suitable for temperature control of heating and cooling loop. It is widely used in pharmaceutical, food, chemical and HVAC process system.

Installation

Follow lockout/tagout safety procedure before installation. Isolate process pipeline and depressurize. Install valve according to marked flow direction. Mount actuator and DVC2000 positioner, connect instrument air and 4-20mA+HART cable. Perform auto-calibration and full stroke test, then run seat leakage and diagnostic test.

Interface

Flange / NPT threaded process connection, 1/4"NPT instrument air ports, electrical signal terminal block, status LED on positioner of 54.24003.

Diagnostic

Valve cannot switch flow path: Actuator air supply fault or positioner calibration error. Internal leakage: Seat ring or plug sealing surface damage. HART communication error: Signal wiring fault or electronic board failure. High packing leakage: Packing aging or improper packing tightening.

Product Brief

54.24003 Fisher Baumann 24003 compact three-way control valve,equipped with DVC2000 HART digital positioner,for industrial liquid mixing or diverting modulating control,small flow 3-way globe control valve.
