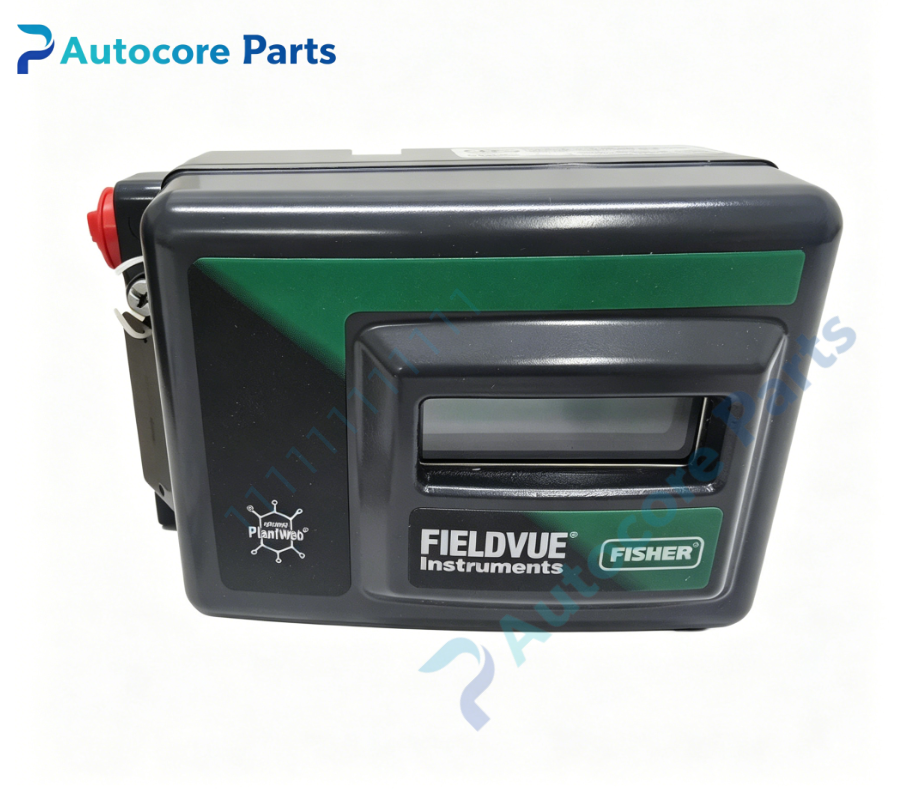

Fisher DVC2000 Digital Valve Controller

Technical Specifications

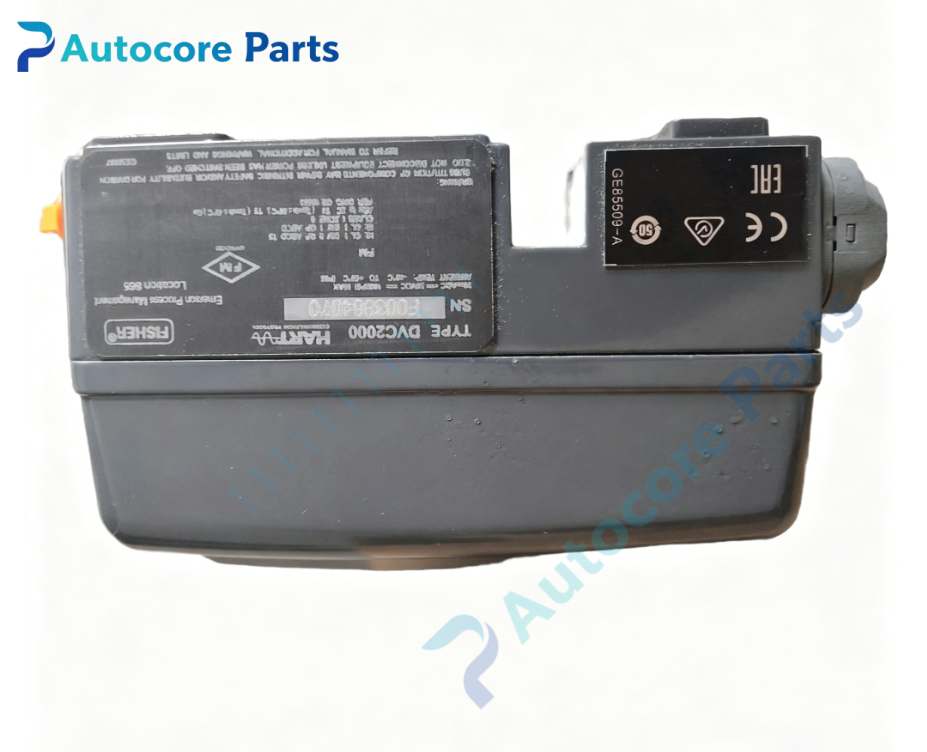

Model：DVC2000 Brand：Fisher Product Type: HART digital valve positioner

Module Feature

Fisher DVC2000 FIELDVUE is compact microprocessor-based digital valve controller. It converts 4-20mA control signal into pneumatic output to drive valve actuator. Equipped with local LCD display for on-site configuration and calibration. Optional built-in limit switches and stem position transmitter. Widely applied in chemical,oil & gas,power and petrochemical process control valves. Working principle: Electro-pneumatic conversion Communication:HART Onboard components: Main control board, I/P converter, pneumatic relay, position sensor, terminal block

LED indicators

LCD display with status LED indicators for power, fault and alarm status

Hardware self-diagnosis

4-20mA loop test, supply air inspection, valve stroke calibration, valve signature diagnostic test

Programming software

AMS ValveLink software for configuration, calibration and advanced valve diagnostic

Electrical & Pneumatic Parameters

Input signal:4~20mA HART Supply air:20~150psi Application:Industrial pneumatic control valve actuator

Mechanical & Structure

Mounting:Direct mount on Fisher GX,657,667 series actuator Protection class:IP66

Environmental

Operating temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,ATEX,IECEx Status:Fisher FIELDVUE series smart positioner

System compatibility

Compatible with Fisher 657/667/GX pneumatic actuators and globe control valves for industrial process control system.

Function

DVC2000 is smart digital valve controller manufactured by Fisher. It receives 4-20mA control signal and precisely adjusts actuator air pressure to position valve stem. It monitors valve travel, supply air pressure and valve health continuously. It supports local LCD operation and remote HART communication for parameter setup and valve diagnostics. It is suitable for general process modulating control valve.

Installation

Follow lockout/tagout safety procedure before installation. Cut off instrument air and electric power. Mount positioner on valve actuator, connect instrument air tubing and 4-20mA HART signal cable. Run auto calibration and full stroke test. Restore power and air supply, inspect valve operation and alarm function.

Interface

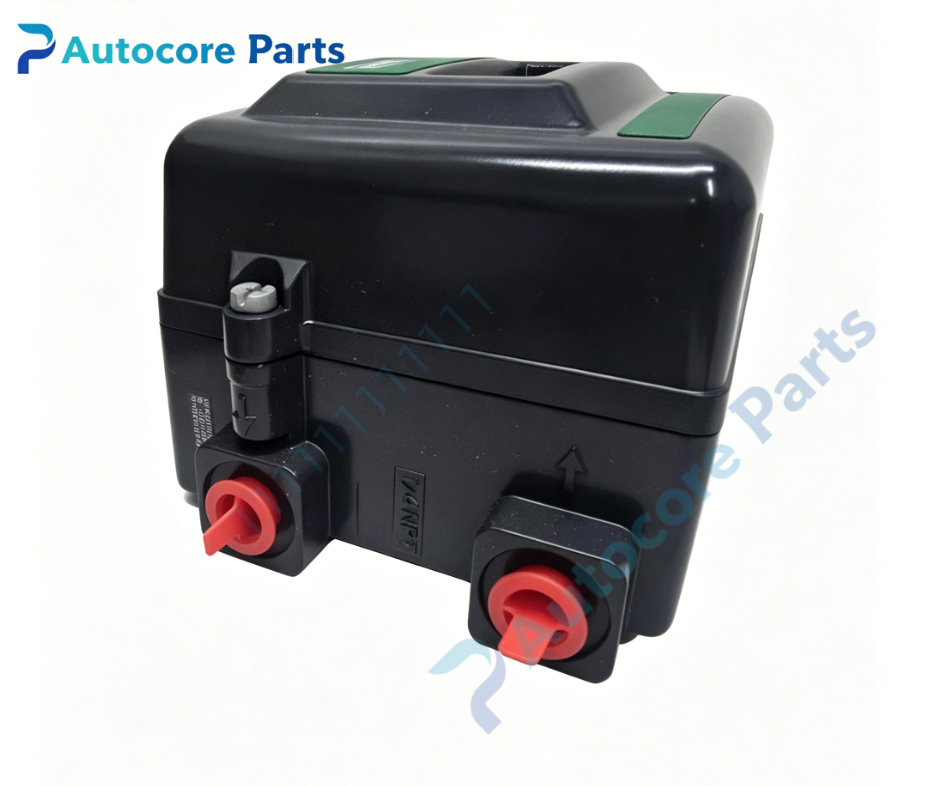

1/4"NPT pneumatic ports, 1/2"NPT electrical conduit port, HART two-wire signal terminals on DVC2000.

Diagnostic

No valve movement: Safety interlock triggered or loss of 4-20mA signal. Poor positioning accuracy: Calibration drift or position sensor fault. High air consumption: Internal pneumatic relay wear.

Product Brief

DVC2000 Fisher FIELDVUE digital valve controller,matched with Fisher pneumatic actuator,used for industrial process control valve positioning and online diagnostic,smart HART valve positioner.
