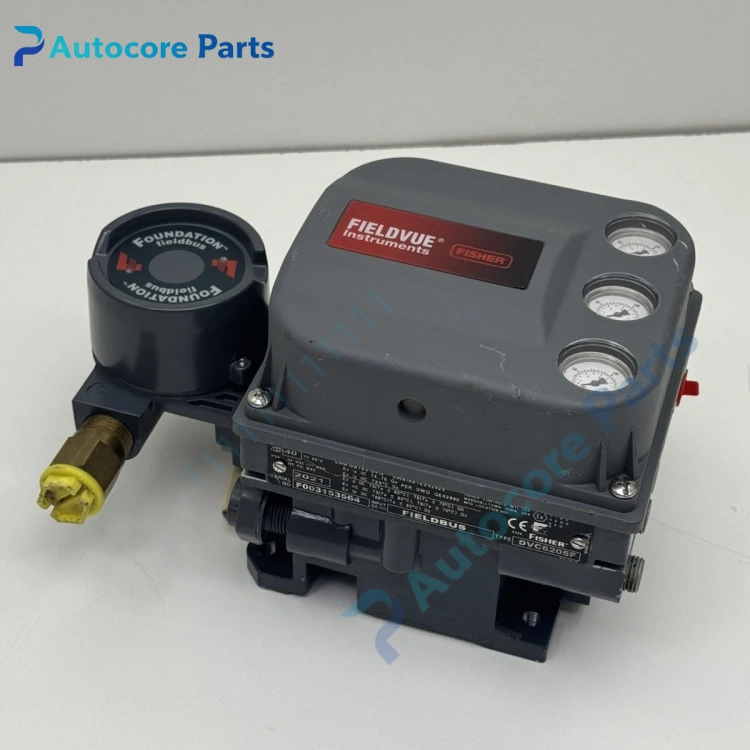

Fisher DVC6205F FIELDVUE Remote Digital Valve Controller Unit

Feature & Principle

It receives bus control commands and outputs pneumatic signal to drive the valve actuator. The non-contact Hall feedback head DVC6215 feeds back real valve stroke position to form closed-loop positioning. Built-in valve performance diagnostic function, supports online PST partial stroke test, suitable for valves that cannot install positioner directly on site.

Specifications

Model: DVC6205F Brand: Fisher (Emerson) Communication: Foundation Fieldbus Configuration: Split remote installation, pair with DVC6215 feedback unit Air supply: 1.4 ~ 9.5 bar Action: Single / double acting selectable Housing: Aluminum alloy, explosion-proof Safety rating: SIL3 Certification: ATEX, IECEx, FM, CE

Components & Diagnostics

Electronics and pneumatic amplifier assembly, bus terminal block, pressure gauge interface, explosion-proof housing. Common faults: air supply contamination, bus communication drop, pneumatic amplifier blockage, feedback signal loss with DVC6215.

Product Brief

DVC6205F remote valve controller, Fisher final control spare widely used for petrochemical, refinery high-temperature and high-vibration regulating valves.
