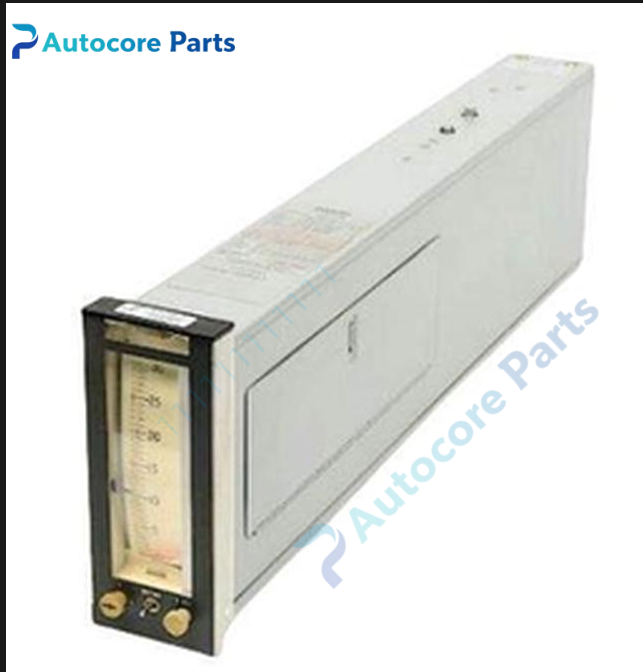

Foxboro 130M‑N5‑D Rack‑Mount Pneumatic Controller

Technical Specifications

Model:130M‑N5‑D

Brand:Foxboro

Series:130 Consotrol

Control algorithm:Proportional‑Derivative PD

Action type:D=Direct‑acting

Input signal:3‑15psi pneumatic

Output signal:3‑15psi pneumatic

Instrument air supply:20psi nominal

Mounting:101/102 instrument rack mounting

Structure:removable auto‑manual unit,quick‑disconnect pneumatic jack with check‑valve

Transfer feature:bumpless / balanceless auto‑manual transfer

Proportional band:5‑500% adjustable

Derivative time:0.01‑50 minutes adjustable

Air consumption:0.5m³/h(auto mode),1.0m³/h(manual mode)

Zero drift:max 0.35% span per 1psi supply pressure variation

Protection class:IP20(rack‑side)

Operating temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

130M‑N5‑D direct‑acting PD pneumatic controller performs closed‑loop regulation for pressure,flow and temperature loops. Direct‑acting output rises when process variable rises. Auto‑manual module can be pulled out without interrupting running loop. Built‑in check‑valve avoids air leakage during module removal. Bumpless transfer prevents output shock during mode switching.

Product Brief

130M‑N5‑D belongs to Foxboro 130 Consotrol legacy pneumatic family,obsolete original spare part. Requires clean dry 20psi instrument air and matching instrument rack base. Widely used for original Foxboro automation equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation今天 14:14
