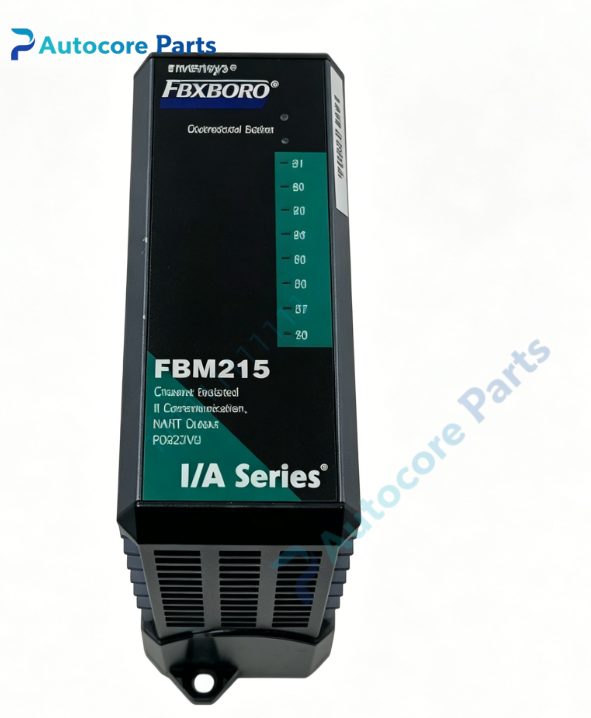

Foxboro FBM215 HART Communication Output Interface Fieldbus Module

Technical Specifications

Model:FBM215(P0922VU)

Brand:Foxboro

System compatibility:I/A Series DCS Compact‑200‑series fieldbus I/O subsystem,works with FCP/FCM controller,redundant‑pair counterpart FBM218,matched with corresponding termination assembly and pre‑terminated cable assembly

Function:Compact‑form‑factor 8‑channel per‑channel galvanic‑isolated HART‑capable analog output fieldbus module,each channel outputs 4‑20.4mA analog control signal or superimposed HART FSK digital signal,per‑channel independent HART modem for bidirectional communication with HART valve positioners and HART current‑input actuators,D/A conversion,supports HART universal,common‑practice and device‑specific commands,does not support HART burst mode,max two HART digital messages per‑channel per second,configurable rate‑of‑change‑limit and fail‑safe output‑state parameters

Installation:Compact‑200‑series baseplate‑mount installation,mated with dedicated Compact‑200‑series baseplate and matched termination assembly;can form redundant hot‑standby configuration with FBM218 on adjacent baseplate slots

Output channel:8‑channel 4‑20.4mA analog output,true per‑channel galvanic isolation,max 550Ω field load resistance per‑channel,output current limited to approx 25mA for short‑circuit protection

Circuit feature:High‑precision D/A conversion,per‑channel over‑voltage‑over‑current protection,output‑loop fault detection,complies with HCF_SPEC‑54 HART physical‑layer standard,1200 baud half‑duplex HART communication,CRC and parity check for communication data

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,compact mechanical outline for cabinet space‑saving deployment,supports redundant pairing with FBM218 for critical‑loop applications

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status,HART device diagnostic data and output‑loop fault status passed to DCS system

Power supply:24VDC via Compact‑200‑series baseplate backplane,max 7W power consumption typical

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:‑20℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.32kg

Dimensions:45mm ×110mm ×115mm

Certification:CE,UL

Built‑in function

FBM215 compact HART analog output module converts DCS control commands to 4‑20mA output current for field HART valve positioners and current‑input actuators for Foxboro I/A‑Series DCS system. It adopts true per‑channel galvanic‑isolation architecture to eliminate cross‑channel ground‑loop interference. Independent per‑channel HART modem realizes bidirectional parameter reading‑writing and diagnosis for HART field devices without extra external multiplexer. Output‑loop fault detection quickly identifies open‑circuit and short‑circuit wiring conditions. Hot‑swap supports online module replacement without system shutdown,widely applied for valve‑position‑control‑loop maintenance in petrochemical,chemical and power‑plant facilities

Product Brief

FBM215(P0922VU) belongs to Foxboro I/A Series legacy DCS compact‑200‑series‑per‑channel‑isolated‑HART‑analog‑output spare‑part family,obsolete original compact‑form‑factor 8‑channel HART‑communication‑output‑interface module component. Must match with Compact‑200‑series dedicated baseplate and matched termination assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
