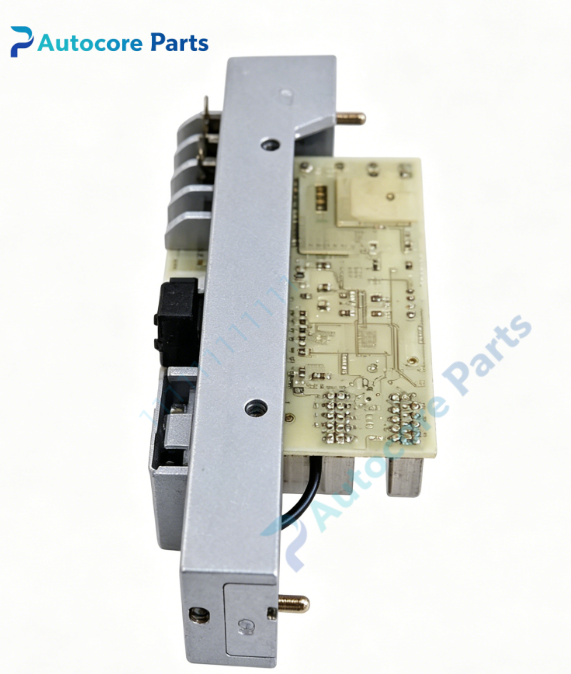

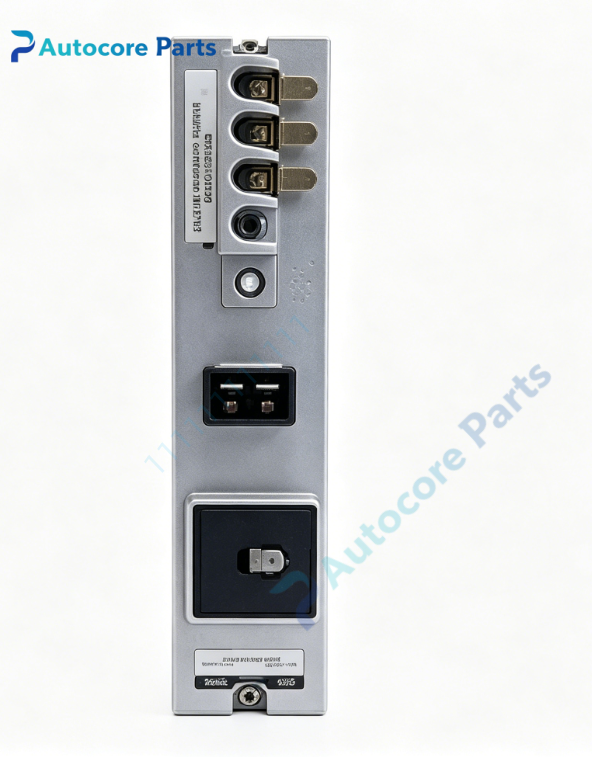

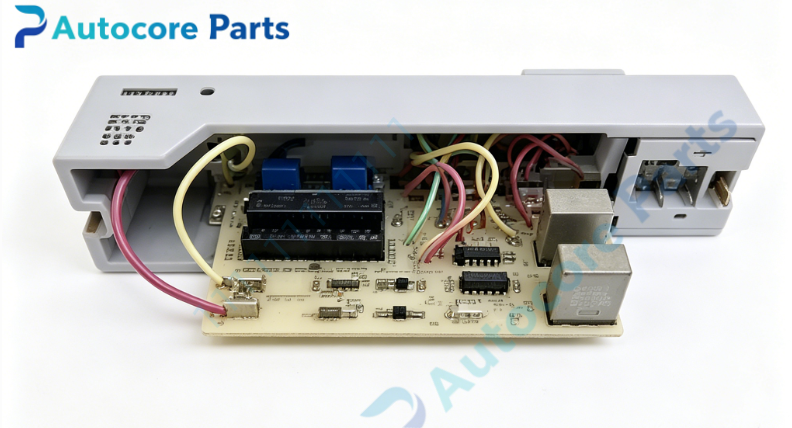

Foxboro 2AX+DP10 Spec‑200 Power Distribution Module

Technical Specifications

Model:2AX+DP10

Brand:Foxboro

System compatibility:Spec‑200 analog DCS system

Function:Regulated backplane power distribution for Spec‑200 rack‑mount modules

Installation:Standard Spec‑200 rack slot,direct backplane bus connection

Input power:24VDC nominal system power input

Output:Multiple regulated DC rails for rack internal circuit boards

Protection:Built‑in over‑current,over‑voltage and short‑circuit electronic protection

Diagnostic:On‑board LED indicators for power status and fault alarm

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Metal shielded rack‑mount housing,vibration‑resistant mechanical structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.52kg

Dimensions:34mm × 126mm × 142mm

Certification:CE,UL

MTBF:>95000 hours

Built‑in function

2AX+DP10 power distribution module delivers stabilized multi‑rail DC power supply to all plug‑in cards within Spec‑200 instrument rack. Integrated electronic protection cuts off output under abnormal conditions to avoid damage to adjacent modules. LED visual diagnosis helps field technicians quickly locate power‑related faults,ensures stable operation of analog control loops in petrochemical and power‑plant sites.

Product Brief

2AX+DP10 belongs to Foxboro Spec‑200 legacy DCS spare‑part family,obsolete original automation component. It must be installed inside matching Spec‑200 rack frame. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
