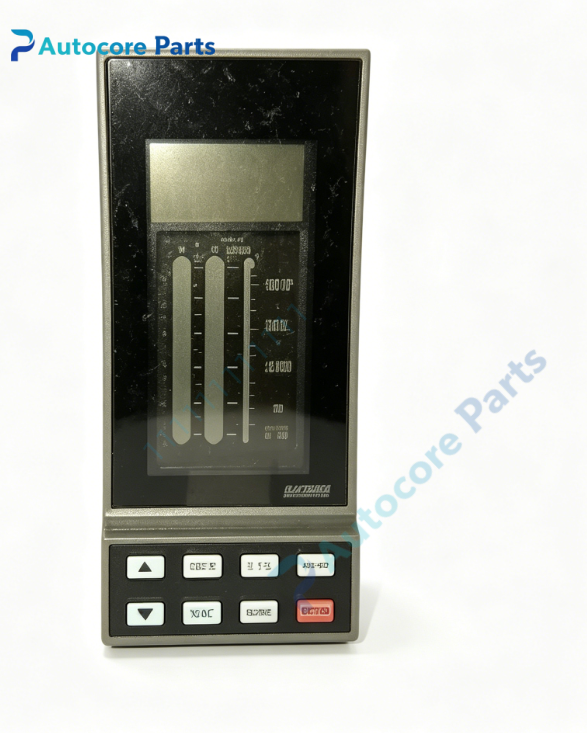

Foxboro 760ISB‑A Single‑Loop PID Controller Module

Technical Specifications

Model:760ISB‑A

Brand:Foxboro

System compatibility:760 Series process control system

Function:Independent single‑loop closed‑loop PID regulation,local parameter tuning,auto‑manual operation switching

Installation:Standard rack‑mount slot,direct backplane bus connection

Control algorithm:Proportional‑Integral‑Derivative PID

Input signal:4‑20mA analog process variable input

Output signal:4‑20mA analog control output for field actuators

Operation feature:Bumpless auto‑manual transfer,prevents output shock during mode switching

Proportional band:5‑500% adjustable

Integral time:0.01‑50 minutes adjustable

Derivative time:0.01‑50 minutes adjustable

Diagnostic:On‑board LED indicators for power status,communication link and loop alarm signal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Metal shielded rack‑mount housing,anti‑vibration mechanical structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.50kg

Dimensions:34mm × 126mm × 142mm

Certification:CE,UL

MTBF:>87000 hours

Built‑in function

760ISB‑A single‑loop PID controller executes closed‑loop regulation for pressure,flow,temperature and liquid‑level process loops. It supports local manual set‑point modification and full PID parameter on‑site adjustment. Bumpless auto‑manual switching avoids output impact during mode change. Metal shield housing suppresses industrial electromagnetic interference,ensures stable loop running for continuous‑process sites. LED status indicators help technicians rapidly locate power and communication faults for on‑site troubleshooting.

Product Brief

760ISB‑A belongs to Foxboro 760 Series legacy control spare‑part family,obsolete original automation component. It shall be installed inside matching instrument rack with correct 4‑20mA field signal wiring. Widely used for original Foxboro automation equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
