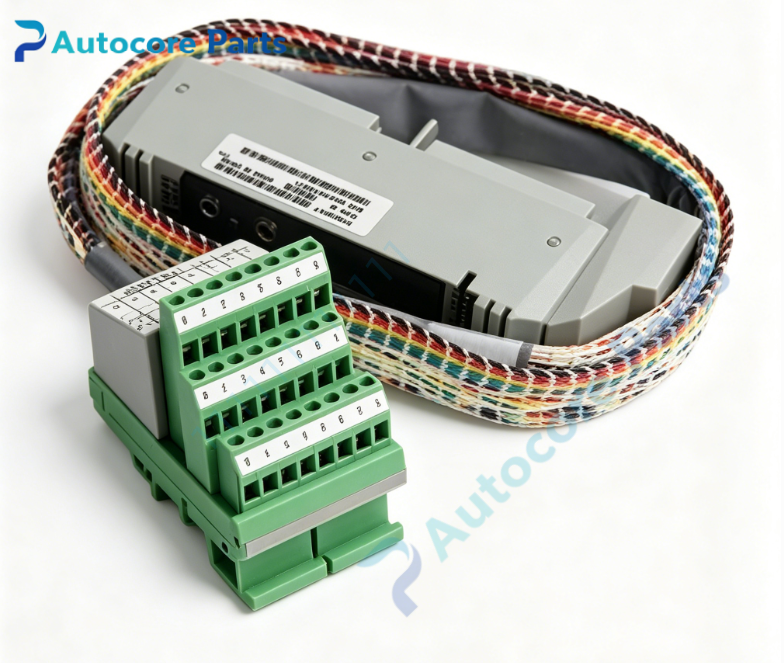

Foxboro AD207AV Spec‑200 Analog Isolator Module

Technical Specifications

Model:AD207AV

Brand:Foxboro

System compatibility:Spec‑200 analog DCS system

Function:Analog signal galvanic isolation and conditioning,suppress ground‑loop noise for process control signals

Installation:Standard Spec‑200 rack‑slot installation,direct backplane bus connection

Signal processing:Isolation for 4‑20mA or 0‑10V analog process signals

Isolation strength:1500Vrms dielectric withstand voltage between field‑side and rack‑side circuit

Accuracy:±0.12% full‑scale signal transmission

Protection:Built‑in transient surge and over‑voltage input protection

Diagnostic:On‑board LED indicators for module power status and internal fault alarm

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Metal shielded plug‑in assembly with anti‑vibration mechanical reinforcement

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.48kg

Dimensions:34mm × 126mm × 142mm

Certification:CE,UL

MTBF:>89000 hours

Built‑in function

AD207AV analog isolator module provides electrical galvanic isolation between field‑side analog loops and Spec‑200 instrument rack backplane circuit. It effectively eliminates measurement deviation caused by ground‑loop interference in complex industrial sites. Shielded metal structure restrains electromagnetic interference,ensures accurate transmission of pressure,flow and temperature analog signals. LED status indicators help field technicians quickly identify power and module abnormal conditions for on‑site troubleshooting,widely applied for chemical,petrochemical and power‑plant continuous‑running control loops.

Product Brief

AD207AV belongs to Foxboro Spec‑200 legacy DCS spare‑part family,obsolete original plug‑in automation component. Must be fitted inside matching Spec‑200 instrument rack with proper field analog wiring. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation
