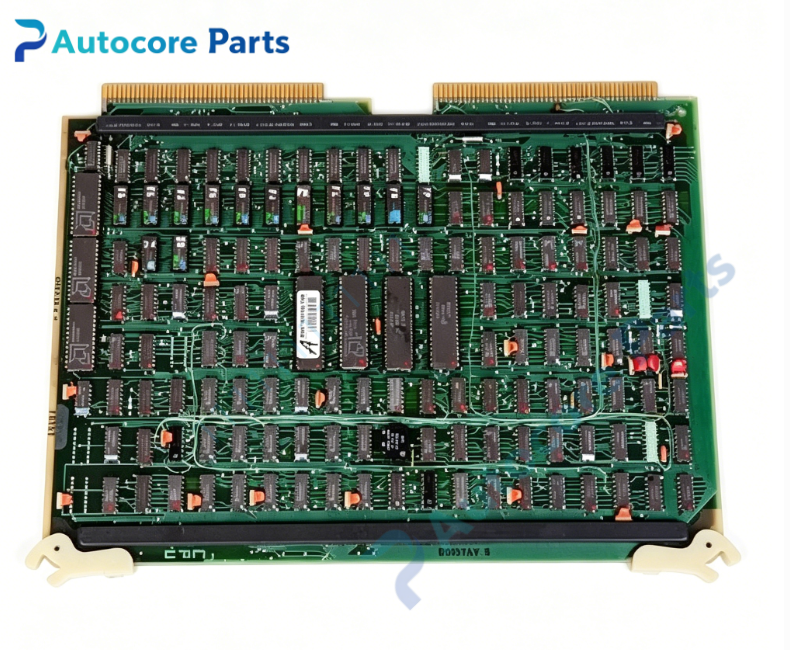

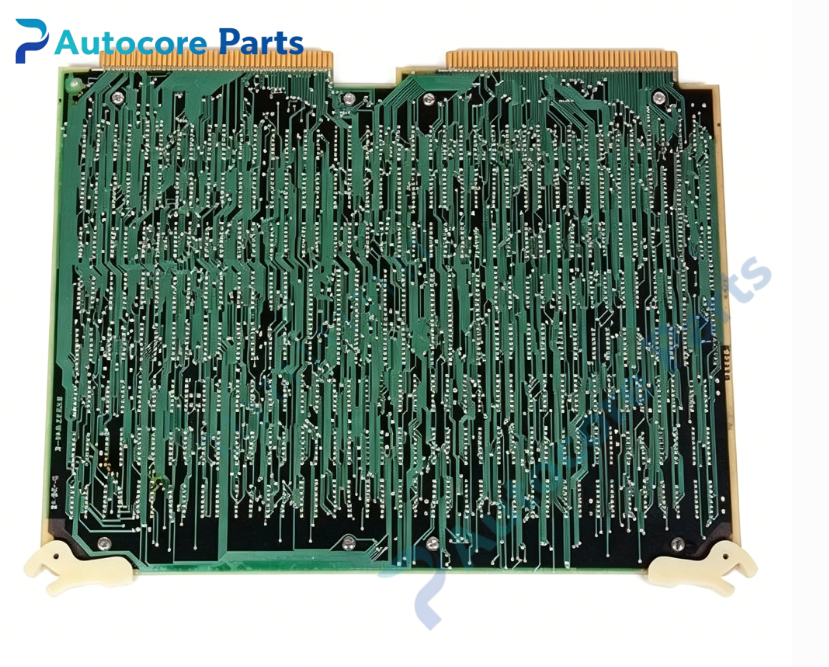

Foxboro D0137AV Processor Circuit Board

Technical Specifications

Model:D0137AV

Brand:Foxboro

System compatibility:I/A Series DCS legacy controller hardware

Function:Processor circuit board,undertakes microprogram logic and arithmetic processing tasks for early‑generation I/A‑Series control node

Installation:Rack slot insertion,ISA‑style edge‑connector interface connecting system backplane

Core chip:4pcs AMD AM2901B 4‑bit bipolar microprocessor slice,3pcs AMD AM2909 microprogram sequencer

Clock oscillator:10.0MHz crystal oscillator

Bus interface:Parallel system backplane edge connector

Protection:Built‑in transient surge absorption for logic power circuit

Diagnostic:Power‑on self‑test logic circuit,indicator test points on PCB

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Bare multilayer PCB board,gold‑plated edge connector,anti‑vibration mechanical fixture

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.47kg

Dimensions:338mm ×216mm ×18mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

D0137AV processor circuit board adopts AMD bipolar slice processor architecture,executes microprogram‑based arithmetic and logic processing for early‑generation Foxboro I/A‑Series DCS control node. It completes underlying instruction decoding,logic operation and data interaction with system backplane bus. Gold‑plated edge‑connector guarantees stable signal transmission under cabinet vibration environment. Power‑on self‑test circuit completes hardware initialization detection after power‑on,widely applied for legacy I/A‑Series controller hardware replacement and maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

D0137AV belongs to Foxboro I/A Series legacy DCS processor‑board spare‑part family,obsolete original rack‑inserted circuit‑board component. Must be fitted in matching I/A‑Series instrument rack slot. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation and handling of bare circuit board.
