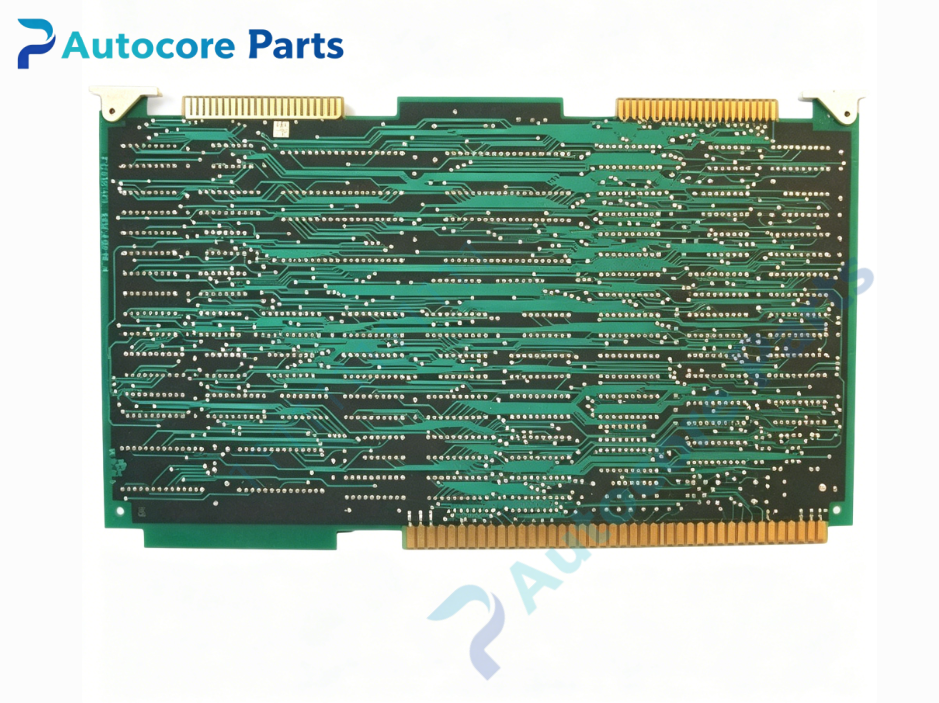

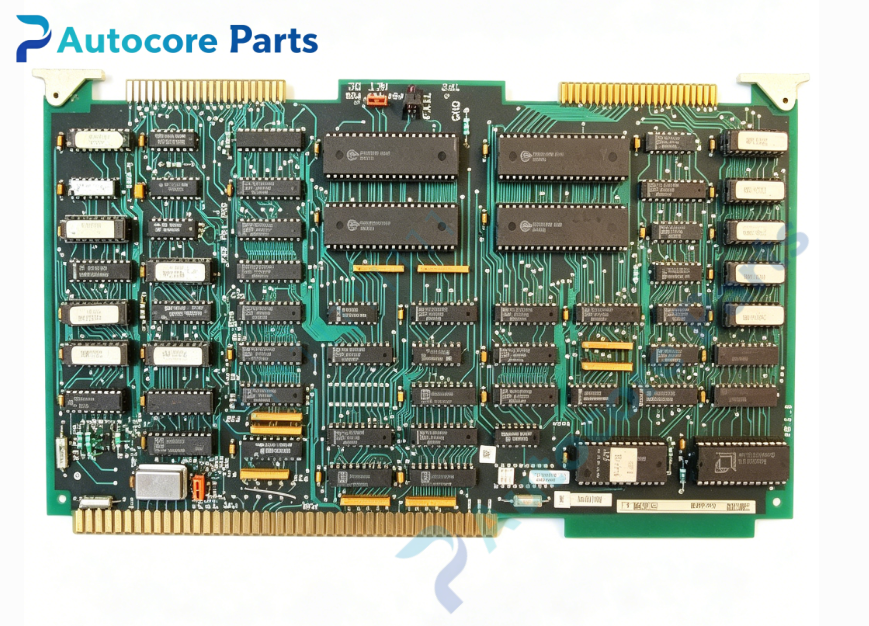

Foxboro D0148MP FBM Fieldbus Communication Interface Board

Technical Specifications

Model:D0148MP

Brand:Foxboro

System compatibility:I/A Series DCS legacy system,fieldbus physical‑layer interface board for connecting control node and FBM I/O subsystems

Function:Fieldbus physical‑layer signal transceiver board,completes electrical level conversion and signal isolation between controller backplane bus and FBM fieldbus link

Installation:Rack slot insertion,gold‑plated edge‑connector interface connecting system backplane

Circuit feature:Built‑in signal isolation circuit for fieldbus and controller logic side

Protection:Transient surge absorption for fieldbus signal lines

Diagnostic:On‑board test‑point for signal measurement,power‑on self‑diagnosis logic circuit

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Multilayer bare PCB board,gold‑plated edge‑connector,rack mechanical retention fixture

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.46kg

Dimensions:338mm ×216mm ×18mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

D0148MP FBM fieldbus communication interface board serves as physical‑layer signal conversion hardware for legacy Foxboro I/A‑Series DCS system. It realizes bidirectional signal transmission between controller backplane and remote FBM fieldbus I/O subsystems. Isolation circuit suppresses industrial field ground‑loop interference and noise. Surge absorption circuit protects internal logic circuit from field‑side transient impact. Reserved test‑points facilitate on‑site signal troubleshooting,widely applied for fieldbus communication link fault replacement maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

D0148MP belongs to Foxboro I/A Series legacy DCS communication‑board spare‑part family,obsolete original rack‑slot inserted PCB component. Must be fitted in matching I/A‑Series instrument rack slot. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during bare circuit‑board installation and handling.
