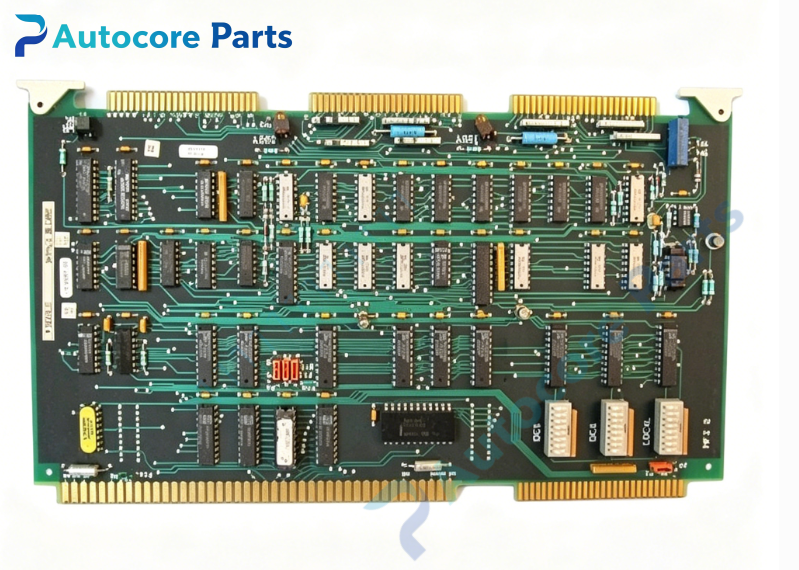

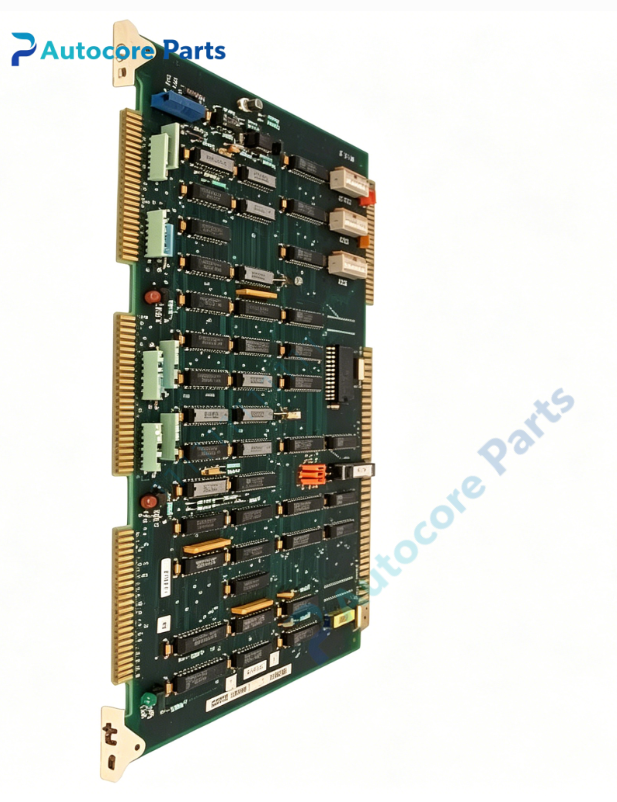

Foxboro D0148MU‑A FBM Fieldbus Communication Interface Board

Technical Specifications

Model:D0148MU‑A

Brand:Foxboro

System compatibility:I/A Series DCS legacy system,revised hardware version for FBM fieldbus physical‑layer connection

Function:Fieldbus physical‑layer signal transceiver board,completes electrical level conversion and galvanic isolation between controller backplane bus and remote FBM fieldbus link

Installation:Rack slot insertion,gold‑plated edge‑connector interface connecting system backplane

Circuit feature:Enhanced signal isolation circuit between field‑side fieldbus and controller internal logic

Protection:Transient surge absorption for each fieldbus signal line

Diagnostic:On‑board test‑point for signal measurement,power‑on self‑diagnosis logic circuit

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Multilayer bare PCB board,gold‑plated edge‑connector,rack mechanical retention fixture

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.46kg

Dimensions:338mm ×216mm ×18mm

Certification:CE,UL

MTBF:>82000 hours

Built‑in function

D0148MU‑A FBM fieldbus communication interface board is revised hardware variant of D0148MP for legacy Foxboro I/A‑Series DCS system. It realizes bidirectional signal transmission between controller backplane and remote FBM fieldbus I/O subsystems. Enhanced isolation circuit restrains ground‑loop interference and industrial noise from field side. Surge absorption circuit protects internal logic from transient voltage impact. Reserved test‑points support on‑site signal troubleshooting,widely applied for fieldbus communication link fault replacement maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

D0148MU‑A belongs to Foxboro I/A Series legacy DCS communication‑board spare‑part family,obsolete original rack‑slot inserted PCB component. Must be fitted in matching I/A‑Series instrument rack slot. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during bare circuit‑board installation and handling.
