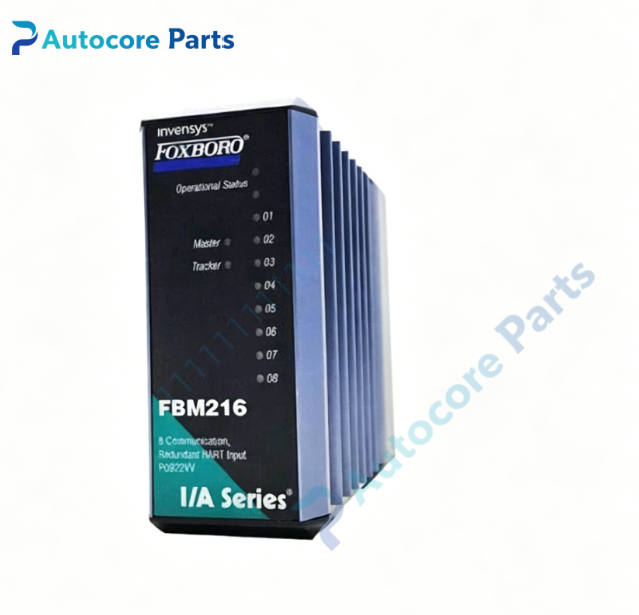

Foxboro FBM216 Redundant‑Ready HART Communication Input Fieldbus Module

Technical Specifications

Model:FBM216(P0917XQ)

Brand:Foxboro

System compatibility:I/A Series DCS Standard‑200‑series fieldbus I/O subsystem,works with FCP/FCM controller,used as hot‑standby redundant pair together with FBM214 on adjacent baseplate slots,matched with standard‑200‑series baseplate and corresponding termination assembly and pre‑terminated cable assembly

Function:Standard‑200‑series group‑isolated redundant‑ready HART‑capable analog input fieldbus module,functionally identical to FBM214,8‑channel 4‑20.4mA analog input for two‑wire field transmitters,per‑channel HART FSK modem for bidirectional HART instrument communication,sigma‑delta A/D conversion,supports HART universal and common‑practice commands(burst mode not supported),max two HART digital messages per‑channel per second,configurable integration‑time and rate‑of‑change‑limit parameters,automatic primary‑backup switch‑over upon primary module fault without process‑loop interruption

Installation:Baseplate‑mount installation,only compatible with Standard‑200‑series baseplate,FBM214 and FBM216 occupy two adjacent baseplate slots for redundant configuration,share one common termination assembly

Input channel:8‑channel 4‑20.4mA analog input,group‑wise galvanic isolation(non‑channel‑to‑channel isolation),sense resistor nominal 61.9Ω,minimum total loop resistance 280Ω per channel,minimum compliance voltage 18VDC at 20.5mA,single‑channel current limiting protection

Circuit feature:Sigma‑delta high‑precision A/D conversion,15‑bit resolution,analog accuracy ±0.075% full scale,update rate 100ms,per‑channel over‑voltage‑over‑current protection,sensor open‑circuit detection,complies with HCF_SPEC‑54 HART physical‑layer standard

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,hardware‑level hot‑standby redundancy,group‑isolated architecture,non‑compatible with Compact‑200‑series FBM214b/FBM216b series

Diagnostic:Front‑panel multi‑color LED indicators for power,fieldbus communication and primary‑standby status,HART device diagnostic data and channel fault status passed to DCS system

Power supply:24VDC via FBM baseplate backplane,typical power consumption ≤2.5W

Protection:Transient surge absorption for signal channels

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:‑20℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

Built‑in function

FBM216 redundant‑ready HART analog input module serves as hot‑standby backup partner for FBM214 within Foxboro I/A‑Series DCS system. It acquires 4‑20mA analog process values and HART digital diagnostic‑parameter data from field smart transmitters. It adopts group‑isolation design rather than per‑channel isolation. When primary FBM214 fails,FBM216 automatically takes over control without loop interruption. Hot‑swap supports online module replacement without system shutdown,widely applied for pressure,tank‑level and flow‑critical‑measurement‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM216(P0917XQ) belongs to Foxboro I/A Series legacy DCS standard‑200‑series‑redundant‑group‑isolated‑HART‑analog‑input spare‑part family,obsolete original redundant‑ready 8‑channel HART‑communication‑input‑interface module component. Must pair with FBM214 and standard‑200‑series dedicated baseplate and termination assembly. Not interchangeable with Compact‑200‑series FBM216b. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
