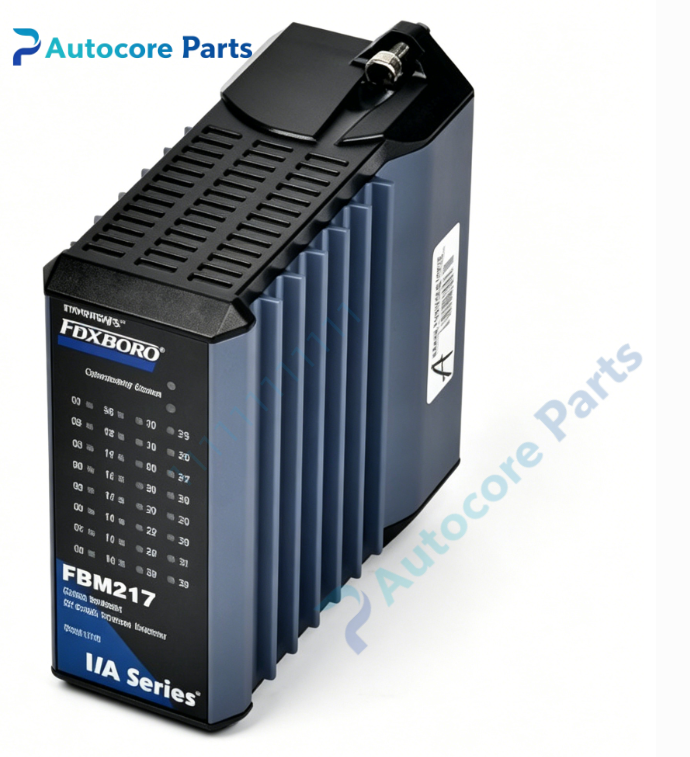

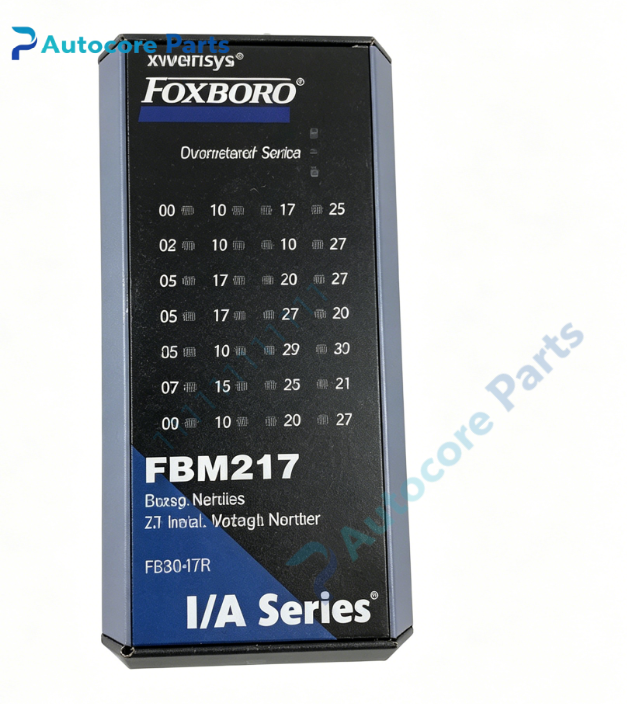

Foxboro FBM217 32‑Channel Group‑Isolated Discrete Input Fieldbus Module

Technical Specifications

Model:FBM217(P0914TR)

Brand:Foxboro

System compatibility:I/A Series DCS Compact‑200‑series fieldbus I/O subsystem,works with FCP/FCM controller,supports single‑module operation or redundant pair configuration with two FBM217,matched with Compact‑200‑series baseplate,redundant adapter RH101AZ and corresponding termination assembly and pre‑terminated cable assembly

Function:Compact‑form‑factor group‑isolated high‑density discrete input fieldbus module,32‑channel two‑wire discrete input,receives contact status,voltage monitor signals from field switches and sensors,supports multi‑voltage signal via matched termination assembly,configurable input filter/debounce time,supports pulse counting(max 250Hz),Sequence‑of‑Events(SOE) timestamp function,ladder logic processing,configurable fail‑safe parameters

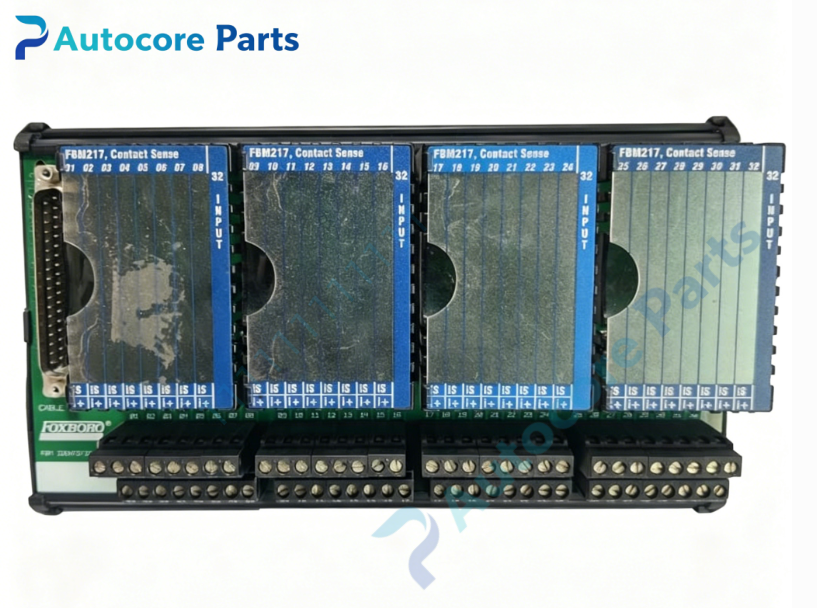

Installation:Compact‑200‑series baseplate‑mount installation,only compatible with Compact‑200‑series baseplate;for redundant configuration,two FBM217 occupy adjacent baseplate slots with redundant adapter RH101AZ,share one common termination assembly

Input channel:32‑channel discrete input,group‑wise galvanic isolation(non‑channel‑to‑channel isolation),supported signal types depend on termination assembly:15‑60V DC,120V AC/125V DC,240V AC;typical on‑state current 2.2mA@30V DC

Circuit feature:Opto‑coupler signal isolation realized on termination assembly side,configurable filter time:0,4,8,16,32ms,input over‑current limiting protection,channel fault diagnosis

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,hardware‑level hot‑standby redundancy available,compact mechanical outline for cabinet space‑saving deployment,group‑isolated design

Diagnostic:Front‑panel multi‑color LED indicators for power,fieldbus communication and each channel status,channel fault and SOE timestamp data passed to DCS system

Power supply:24VDC via Compact‑200‑series baseplate backplane,max 3W typical power consumption

Protection:Transient surge absorption for signal channels

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:‑20℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.32kg

Dimensions:45mm ×110mm ×115mm

Certification:CE,UL

Built‑in function

FBM217 high‑density discrete input module converts field contact and switch status signals into digital process data for Foxboro I/A‑Series DCS system. It adopts group‑isolation architecture,signal conditioning and optical isolation are implemented on matched termination assembly. It supports pulse counting and SOE sequence‑of‑events timestamp recording for accident analysis. It can run as single‑point collection or form hot‑standby redundant pair with another FBM217. Hot‑swap supports online module replacement without system shutdown,widely applied for valve feedback,motor status and interlock‑logic‑loop maintenance in petrochemical,chemical and power‑plant facilities

Product Brief

FBM217(P0914TR) belongs to Foxboro I/A Series legacy DCS Compact‑200‑series high‑density‑discrete‑input spare‑part family,obsolete original compact‑form‑factor 32‑channel group‑isolated discrete‑input module component. Must match with Compact‑200‑series dedicated baseplate and corresponding termination assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
