GE DS200CTBAG1ADD CTBA I/O Terminal Board

Technical Specifications

Model: DS200CTBAG1ADD

Brand: GE (GE Vernova)

Product Type: CTBA I/O Terminal Board

Applicable System: Speedtronic Mark V gas & steam turbine control system

Signal Type: Mixed analog and discrete signals for pressure, temperature, valve position and limit feedback

Connection: Removable screw terminal blocks, 50‑pin board‑to‑board ribbon connector, configurable jumpers

Circuit Feature: Built‑in RC filter circuit for electromagnetic noise suppression

Indicator: On‑board LED channel status indicator for on‑site troubleshooting

Power: Rack backplane control power supply

Operating Temperature:‑30℃ ~ +65℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet‑mount only

Weight:0.46kg

Dimension:242mm ×191mm ×30mm

Application: Power plant turbine generator control cabinet

Product Function Description

DS200CTBAG1ADD CTBA terminal board acts as signal interface hub for Mark V turbine system. It connects field sensors and actuators to main I/O control pack, provides signal termination and noise filtering for incoming field signals, and transfers control commands from controller to local devices. Hardware jumpers support different signal mode setup. LED indicators display real‑time channel status. ADD revision optimizes signal circuit for better surge and noise immunity, ensuring reliable signal transmission for turbine regulation and protection interlock loops.

Product Details

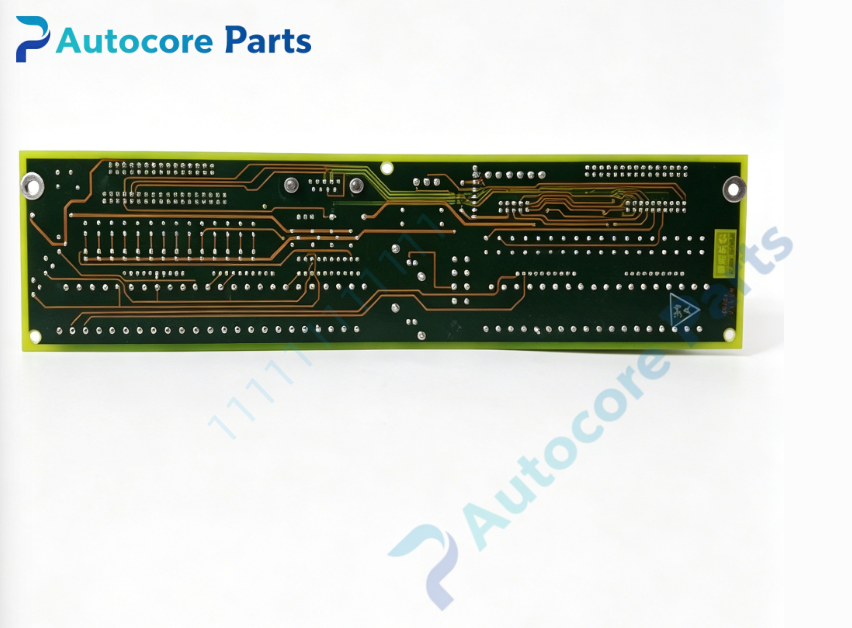

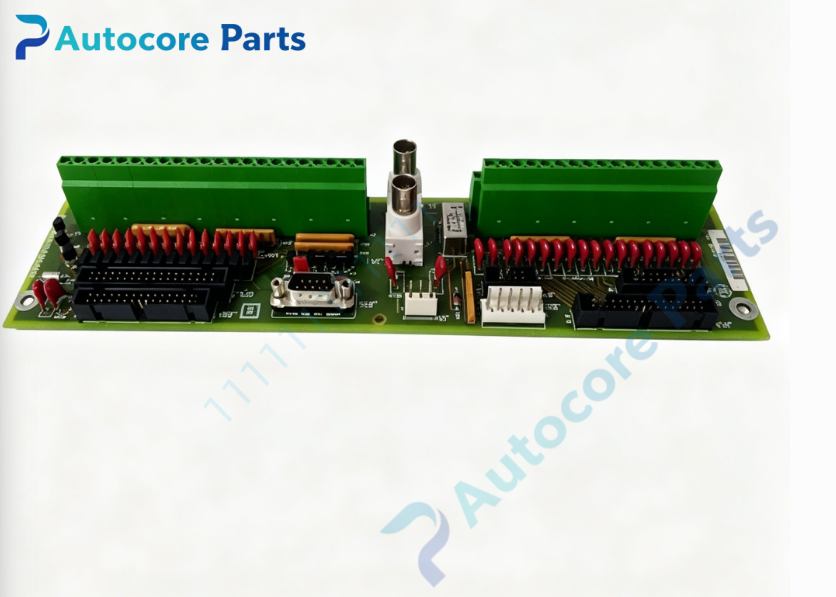

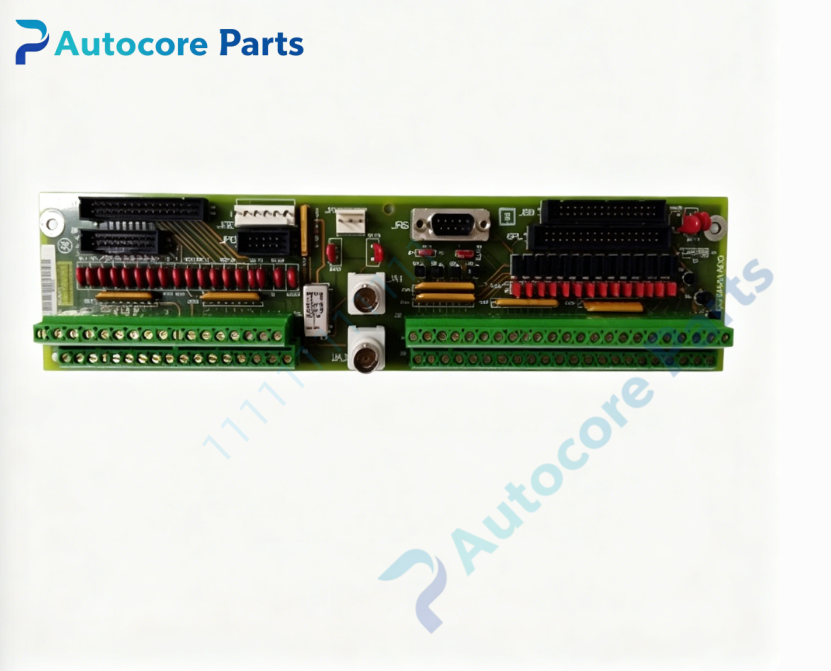

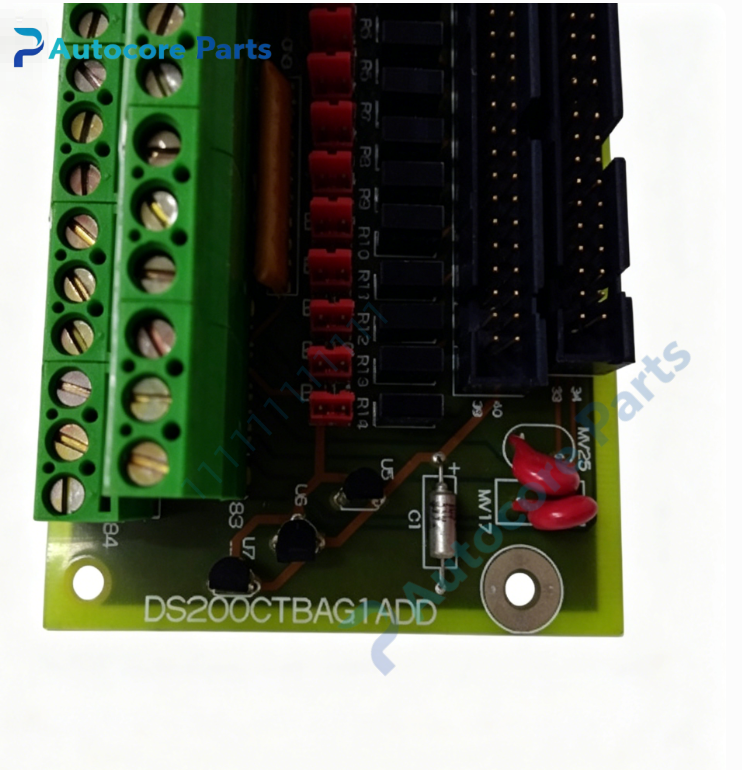

Rack‑mount multilayer PCB fits inside Mark V cabinet slot and requires matched I/O control board for operation. Conformal coated circuit board resists dust, moisture and heavy electromagnetic interference for long‑term power‑plant operation. This part is end‑of‑life from original manufacturer, widely used for unit maintenance and spare‑part replacement. Please verify hardware revision before installation for full system compatibility.
