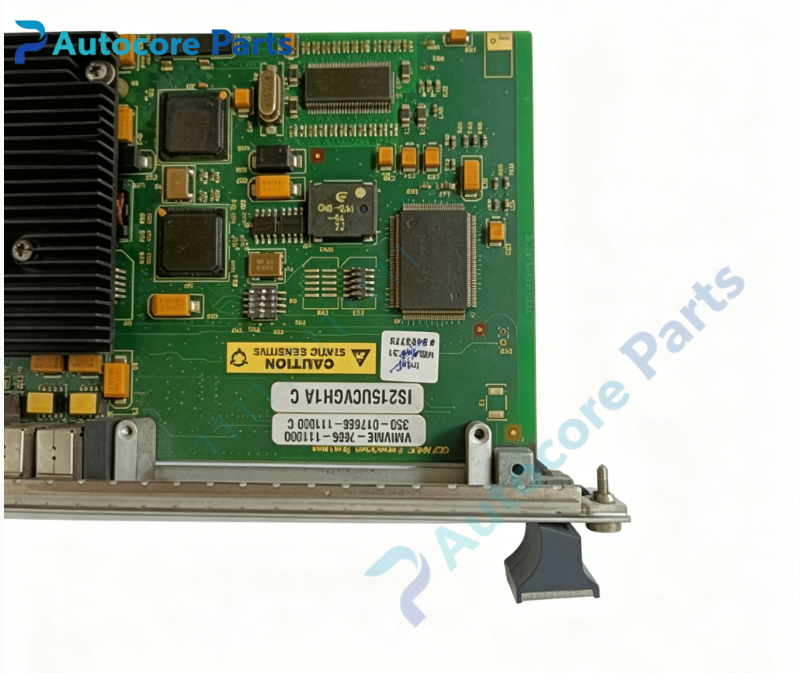

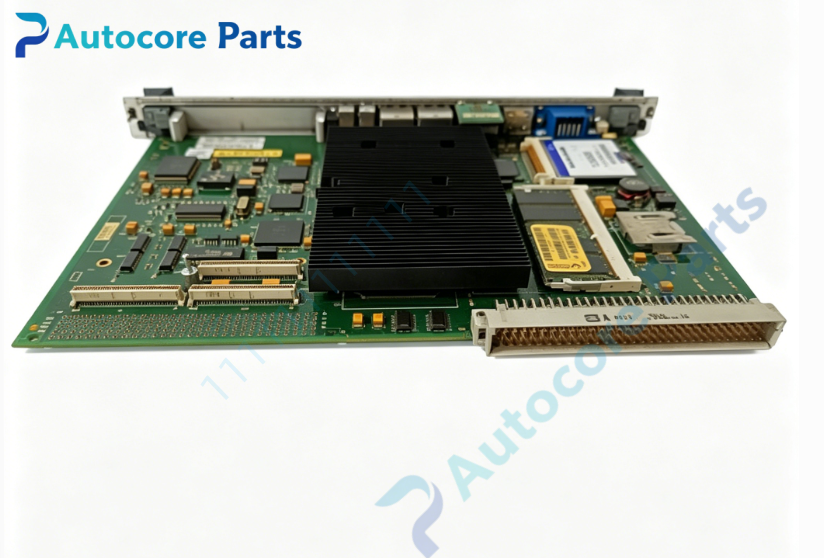

GE IS215UCVGH1A VMIVME‑7666 VME Single‑Board Controller

Technical Specifications

Model: IS215UCVGH1A, VMIVME‑7666

Brand: GE（GE Vernova）

Product Type: UCVG VME embedded single‑board controller

Matching System: GE Speedtronic Mark VI turbine & EX2100 excitation control system

Processor: Intel Ultra‑Low‑Voltage Celeron 650 MHz

Memory: 128 MB SDRAM, 128 MB On‑board CompactFlash Flash

Operating System: QNX Neutrino real‑time operating system

System Bus: VME64 bus standard, single‑slot 6U VME board

Communication Interface: Dual 10/100Mbps RJ45 Ethernet ports, two RS‑232 serial COM ports, SVGA video port, PS/2 keyboard‑mouse interface, dual USB ports

Expansion: PMC expansion slot for optional functional expansion

Power Supply: VME backplane +5VDC powered, typical 4A, max 5.4A

Redundancy Mode: Support simplex and TMR triple‑modular redundant configuration

Indicator: Front‑panel multi‑LED for boot status, power, network link and fault alarm; front‑panel reset switch

Mounting: 6U VME rack plug‑in installation

Operating Temperature:‑30℃ ~ +65℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet‑only installation

Weight:0.78kg

Dimension:233mm ×160mm ×35mm

Compatible System: Gas turbine, steam turbine, combined‑cycle unit and generator EX2100 excitation control cabinet

Core Function

UCVG VME single‑board controller for Mark VI turbine control system. It runs QNX real‑time operating system to execute turbine control logic, sequence program, protection interlock and PID closed‑loop calculation. It exchanges high‑speed data with each VME I/O board via VME64 backplane bus, collects field process signals and outputs control instructions. Dual independent Ethernet ports support EGD, Modbus TCP communication, connecting HMI, SCADA and ToolboxST engineering workstation. Reserved PMC expansion slot meets extended communication function demands. It supports simplex and TMR triple‑modular redundant architecture, undertakes core computing tasks of turbine speed regulation, load control and generator excitation adjustment, ensures stable deterministic real‑time control for power generation units.

Product Details

IS215UCVGH1A (VMIVME‑7666) belongs to UCVG series embedded VME controller hardware of GE Speedtronic Mark VI control system.

This single‑slot industrial SBC adopts Intel ultra‑low‑voltage Celeron 650 MHz processor. On‑board SDRAM and CompactFlash store firmware, application control logic and event fault log. Rich front‑panel interfaces realize network communication, serial debugging, local display and peripheral connection. VME64 backplane bus completes high‑speed data interaction with all functional I/O boards inside rack. Hardware self‑diagnosis continuously monitors module running status and uploads fault information to ToolboxST software. Conformal coated circuit board improves anti‑vibration, moisture‑proof and anti‑electromagnetic‑interference performance, adapts to harsh working environment of power‑plant turbine cabinet. Widely deployed in gas‑steam turbine and generator excitation control cabinets for unit core control operation.

It belongs to critical main‑controller spare‑part for Mark VI control system, widely used in overhaul and renovation projects of power generation units. It is important spare hardware for control logic debugging and defective IS215UCVGH1A module replacement.
