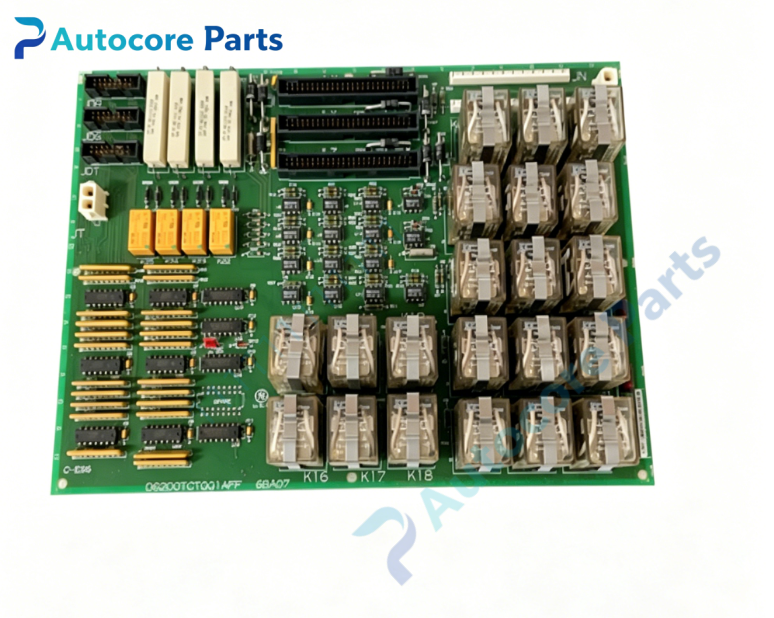

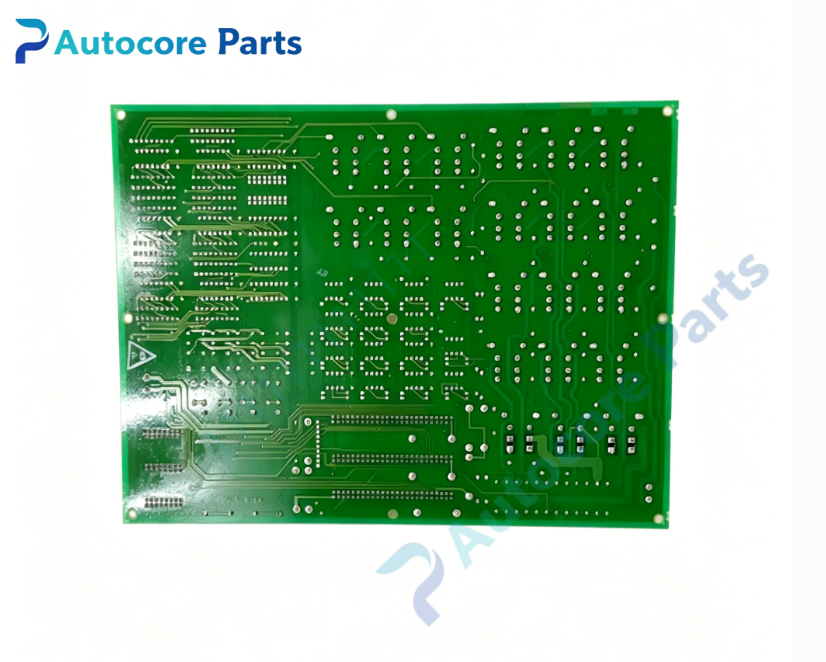

GE DS200TCTGG1AFF TCTG RTD Input Terminal Board

Technical Specifications

Model: DS200TCTGG1AFF

Brand: GE (GE Vernova)

Product Type: TCTG RTD Input Terminal Board

Applicable System: Speedtronic Mark V gas & steam turbine control system

Signal Type: 3‑wire RTD temperature signal such as PT100

Connector: Screw‑type terminal blocks, 50‑pin board‑to‑board ribbon connector, configurable jumpers

Signal Processing: On‑board RTD signal conversion and noise filtering

Indicator: Channel LED status indicator for commissioning and troubleshooting

Power: Rack backplane control power supply

Operating Temperature:‑30℃ ~ +65℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet‑mount only

Weight:0.47kg

Dimension:242mm ×191mm ×31mm

Application: Power plant turbine generator control cabinet

Product Function Description

DS200TCTGG1AFF TCTG terminal board is dedicated RTD signal interface for Mark V turbine system. It receives temperature signals from field PT100 RTD sensors, completes signal conditioning and filtering, and sends processed temperature data to main I/O control board. It adopts 3‑wire RTD wiring to minimize measurement error caused by lead resistance. Hardware jumpers support different sensor configurations, LED indicators reflect real‑time channel status. AFF revision improves filter circuit for better noise rejection, delivers accurate temperature data of bearing and cylinder, provides reliable signal basis for unit thermal protection interlock.

Product Details

Rack‑mount multilayer PCB fits inside Mark V cabinet slot, working with matched analog I/O control board. Conformal coating protects circuit against dust, moisture and electromagnetic interference for long‑term plant operation. This original part is end‑of‑life, widely used for unit maintenance and spare‑part replacement. Confirm hardware revision before installation for system compatibility.
