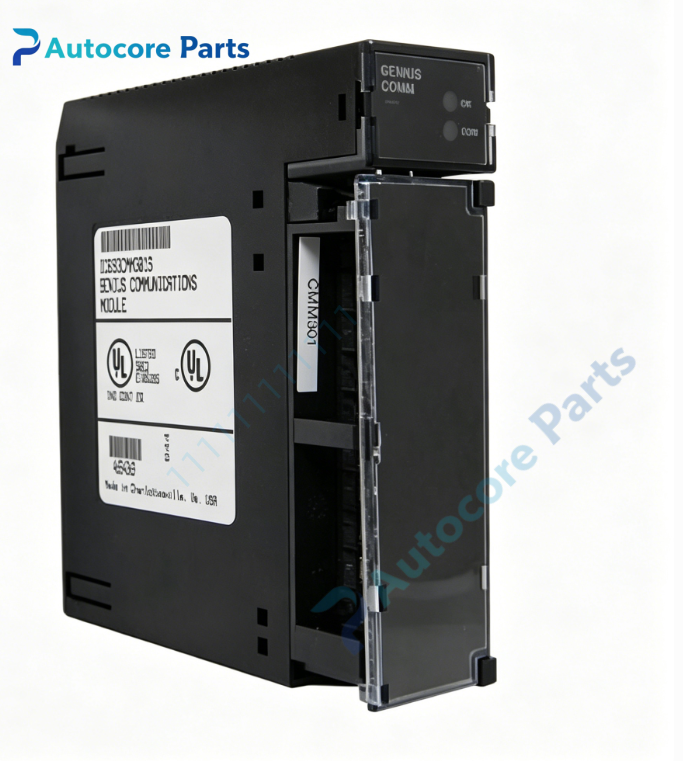

GE IC693CMM301 Genius Communication Module

Technical Specifications

Model: IC693CMM301

Brand: GE Fanuc（GE‑Emerson）

Product Type: Genius Bus Communication Module(GCM)

Applicable System: GE Fanuc Series 90‑30 PLC rack system, back‑plane 5VDC power supply

Communication Protocol: Genius token‑passing peer‑to‑peer bus protocol

Bus Physical Interface: Shielded twisted‑pair Genius bus, daisy‑chain wiring, terminal resistor required at both bus ends

Max Station Quantity: Up to 8 Genius communication stations on one single Genius bus

Global Data Capacity: Max 32 bytes(256 bits) global shared data exchange per station

LED Indicator: OK status LED, COM bus communication status LED

Installation Mode: Standard plug‑in slot installation for 90‑30 PLC rack

Power Requirement: 5VDC from PLC back‑plane, typical power consumption 1.8W

Compatibility: Inter‑connect with Series 90‑30, 90‑70, Series‑Six GE PLC devices via Genius bus controller

Operating Temperature:0℃ ~ +60℃, non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Weight:0.23kg

Dimension:95mm ×146mm ×51mm

Application: Factory production‑line control, water‑treatment system, power‑plant auxiliary control, old‑site 90‑30 multi‑PLC inter‑station data interaction, distributed Genius remote I/O networking.

Product Function Description

IC693CMM301 is the dedicated Genius bus communication module for GE Fanuc Series 90‑30 PLC platformQualitrol.

This intelligent module provides high‑speed global‑data communication function based on Genius token‑passing peer‑to‑peer bus. It can realize automatic cyclic shared‑data exchange among multiple GE PLC stations on the same Genius bus. Each station can send and receive up to 32 bytes of global data, which is suitable for inter‑locking signal transmission, production‑parameter sharing and distributed control data interaction among multi‑PLC systems.

The module adopts shielded twisted‑pair daisy‑chain wiring mode. Both ends of the bus must be equipped with terminal resistors to guarantee anti‑interference performance of the whole network. Two front‑panel LED lights show module running health and Genius bus communication status, convenient for on‑site fault diagnosis and commissioning. No jumper or DIP switch on hardware, all configuration parameters are finished through PLC programming software.

It can cooperate with Genius remote I/O devices to build distributed I/O network, also can communicate cross‑series with 90‑70, Series‑Six PLC equipped with Genius bus controller. Widely used for reconstruction and spare‑part maintenance of legacy GE Fanuc automation systems.

Product Details

Standard plug‑in rack‑mount module for Series 90‑30 PLC, compact industrial‑grade hardware design, adapts to complex workshop electromagnetic‑interference environment. This legacy communication module has been discontinued by original manufacturer, mainly used for old‑equipment overhaul and spare‑part replacement. Please confirm bus terminal resistor installation, station address setting and PLC firmware version before commissioning. Strict ESD protection shall be adopted during installation.
