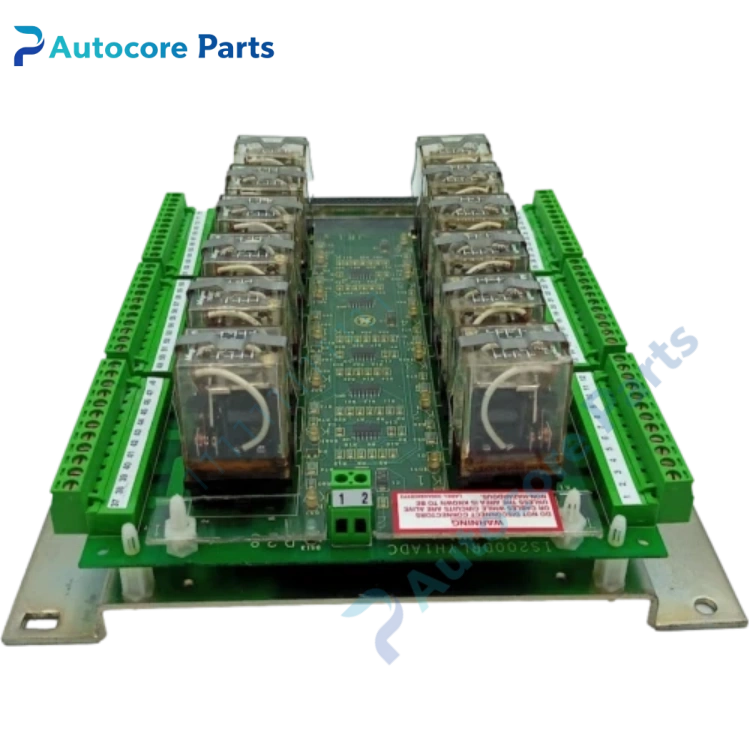

GE IS200DRLYH1ADC Relay Output Terminal Board

Feature & Principle

It is a simplex relay output terminal board for GE Speedtronic Mark VI rack. It receives discrete command signals from the main processor board via 37-pin cable, and drives internal electromechanical relays to output isolated dry contacts. Each channel is Form-C changeover contact, can realize trip command, alarm indication and actuator on-off control. It cannot be used for TMR redundant control, two DRLY boards can be matched to expand output points. Conformal coating protects the circuit against humidity and corrosive gas in power plant cabinet environment.

Specifications

Model: IS200DRLYH1ADC Brand: GE Series: Speedtronic Mark VI Channel: 12 relay outputs Contact type: Form-C (SPDT) dry contact Contact rating: 250VAC / 30VDC Interface: 37-pin cable connection to processor card Structure: Simplex, non-TMR Installation: VME rack plug-in Working temperature: 0 ~ 60℃ Humidity: 5~95% non-condensing Coating: Conformal coated Application: Gas turbine, steam turbine, generator trip and alarm output Certification: CE

Components & Diagnostics

PCB substrate, 12 sets of electromagnetic relays, drive circuit, terminal strip, 37-pin connector, status LED. Common faults: relay contact ablation, coil open circuit, channel no output, connector pin corrosion, board circuit aging.

Product Brief

IS200DRLYH1ADC relay output terminal board, GE obsolete Speedtronic spare widely used for turbine control cabinet overhaul and replacement.
