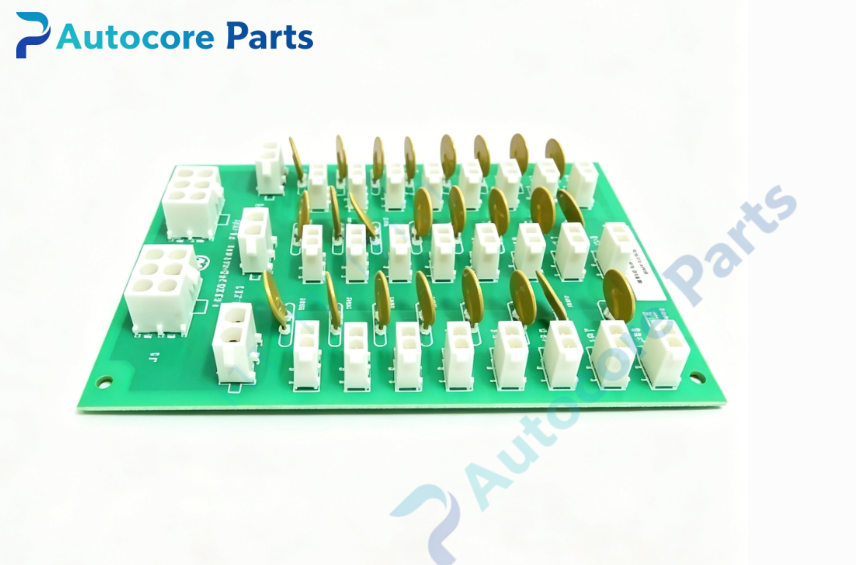

GE IS200JPDDG1AAA DC Power Distribution Module

Technical Specifications

Model: IS200JPDDG1AAA

Brand: GE（GE Vernova）

Product Type: DC power distribution module

Matching System: GE Speedtronic Mark VI turbine control system, EX2100 generator excitation system

Input Power: 28VDC P‑bus power input

Output: Multi‑channel isolated 28VDC power distribution for internal rack boards

Protection: Built‑in over‑current, short‑circuit and over‑voltage protection for each output channel

Connector: Multi‑pin power input connector, multi‑group terminal output connectors

Indicator: On‑board LED indicators for power input and channel fault alarm

Installation: 6U single‑slot VME rack plug‑in installation

Operating Temperature:‑40℃ ~ +70℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20

Weight:0.62kg

Dimension:340mm ×145mm ×24mm

Compatible System: Gas‑steam turbine, synchronous generator EX2100 excitation control cabinet

Core Function

JPDD DC power distribution module for Mark VI and EX2100 excitation system. It receives 28VDC P‑bus power input and distributes stable DC power to EROC, ERIO, ERDD, DSPX and other board cards inside excitation rack. Each output channel is equipped with independent protection circuit to avoid single‑board short‑circuit causing whole‑rack power failure. It supports simplex and TMR triple‑modular redundant excitation cabinet configuration, provides reliable power supply guarantee for all control boards in excitation system.

Product Details

The IS200JPDDG1AAA is JPDD series DC power distribution module for GE Speedtronic Mark VI and EX2100 excitation control system.

This 6U VME rack‑mount power distribution board serves as power hub inside EX2100 excitation cabinet. It receives 28VDC P‑bus power source, then distributes multi‑group DC power to each functional control board in the rack. Every output channel adopts independent over‑current and short‑circuit protection design, effectively isolating fault points, preventing fault spread to the whole system. On‑board LED indicators can quickly reflect power input status and abnormal conditions of each power channel, convenient for on‑site inspection and fault troubleshooting. Conformal coated circuit board improves anti‑vibration, moisture‑proof and anti‑electromagnetic‑interference performance, adapts to high‑noise harsh working environment of power‑plant excitation cabinet. Widely deployed in simplex and TMR triple‑modular redundant generator excitation cabinets for gas‑steam turbine units.

It belongs to critical power supply spare‑part for EX2100 excitation system, widely used in overhaul and renovation projects of power generation units.

It is important spare hardware for excitation cabinet power loop debugging and defective IS200JPDDG1AAA board replacement.
