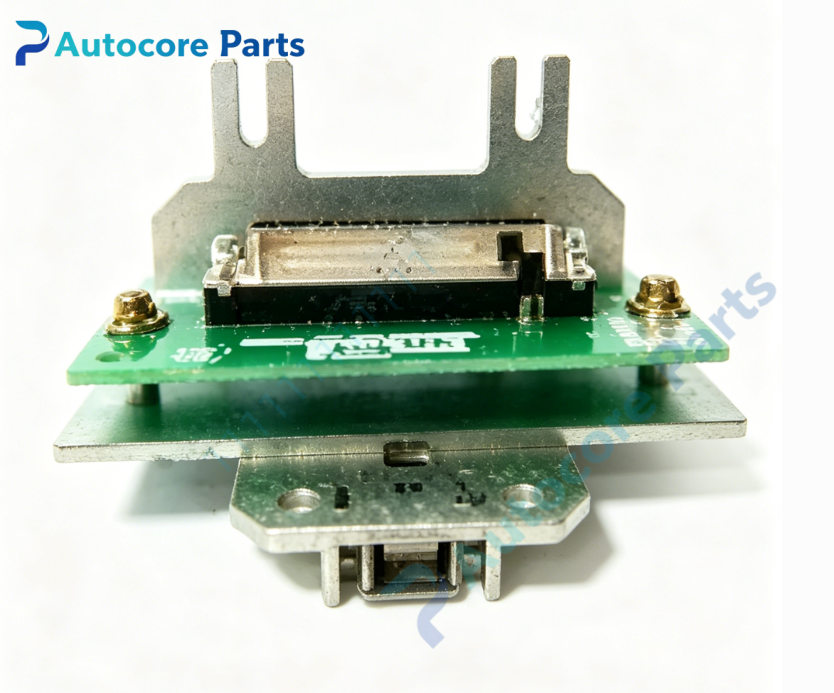

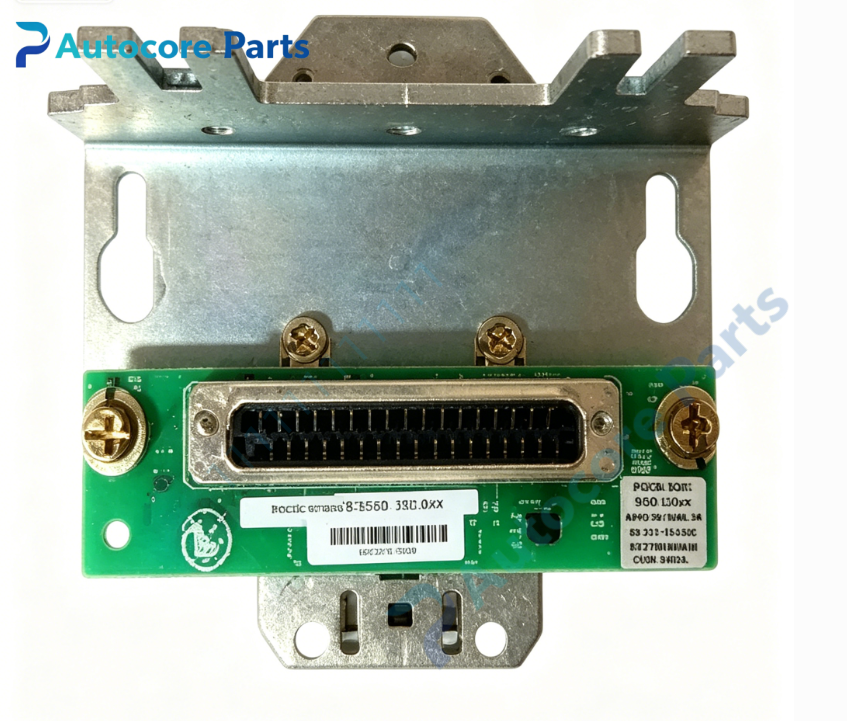

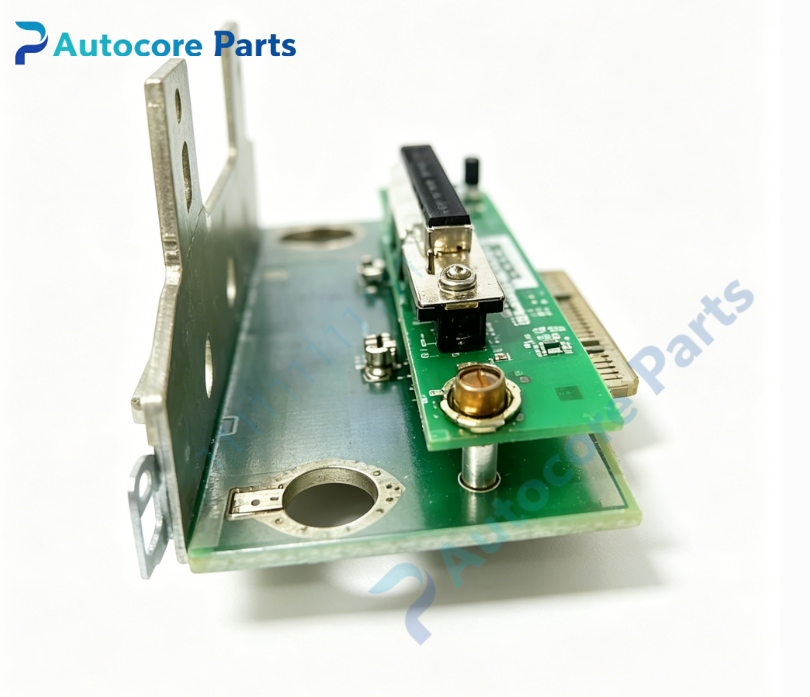

GE IS200SPIDG1ABA PROFIBUS‑DP Terminal Board

Technical Specifications

Model: IS200SPIDG1ABA

Brand: GE（GE Vernova）

Product Type: SPID passive PROFIBUS‑DP signal termination terminal board

Matching System: GE Speedtronic Mark VIe turbine control system

Matching Module: IS220PPRFH1B PROFIBUS‑DP master gateway I/O pack

Fieldbus Interface: DB9 D‑Sub PROFIBUS‑DP port, baud rate up to 12Mbps

Isolation Strength: 2500VAC galvanic isolation between field side and rack backplane

Backplane Connection: Multi‑pin ribbon cable connector for I/O pack signal routing

On‑board Feature: Electronic board ID identification chip

Power Consumption: Passive signal board, powered by mating I/O pack, ≤4W

Mounting: Rack‑mount signal termination board inside Mark VIe cabinet

Operating Temperature:‑40℃ ~ +70℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20

Weight:0.32kg

Dimension:130mm ×60mm ×20mm

Compatible System: Gas turbine, steam turbine, combined‑cycle unit control cabinet

Core Function

SPID PROFIBUS‑DP terminal board for Mark VIe turbine control system. It is used together with IS220PPRFH1B PROFIBUS‑DP master I/O pack. It provides physical signal termination and isolation conversion for field PROFIBUS‑DP slave equipment wiring. 2500VAC isolation effectively isolates field‑side interference from internal rack circuits. Built‑in ID chip enables automatic hardware identification by the control system. It supports simplex and TMR triple‑modular redundant architecture, realizing safe signal access for PROFIBUS‑DP field bus and protecting the internal control hardware from external surge interference.

Product Details

IS200SPIDG1ABA belongs to SPID series PROFIBUS signal termination hardware for GE Speedtronic Mark VIe turbine control system.

This passive terminal board undertakes physical interface conversion for PROFIBUS‑DP bus. The field PROFIBUS‑DP cable connects to DB9 port on this board, and internal signals are transmitted to IS220PPRFH1B gateway module via ribbon cable. High‑strength galvanic isolation barrier separates field bus from control backplane, restraining surge noise and ground loop interference coming from field instruments and drives. The electronic ID chip allows ToolboxST software to automatically identify hardware model without manual configuration. Conformal coated circuit board improves anti‑vibration, moisture‑proof and anti‑electromagnetic‑interference performance, adapts to harsh working conditions of power‑plant turbine cabinet. Widely deployed in gas‑steam turbine combined‑cycle unit control cabinets for auxiliary field‑bus signal access.

It belongs to critical PROFIBUS terminal spare‑part for Mark VIe turbine control system, widely used in overhaul and renovation projects of power generation units.

It is important spare hardware for PROFIBUS‑DP signal loop debugging and defective IS200SPIDG1ABA board replacement.
