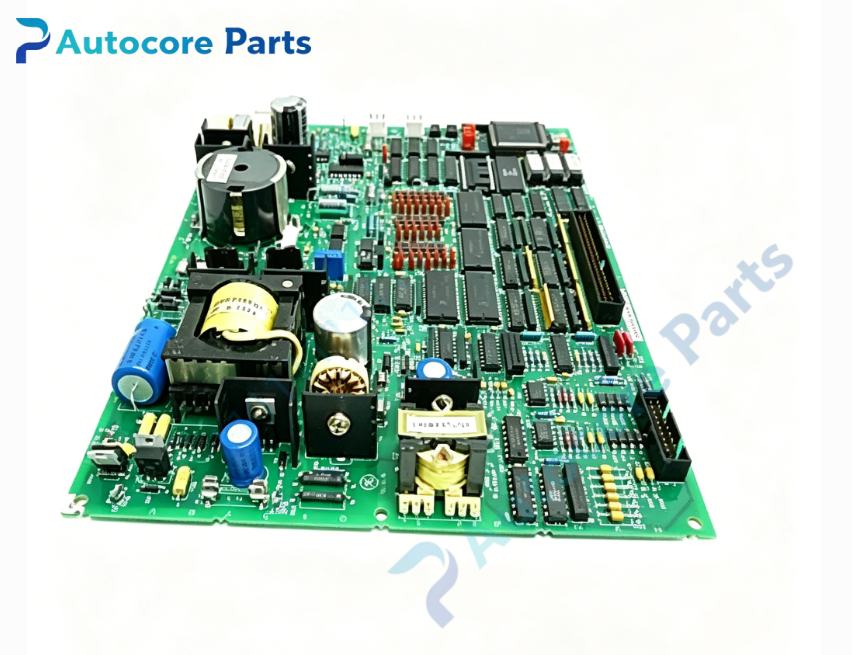

GE IS210AEPSG1AFC AE Power Supply Module

Technical Specifications

Model: IS210AEPSG1AFC

Brand: GE（GE Vernova）

Product Type: AE power supply module

Matching System: GE Speedtronic Mark VIe distributed turbine control system

Input Voltage: 85‑264VAC, 50/60Hz

Output: Regulated 24VDC main output, auxiliary 5VDC output

Max Continuous Output Current: 10A, peak current 15A

Efficiency: Up to 92%

Protection Function: Over‑voltage, under‑voltage, short‑circuit, reverse polarity, transient surge suppression

Communication Interface: IONet / SPI bus for power module health status reporting

Installation: DIN‑rail or cabinet panel mounting

Operating Temperature:‑40℃ ~ +70℃, non‑condensing

Protection Class:IP20

Weight:1.33kg

Dimension:305mm ×152mm ×51mm

Compatible System: Gas‑steam turbine, generator unit, combined‑cycle power plant control cabinet

Core Function

AE power supply module for Mark VIe turbine control system. It converts alternating‑current input into stable regulated DC power, supplies power for controller, I/O packs and field auxiliary components. It supports real‑time power health monitoring via IONet bus. Built‑in multi‑level protection circuits can effectively avoid equipment damage caused by power abnormal conditions, guarantee continuous and stable power supply for the whole turbine control system.

Product Details

The IS210AEPSG1AFC is AE series power supply module for GE Speedtronic Mark VIe distributed turbine control system.

This power module adopts high‑efficiency AC‑DC conversion circuit, provides stable and reliable DC power for the whole Mark VIe control hardware. It is equipped with comprehensive electronic protection mechanism, which can respond rapidly under short‑circuit, over‑voltage and over‑current conditions to protect rear‑end control hardware. It uploads working status, fault code and health data to main controller through IONet communication bus, which is convenient for remote monitoring and early fault warning.

Conformal coated circuit board enhances moisture‑proof, dust‑proof and anti‑electromagnetic‑interference performance, adapts to harsh environment of power plant turbine hall. It supports simplex and duplex redundant power supply configuration, effectively improving system power supply reliability.

It belongs to critical power spare‑part for Mark VIe turbine control system, widely used in overhaul and renovation projects of gas‑steam turbo‑generator units.

It is important spare hardware for power loop debugging and defective IS210AEPSG1AFC module replacement.
