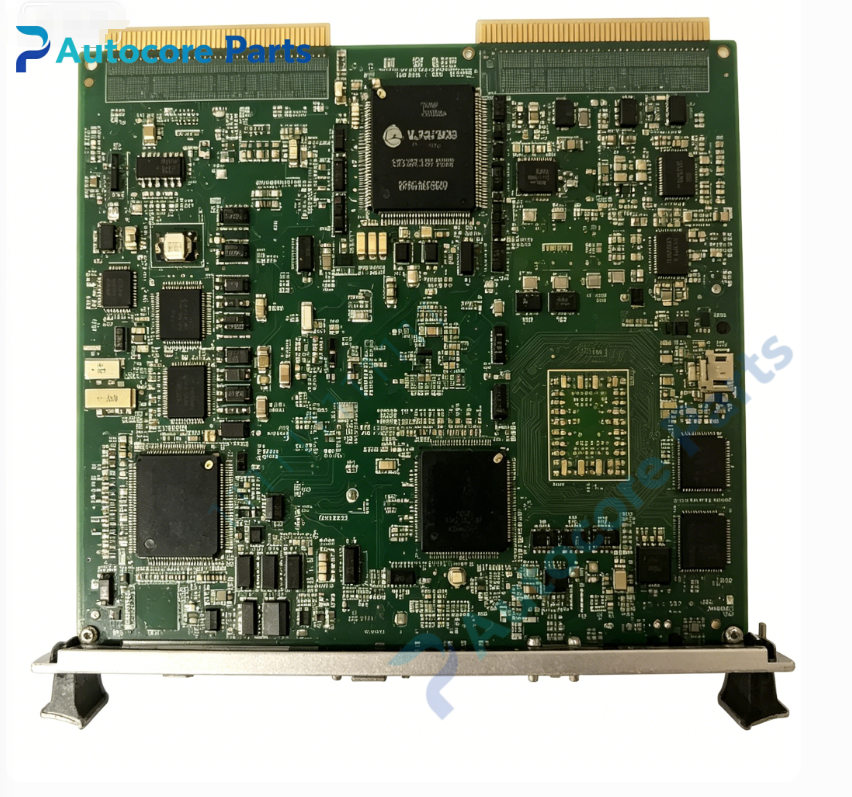

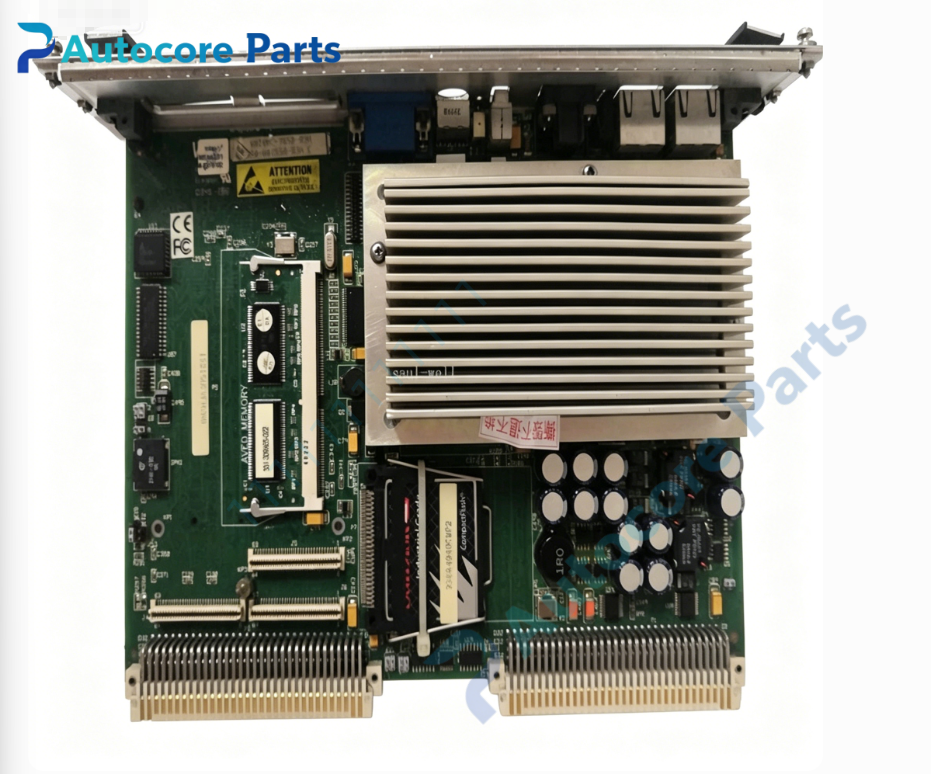

GE IS215UCVFH2BB VMIVME‑7650‑83H VME Single‑Board Controller

Technical Specifications

Model: IS215UCVFH2BB, VMIVME‑7650‑83H，350‑007650‑83H C

Brand: GE（GE Vernova）

Product Type: UCVH high‑performance VME embedded single‑board controller

Matching System: GE Speedtronic Mark VI turbine & EX2100 generator excitation control system

Processor: Intel Ultra‑Low‑Voltage Celeron 1067 MHz

Memory: 1GB SDRAM, 128MB On‑board CompactFlash Flash

Operating System: QNX Neutrino real‑time operating system

System Bus: VME64 bus standard, single‑slot 6U VME board

Communication Interface: Dual 10/100Mbps RJ45 Ethernet ports, two RS‑232 serial COM ports, VGA display interface, PS/2 keyboard‑mouse interface, dual USB ports

Expansion: PMC expansion slot for optional functional daughter‑card installation

Power Supply: VME backplane +5VDC powered, typical power consumption 10.5W

Redundancy Mode: Support simplex and TMR triple‑modular redundant configuration

Indicator: Front‑panel multi‑LED for boot status, power, network link and fault alarm; front‑panel reset switch

Mounting: 6U VME rack plug‑in installation

Operating Temperature:‑30℃ ~ +65℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet‑only installation

Weight:0.82kg

Dimension:262mm ×188mm ×21mm

Compatible System: Gas turbine, steam turbine, combined‑cycle unit and generator EX2100 excitation control cabinet

Core Function

UCVH high‑performance VME single‑board controller for Mark VI turbine control system. It runs QNX real‑time operating system to execute complex turbine control logic, sequence program, protection interlock and high‑precision PID closed‑loop calculation. It exchanges massive real‑time data with each VME I/O board via VME64 backplane bus, collects field process signals and outputs control instructions. Dual independent Ethernet ports support EGD, Modbus‑TCP communication protocol, connecting HMI, SCADA upper monitoring system and ToolboxST engineering workstation. Reserved PMC expansion slot supports PMCI and other PMC daughter‑cards for communication function expansion. It supports simplex and TMR triple‑modular redundant architecture, undertakes heavy‑load core computing tasks of turbine speed regulation, load control and generator excitation adjustment, ensures stable deterministic real‑time control for large‑scale power generation units.

Product Details

IS215UCVFH2BB (VMIVME‑7650‑83H,350‑007650‑83H C) belongs to UCVH series high‑performance embedded VME controller hardware of GE Speedtronic Mark VI control system.

This single‑slot industrial SBC adopts Intel ultra‑low‑voltage Celeron 1067 MHz high‑speed processor, equipped with large‑capacity SDRAM and CompactFlash to store firmware, complex control application logic and event fault log. Rich front‑panel interfaces realize network communication, serial debugging, local display and peripheral connection. VME64 backplane bus completes high‑speed data interaction with all functional I/O boards inside rack. Hardware self‑diagnosis continuously monitors module running status and uploads fault information to ToolboxST software. PMC expansion slot can install PMC series sub‑boards to expand system communication resources. Conformal coated circuit board improves anti‑vibration, moisture‑proof and anti‑electromagnetic‑interference performance, adapts to harsh working environment of power‑plant turbine cabinet. Widely deployed in gas‑steam turbine and generator excitation control cabinets for heavy‑load unit core control operation.

It belongs to critical high‑performance main‑controller spare‑part for Mark VI control system, widely used in overhaul and renovation projects of power generation units. It is important spare hardware for control logic debugging and defective IS215UCVFH2BB module replacement.
