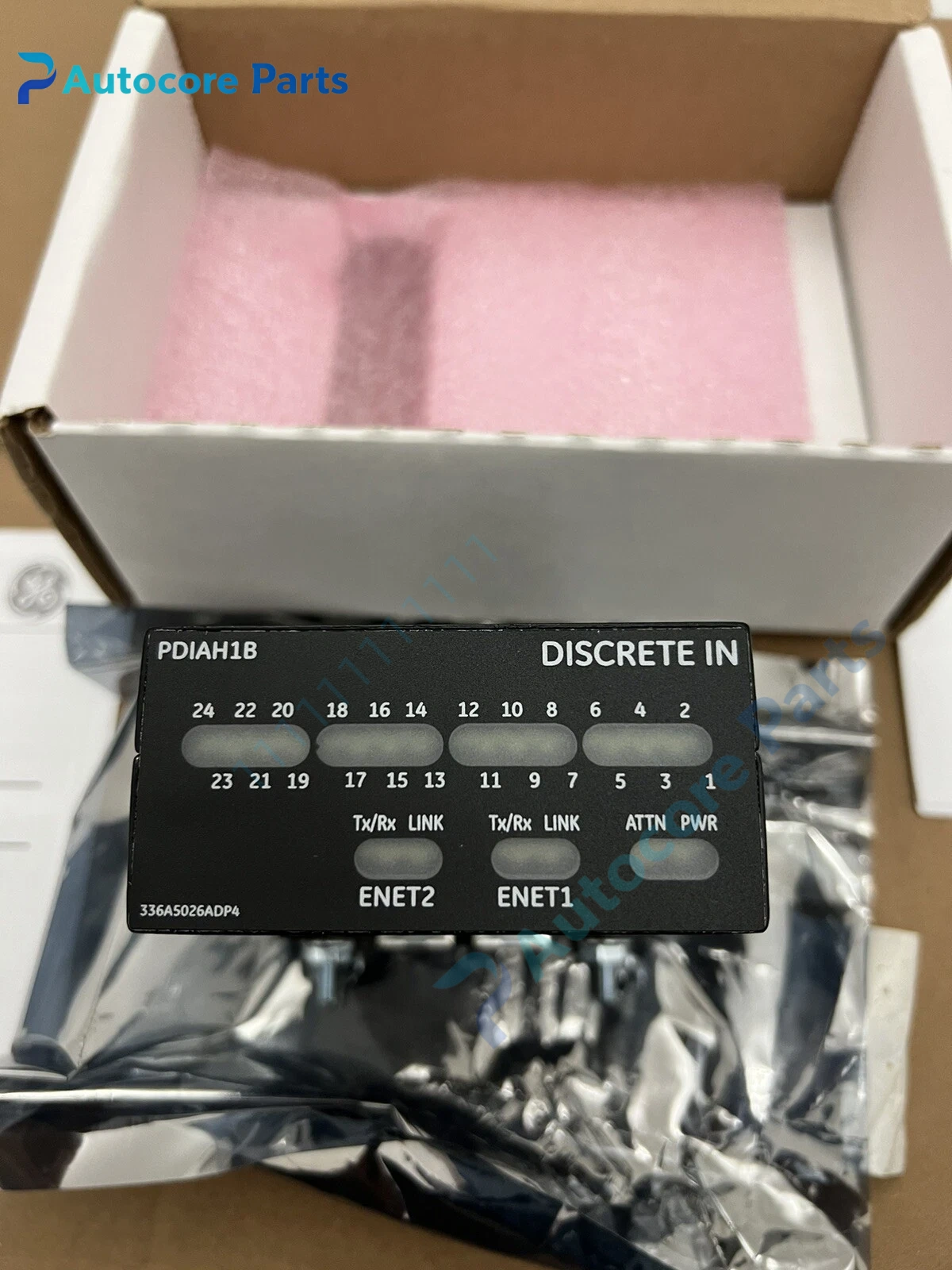

GE IS220PDIAH1B Digital Input Pack Unit

Module Feature

IS220PDIAH1B is a PDIA digital input pack of GE Mark VIe Speedtronic turbine control system.

It adopts optical isolation design to suppress field electrical interference, receives dry contact signals from limit switches, relay feedback and safety interlock devices. It supports 24V DC wetting supply and signal filtering, communicates with the main controller via Mark VIe high-speed internal bus. It is widely deployed in gas turbine and steam turbine control cabinets for interlock status monitoring and is a common spare for power plant system overhaul.

Working principle

Field contact switching changes the loop state of the 24V wetting circuit.

The photoelectric isolation circuit converts contact state into digital signal and transmits to the main control board. The controller executes interlock logic and generates alarm records once abnormal status is detected. Built-in circuit diagnosis can identify open or short circuit of field wiring.

Onboard components

Photoelectric isolation chips, signal filtering circuit, wetting power circuit, FPGA signal processor, high-density backplane connector, status LED array.

LED indicators

Onboard channel LEDs indicate channel ON status, module power and fault status.

Hardware self‑diagnosis

Continuous channel diagnosis detects wiring open circuit, short circuit and module hardware anomaly, alarm information is uploaded to ToolboxST software.

Programming software

ToolboxST, used for signal tag configuration, alarm checking and system diagnosis.

Electrical & Process Parameters

Model:IS220PDIAH1B Brand:GE Device type:Isolated digital input pack System:Mark VIe Speedtronic Wetting voltage:24V DC Function:Field dry contact signal acquisition for turbine interlock monitoring

Mechanical & Structure

Mounting:Install on Mark VIe I/O backplane

Protection class:IP20

Housing:PCB board with metal shielding frame

Environmental

Operating temperature:0℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Original GE turbine control spare

Installation

Cut off cabinet power before replacement, insert the module into the matched I/O slot and lock the fasteners.

Complete backplane connection and field wiring according to schematic drawing. Verify each channel input response and download configuration after power on.

Interface

Backplane high-speed bus connector, field signal wiring terminal.

Diagnostic

No channel feedback: Loose terminal, failed field contact, lost wetting supply.

Signal flickering: Ground interference or unstable field contact.

Module communication fault: Backplane pin damage or slot failure.

Product BriefGE IS220PDIAH1B Mark VIe PDIA isolated digital input pack, dry contact I/O module for gas and steam turbine control interlock signal collection.
