GE IS220PRTDH1B PRTD RTD Input I/O Pack

Technical Specifications

Model: IS220PRTDH1B

Part Number: IS220PRTDH1B，336A5026ADP13

Brand: GE（GE Vernova）

Product Type: PRTD RTD temperature measurement I/O pack

Matching System: GE Speedtronic Mark VIe distributed turbine control system, matched with corresponding RTD terminal board

Power Supply:24VDC auxiliary power supply, working voltage range 22.5‑28.5VDC, typical power consumption 3.8W

Input Channels:16‑channel RTD resistance temperature detector input

Supported Sensor:PT100 platinum thermal resistance sensor, 2‑wire,3‑wire wiring mode configurable

Measurement Range:‑200℃ ~ +850℃

Signal Processing:Built‑in hardware filter for suppressing high‑frequency industrial interference

Isolation:Field‑to‑backplane 1500VAC optical galvanic isolation

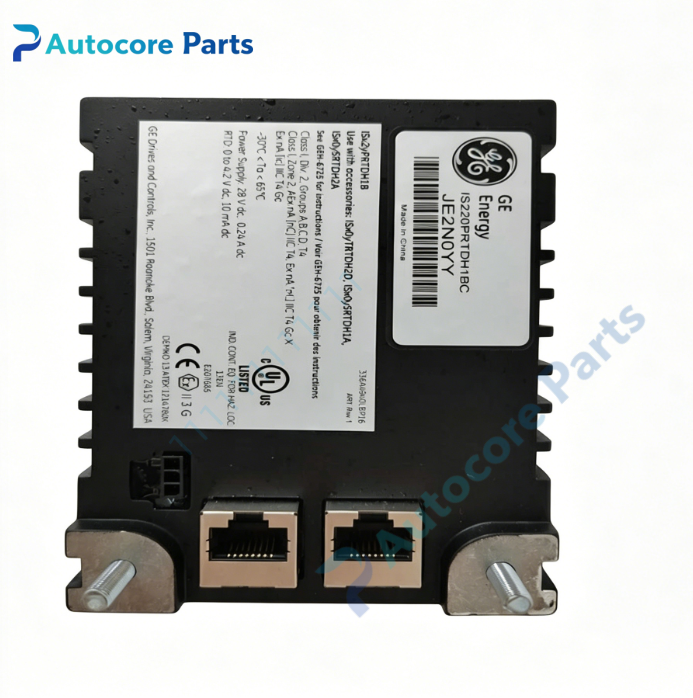

Communication:Dual‑port 10/100Mbps IONet redundant Ethernet interface

Diagnostic Port:IR infrared local diagnostic service port

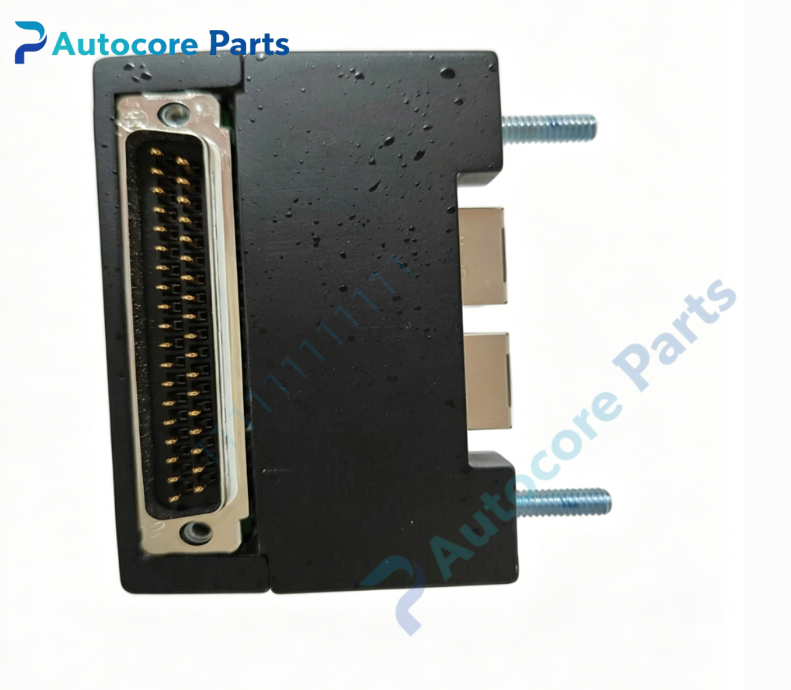

Connector:DC‑37 field signal connector

Redundancy Mode:Support simplex, dual and TMR triple‑modular redundant configuration

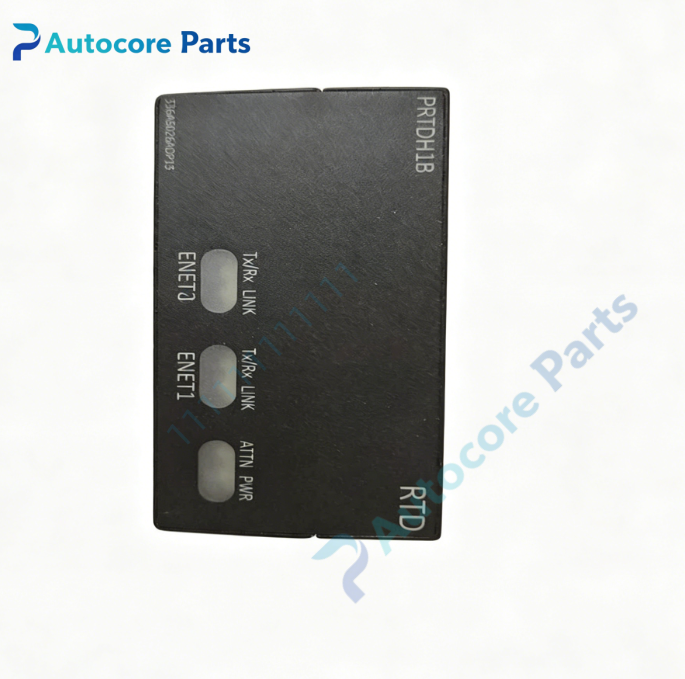

Indicator:Front‑panel LED indicators for power, network and channel fault status

Installation:Mark VIe rack plug‑in installation, hot‑swap supported

Operating Temperature:‑40℃ ~ +70℃, non‑condensing

Protection Class:IP20

Weight:0.70kg

Dimension:159mm ×108mm ×30mm

Compatible System:Gas‑steam turbine, generator unit, combined‑cycle power plant control cabinet

Core Function

PRTD temperature measurement I/O pack for Mark VIe turbine control system. It collects temperature signals from field PT100 RTD sensors of turbine bearing, stator and cooling system. Converts resistance variation into digital temperature value, transmits data to main controller through dual‑port IONet redundant Ethernet. Supports simplex, dual and TMR triple‑modular redundant architecture, completes equipment temperature monitoring, over‑temperature alarm and interlock protection logic for turbo‑generator units.

Product Details

The IS220PRTDH1B (336A5026ADP13) is PRTD series RTD temperature measuring I/O pack for GE Speedtronic Mark VIe distributed turbine control system.

This hot‑swappable compact I/O pack is installed in Mark VIe standard rack and works with matched RTD terminal board for field sensor wiring. It supports 2‑wire and 3‑wire PT100 thermal resistance sensors, adopts stable resistance sampling circuit to reduce measurement error caused by cable resistance. Built‑in hardware filter can effectively filter site high‑frequency interference and improve temperature acquisition accuracy. Dual‑port IONet redundant Ethernet guarantees reliable data interaction with main controller. IR infrared diagnostic port supports on‑site parameter checking and fault diagnosis without upper computer. Front‑panel LED indicators help technicians observe running status and locate channel failures rapidly.

Conformal coated circuit board improves anti‑vibration, moisture‑proof and anti‑electromagnetic‑interference performance, adapts to harsh working environment of power‑plant turbine hall. Module supports automatic configuration after replacement and shortens equipment maintenance downtime.

It belongs to key temperature signal processing spare‑part for Mark VIe turbine control system, widely used in overhaul and renovation projects of gas‑steam turbo‑generator units.

It is important spare hardware for turbine temperature loop debugging and defective IS220PRTDH1B pack replacement.
