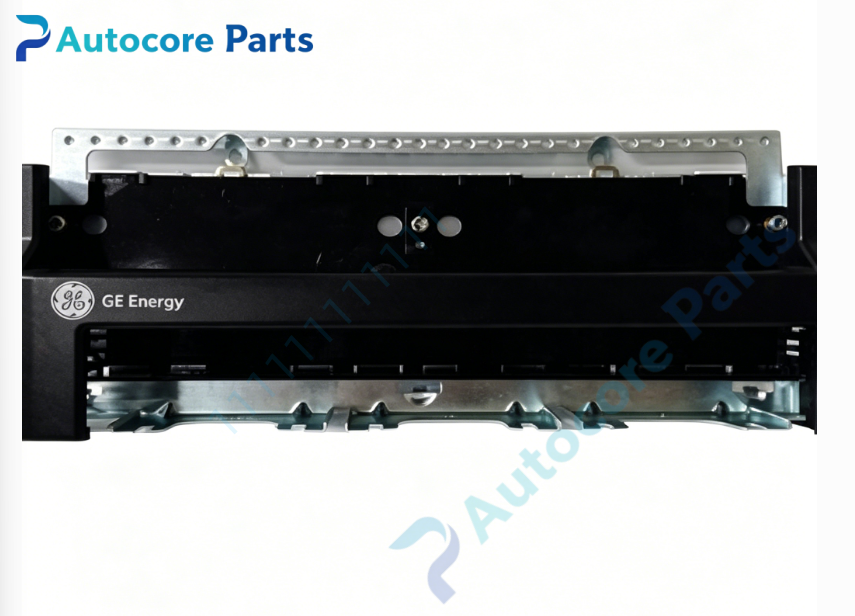

GE IS230TCISH6C Contact Input Terminal Board

Technical Specifications

Model: IS230TCISH6C

Part Number: IS230TCISH6C

Brand: GE（GE Vernova）

Product Type: Dry‑contact discrete input terminal board

Matching System: GE Speedtronic Mark VIe turbine control system, mate with PDIA I/O processing pack

Power Supply:24VDC

Input Channels:24‑channel dry‑contact discrete input

Isolation:Field‑to‑backplane galvanic isolation

Signal Protection:Per‑channel surge suppression and EMI noise filter

Installation:35 mm standard DIN‑rail mounting, cabinet installation

Operating Temperature:‑40℃ ~ +70℃, non‑condensing

Protection Class:IP20

Weight:1.10kg

Dimension:265mm ×166mm ×54mm

Compatible System:Power plant gas‑steam turbine and generator control cabinet

Core Function: Specialized dry‑contact termination terminal board for Mark VIe turbine control system. It collects status feedback signals from field limit switches, pressure switches and relay contacts. Completes signal filtering, surge suppression and electrical isolation, and transmits conditioned discrete signals to PDIA I/O pack. Supports simplex, dual and TMR triple‑modular redundant architectures, realizes turbine interlock protection, trip logic and SOE sequence‑of‑event recording function.

Product Details

The IS230TCISH6C is DIN‑rail type dry‑contact input terminal board for GE Mark VIe Speedtronic distributed turbine control system.

This terminal board adopts compact DIN‑rail installation structure, equipped with high‑density screw terminals for field dry‑contact device wiring. Each channel integrates surge‑suppression and EMI filter circuits to restrain voltage spike interference brought by long‑distance field cables. It converts field contact status into stable discrete signals and transmits them to matched PDIA I/O processing pack for logic calculation, providing reliable switch‑state data for turbine safety protection and interlock control.

Built‑in channel self‑diagnosis function can detect circuit open‑circuit, short‑circuit and signal abnormality, and upload fault alarm records to turbine controller. Conformal coated circuit board improves anti‑vibration and anti‑interference performance, adapts to harsh electromagnetic environment of power‑plant turbine hall, meets hazardous‑area application requirements.

It belongs to key discrete signal termination spare‑part for Mark VIe turbine control system, widely used in overhaul and renovation projects of gas‑steam turbine generating units.

It is important spare hardware for turbine discrete signal loop debugging and defective IS230TCISH6C board replacement.
