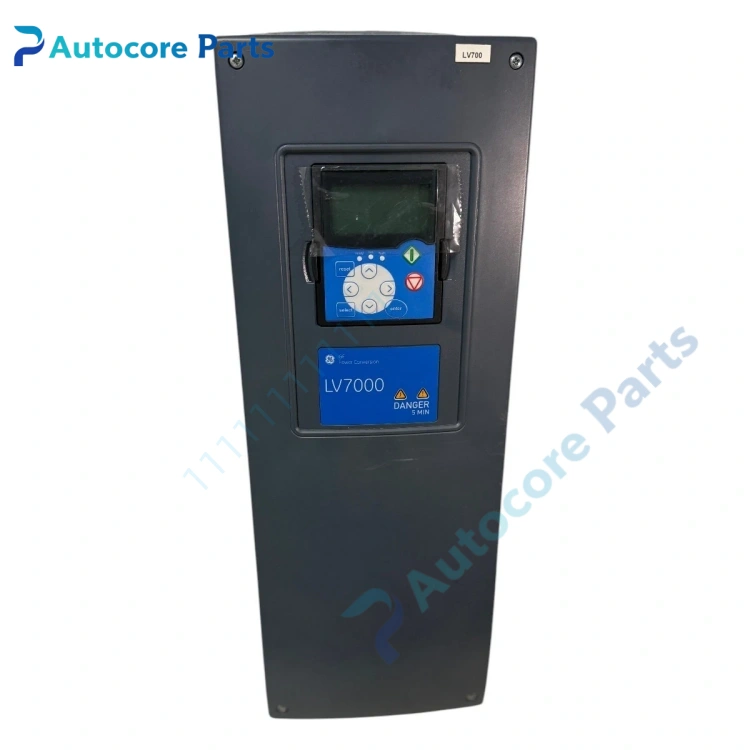

GE Vernova LV7000 Low Voltage Drive

Feature & Principle

It is GE Vernova (Converteam/Alstom) LV7000 series modular low voltage frequency converter platform. It adopts modular power unit architecture, supports sensorless vector and closed-loop flux vector control. Different sub-models are used for independent AC drive, common DC bus inverter, active front end rectifier. It can be expanded with fieldbus and I/O option cards, supports master-slave synchronization, winding tension control, and has complete overcurrent, overvoltage and overtemperature protection. This series is widely used for heavy industry production line drive transformation and maintenance.

Specifications

Model: LV7000 Brand: GE Vernova Series: LV7 platform Control mode: Sensorless vector, closed-loop flux vector Sub-type: LV7000-3, LV7000-4, LV7000-5 INU, LV7000-6 AFE, LV7000-8 NFE Communication: Fieldbus option card expandable Operation panel: Detachable keypad Application: Metallurgy rolling mill, paper machine, pump, fan, compressor, winding tension control Certification: CE, IEC

Components & Diagnostics

Power module, control board, drive panel, current/voltage detection unit, cooling fan, bus capacitor. Common faults: IGBT breakdown, fan aging, bus capacitor bulging, communication card failure, parameter loss.

Product Brief

LV7000 low voltage modular drive, GE Vernova heavy industry high-performance inverter spare widely used for rolling mill and paper machine drive cabinet overhaul and replacement.
