GE VME‑5565 VMIVME‑5565 Reflective Memory Module

Technical Specifications

Model: VME‑5565 VMIVME‑5565

Brand: GE Fanuc (Abaco Systems / VMIC)

Product Type: 6U VME Reflective Memory Communication Module

Applicable System: VME / VME64 bus distributed real‑time control system

Reflective Memory: 64MB / 128MB configurable SDRAM, supports parity / ECC protection

Fiber‑Optic Rate: 2.12Gbaud optical ring network, LC fiber connector interface

Max Network Nodes: Up to 256 nodes on one optical ring network

Transmission Topology: Ring topology, star topology with external fiber hub

Fiber Transmission Distance: Multimode fiber max 300m, single‑mode fiber max 10km

Data Throughput: 43MB/s‑174MB/s, dynamic packet size 4‑64 bytes

Inter‑Node Latency: Typical less than 500ns deterministic hardware synchronization

Interrupt Function: Four hardware network interrupt channels, each carries 32‑bit interrupt data

Bus Function: VME bus master/slave, supports DMA data transmission

Indicator: On‑board LED for optical link, network fault and module running status

Power Supply: VME rack backplane +5VDC auxiliary power

Operating Temperature:0℃ ~ +65℃, non‑condensing

Humidity:5%‑95% non‑condensing

Protection Class:IP20, cabinet rack‑mount only

Weight:0.72kg

Dimension:233.4mm ×160mm ×20.3mm

Application: Turbine control system, industrial real‑time simulation platform, multi‑node distributed control, legacy VME equipment high‑speed data sharing, aerospace test system

Product Function Description

VME‑5565 VMIVME‑5565 is a classic VME bus reflective memory node card, which builds hardware‑level shared memory real‑time network through optical fiber ring. When any node writes data to local reflective memory, the hardware automatically mirrors and synchronizes the data to all other nodes in the optical ring without consuming CPU resources, realizing deterministic low‑latency data synchronization among multiple controllers.

The module supports ring and star network structures, can configure redundant optical links to improve system stability. It carries four groups of network hardware interrupts, which can send trigger signals with data payload between nodes. It is compatible with PCI‑5565, PMC‑5565 and other series reflective memory boards, and can build mixed‑bus multi‑node networks. It is widely used in industrial scenarios with strict requirements for real‑time performance and synchronization accuracy. VME‑5565 and VMIVME‑5565 are different naming variants of the same hardware product.

Product Details

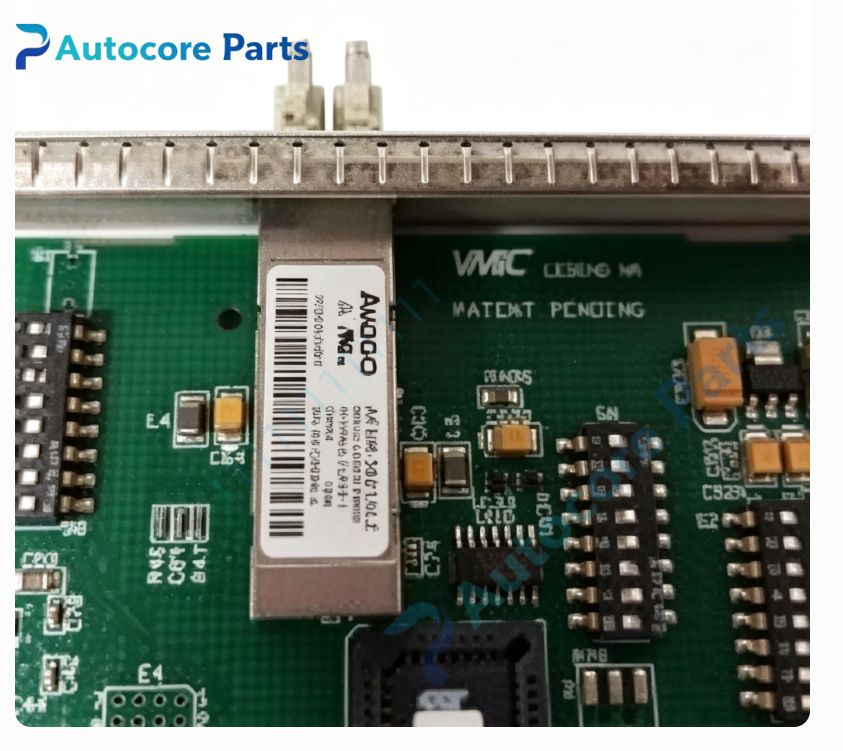

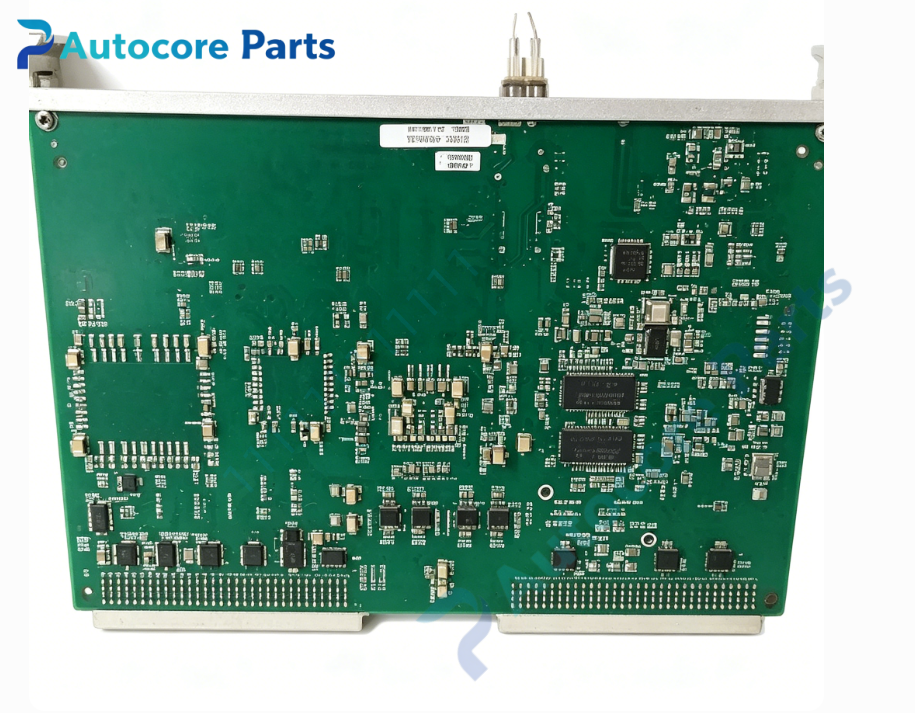

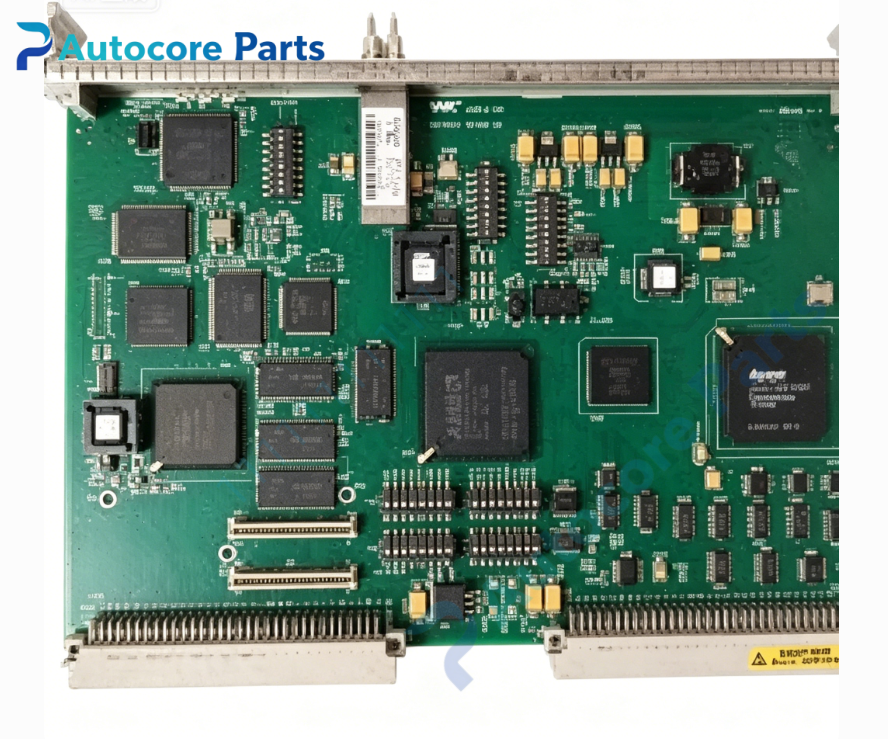

Standard 6U Eurocard single‑slot structure, directly plug‑in VME cabinet slot. Conformal coated circuit board adapts to complex industrial environment with dust and electromagnetic interference. This legacy reflective memory module has been discontinued by original manufacturer, mainly used for old‑equipment maintenance and spare‑part replacement. Strict ESD protection shall be adopted during installation. Verify optical fiber parameters and node address configuration before commissioning.
