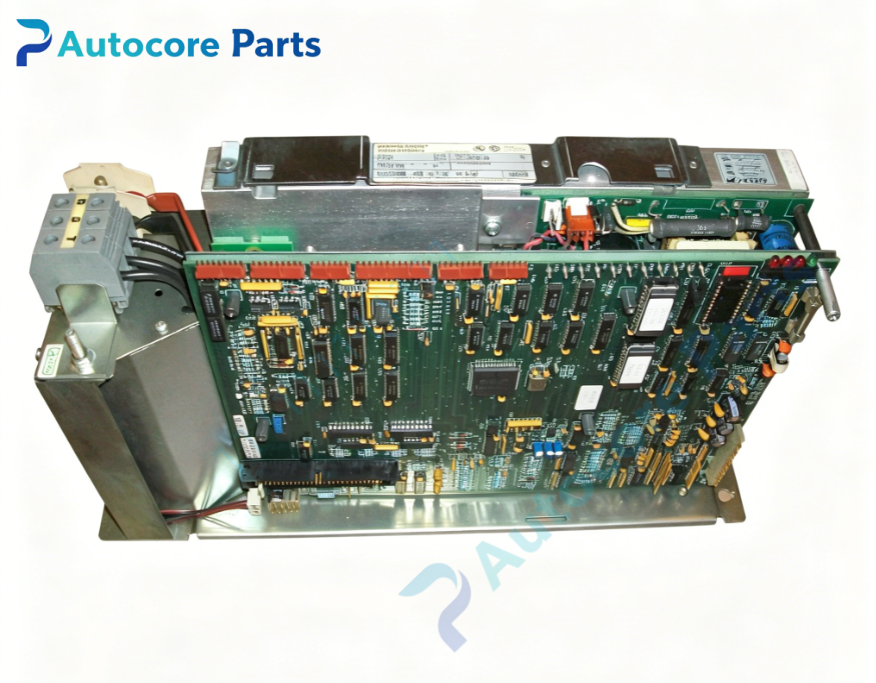

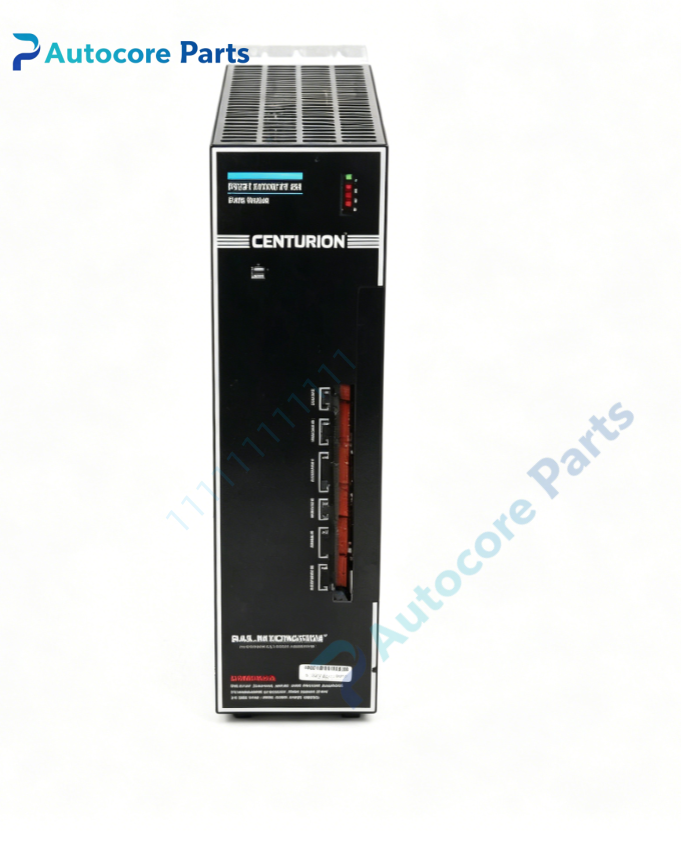

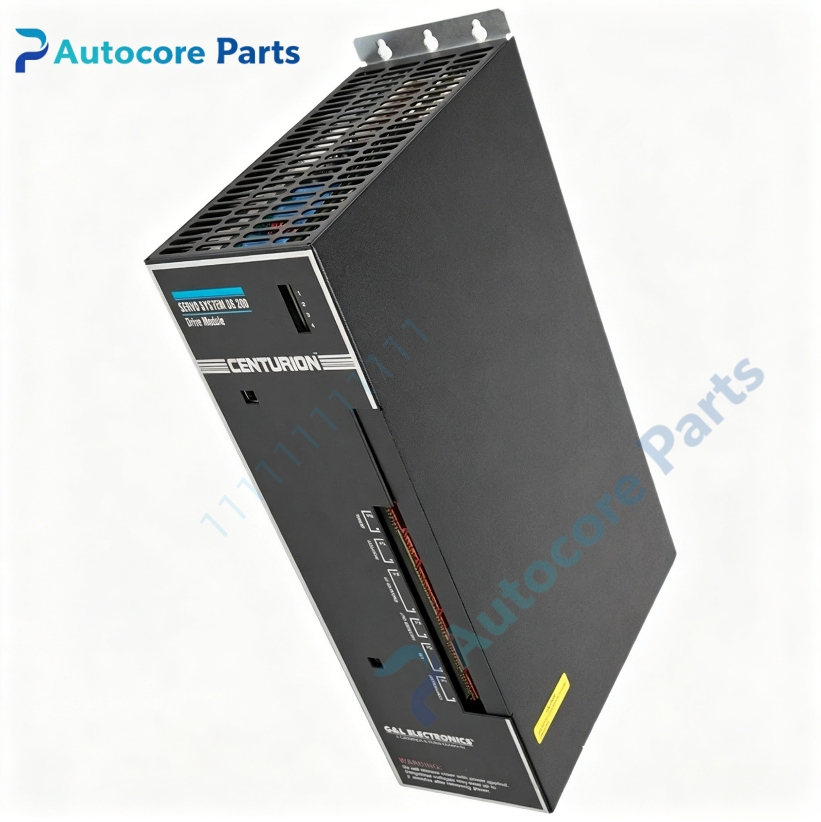

Giddings & Lewis 401-34205-22 Servo Drive Module

Technical Specifications

Model： 401-34205-22

Brand： Giddings & Lewis

Product Type: Cabinet mounted single-axis Centurion brushless servo amplifier for PiC900 CNC system

Module Feature:

Function: Centurion series single-axis servo drive for G&L PiC900 CNC platform. Receives analog or digital motion command signals from motion control boards, drives Giddings & Lewis brushless servo motors, performs closed-loop position, speed and torque control for feed axes on heavy horizontal boring mills and large machining centers.

Command interface: Differential analog command / digital interface

Feedback: Incremental encoder feedback for closed-loop position control

Onboard function: PWM power stage, built-in brake chopper for regenerative energy dissipation

LED indicators: POWER, READY, AXIS ALARM, FAULT diagnostic lights

Hardware self-diagnosis: DC bus overvoltage / undervoltage, overcurrent, overtemperature, encoder loss, motor winding short circuit detection

Programming software: PiCPro for motor parameter setup, servo gain tuning and fault history review

Electrical Parameters

AC Input: 230V 3-phase AC

Auxiliary control power: 24VDC

Continuous output current: 9A

Peak output current: 27A

Mechanical & Structure:

Mounting: Vertical DIN / backplate mounting inside electrical cabinet

Weight: 2.9kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +50℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy Centurion single axis servo drive

System compatibility

Compatibility description: 401-34205-22 belongs to Giddings & Lewis Centurion servo family. Compatible with PiC900 CNC controller, MMC / SMP400 motion control boards and G&L HSM series brushless servo motors. Widely used on heavy G&L horizontal boring mills.

Function

Function description: 401-34205-22 is Centurion single-axis brushless servo amplifier manufactured by Giddings & Lewis. It receives motion command signals from the CNC motion controller and converts DC bus voltage into three-phase AC output to drive brushless servo motors. Real-time encoder feedback enables high precision closed-loop axis positioning. Integrated brake chopper absorbs regenerative energy generated during rapid deceleration. It is legacy feed axis servo spare for heavy G&L CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Disconnect three-phase AC main power and 24VDC control power. Mount 401-34205-22 vertically on cabinet backplate. Wire three-phase AC input, shielded motor power cable and differential encoder feedback cable. Set motor parameters and tune servo gains via PiCPro. Run drive self-test, verify READY LED status, test axis jog, homing and positioning performance.

Interface

Interface list: 3-phase AC terminal block, motor power connector, encoder D-sub port, analog/digital command terminals,on-board POWER / READY / AXIS ALARM / FAULT LED indicators for Giddings & Lewis 401-34205-22.

Diagnostic

Troubleshooting: AXIS ALARM: Encoder cable failure, mechanical overload or tracking error over limit. FAULT LED lit: DC bus voltage anomaly, overcurrent, overheating or internal power circuit damage. Axis hunting: Improper servo gain setting, inadequate brake resistor or poor cable shielding.

Product Brief

Brief description: 401-34205-22 is Giddings & Lewis legacy Centurion single axis brushless servo amplifier,for closed-loop feed axis motion control on heavy CNC boring mills,discontinued CNC servo drive spare.
