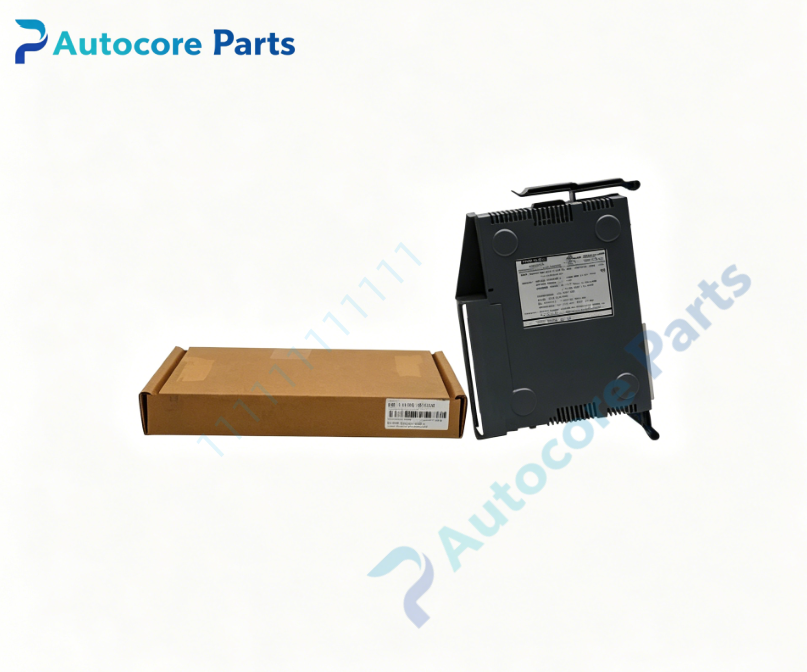

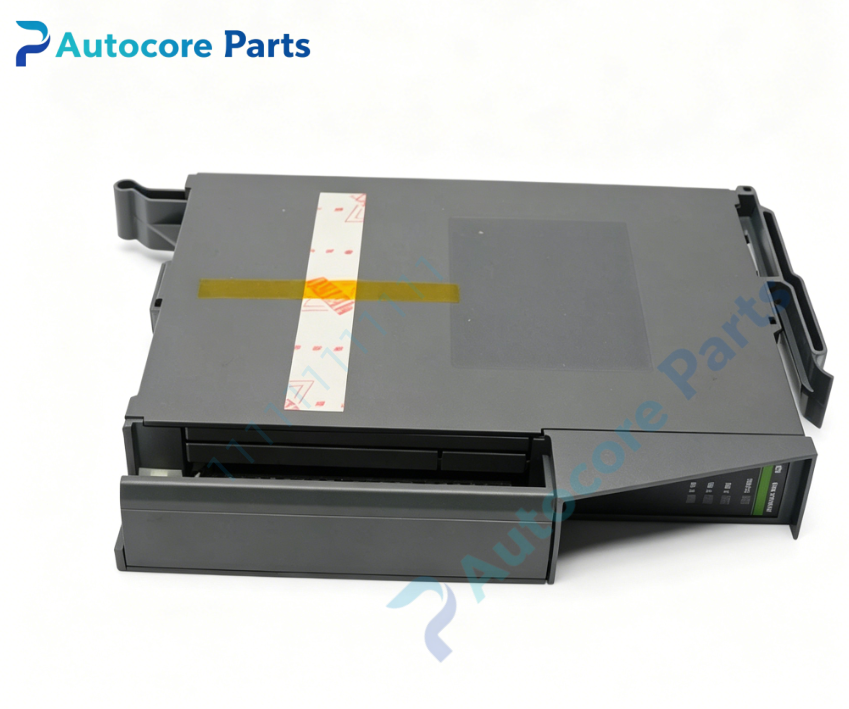

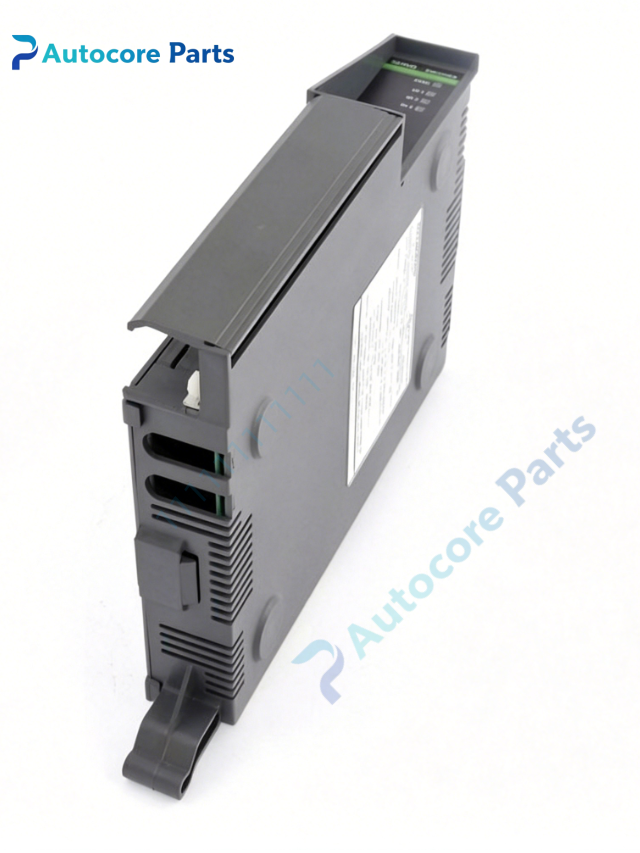

Giddings & Lewis M.1016.9338 Digital I/O Module

Technical SpecificationsModel：M.1016.9338 Brand：Giddings & Lewis Product Type: Single-slot plug-in PiC900 series digital I/O expansion module for PiC900 rack backplane

Module Feature:Function: Digital I/O expansion board for PiC900 CNC system, collects 24VDC digital input signals and outputs logic control signals to machine field actuators for heavy-duty boring mills and machining centers. Signal type: 24VDC sinking input, sourcing output Built-in address decoding logic for backplane communication Onboard hardware filter for noisy industrial environment to eliminate switch bounce Overcurrent and short-circuit protection for output channels LED indicators: OK, CHANNEL STATUS, FAULT diagnostic lights Hardware self-diagnosis: Backplane bus integrity detection, channel short-circuit alarm, overvoltage protection Programming software: PiCPro for I/O address assignment and channel diagnostics

Electrical ParametersBackplane supply:+5V from PiC900 rack backplane Field power:External 24VDC for field sensors and actuators Power consumption:Max 3.2W External 24VDC field power required

Mechanical & Structure:Mounting:Plug into PiC900 rack single slot Weight:0.22kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC I/O module

System compatibilityM.1016.9338 belongs to Giddings & Lewis PiC900 control platform. Compatible with PiC900 CPU processor boards, backplane, analog I/O and SERCOS communication modules. Widely deployed on G&L 70A horizontal boring mills and PMC CNC boring machines.

FunctionM.1016.9338 is PiC900 digital I/O expansion module manufactured by Giddings & Lewis. It exchanges discrete logic signals between PiC900 CPU and machine field devices. It reads limit switches, safety interlock and pushbutton signals, and drives solenoid valves, relays and indicator lamps. Hardware filter suppresses signal jitter caused by mechanical switches and electrical interference. It is common spare I/O card for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power and external 24VDC field supply. Insert M.1016.9338 module into PiC900 backplane slot and lock retainer. Separate high-power wiring and signal wiring to reduce EMI interference. Configure I/O address mapping via PiCPro software. Power on rack and verify each input and output channel function.

InterfacePiC900 backplane gold-edge connector,field wiring terminal block,on-board OK / CHANNEL STATUS / FAULT LED indicators for Giddings & Lewis M.1016.9338.

DiagnosticChannel no response:Check external 24VDC field supply, wiring polarity or I/O address configuration. FAULT LED lit:Channel short circuit, overcurrent or backplane communication failure. Unstable signal:Insufficient cable shielding or mechanical switch contact degradation.

Product BriefM.1016.9338 is Giddings & Lewis legacy PiC900 digital I/O expansion module,for interlock,switch signal collection and auxiliary actuator control on heavy CNC boring mills,discontinued CNC I/O spare card.
