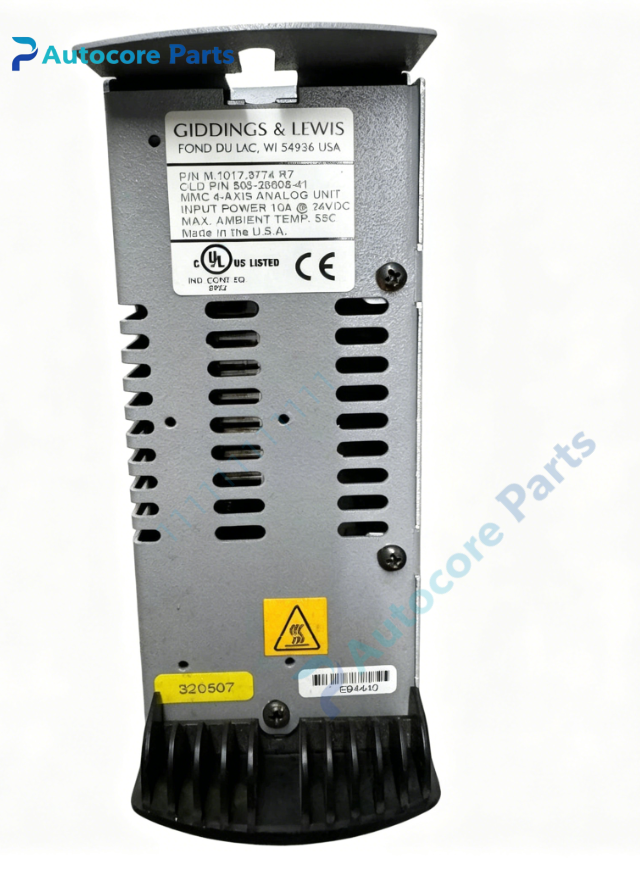

Giddings & Lewis M.1017.3774 MMC 4 Axis Analog Unit

Technical SpecificationsModel：M.1017.3774 Brand：Giddings & Lewis Product Type: MMC series 4-axis analog motion control unit for heavy CNC machine tool axis drive

Module Feature:Function: MMC 4-axis analog motion controller, generates analog velocity/torque commands for up to 4 servo axes, supports real-time closed-loop motion control for G&L horizontal boring mills and machining centers. Axis capacity:4 independent servo axes Signal type: ±10V analog command output Communication: SERCOS interface + Ethernet port for parameter configuration and diagnosis Feedback:Accept differential incremental encoder position feedback per axis Onboard processor:Local motion processor to handle axis interpolation and position loop calculation LED indicators: OK, READY, COM, AXIS FAULT diagnostic lights Hardware self-diagnosis:Encoder loss detection, tracking error monitoring, overrange signal detection, communication fault diagnosis Programming software:PiCPro for axis parameter setup and commissioning

Electrical ParametersRated supply:24VDC control power Analog signal range:±10V Power consumption:Max 12W

Mechanical & Structure:Mounting:Cabinet rack mount Weight:2.4kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy MMC motion control module

System compatibilityM.1017.3774 belongs to Giddings & Lewis MMC motion control family. Compatible with PiC900 CNC system and matching Centurion analog / SERCOS servo drives. Widely fitted on G&L 70A horizontal boring mills and PMC CNC boring machines for X/Y/Z/B axes.

FunctionM.1017.3774 is MMC 4-axis analog motion control unit manufactured by Giddings & Lewis. It executes axis closed-loop control and outputs ±10V analog speed reference signals to servo amplifiers. Each channel reads encoder feedback signal and calculates position tracking error. SERCOS and Ethernet ports support network communication, parameter download and remote fault diagnosis. It is critical multi-axis motion spare controller for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off module 24VDC control power. Mount M.1017.3774 in electrical cabinet rack. Connect shielded analog command cables, encoder feedback cables and SERCOS/Ethernet communication cable. Configure axis resolution, gain and motor parameters in PiCPro software. Power on and test axis homing and positioning performance.

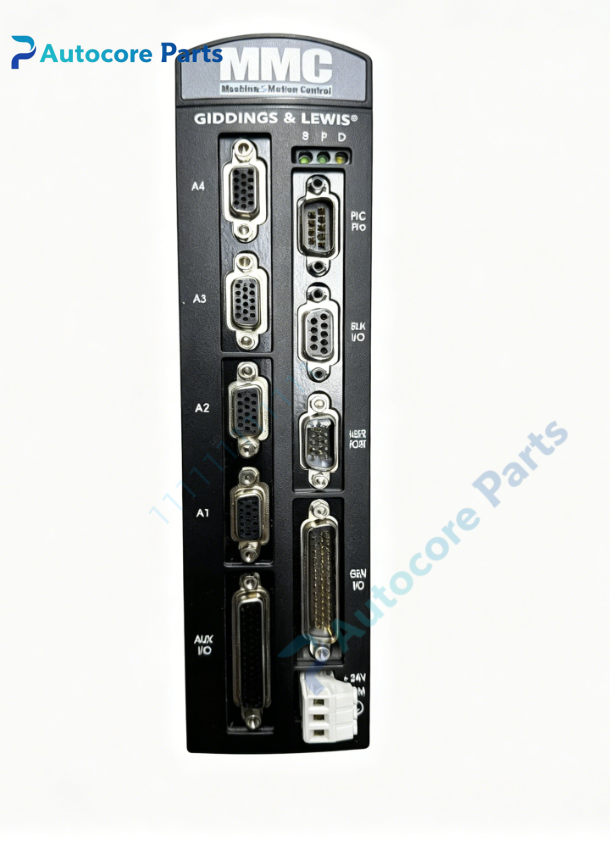

InterfaceTerminal block for analog command,multi-channel encoder connectors,SERCOS fiber port,Ethernet diagnostic port,on-board OK / READY / COM / AXIS FAULT LED indicators for Giddings & Lewis M.1017.3774.

DiagnosticAxis tracking error alarm:Check encoder wiring, loose coupling or incorrect servo gain setting. COM fault:SERCOS/Ethernet cable damage, connector loose or network configuration error. AXIS FAULT LED lit:Analog signal overrange, encoder signal loss or axis overload.

Product BriefM.1017.3774 is Giddings & Lewis legacy MMC 4-axis analog motion control unit,with SERCOS and Ethernet interface for multi-axis closed-loop control on heavy CNC boring mills,discontinued CNC motion spare module.
