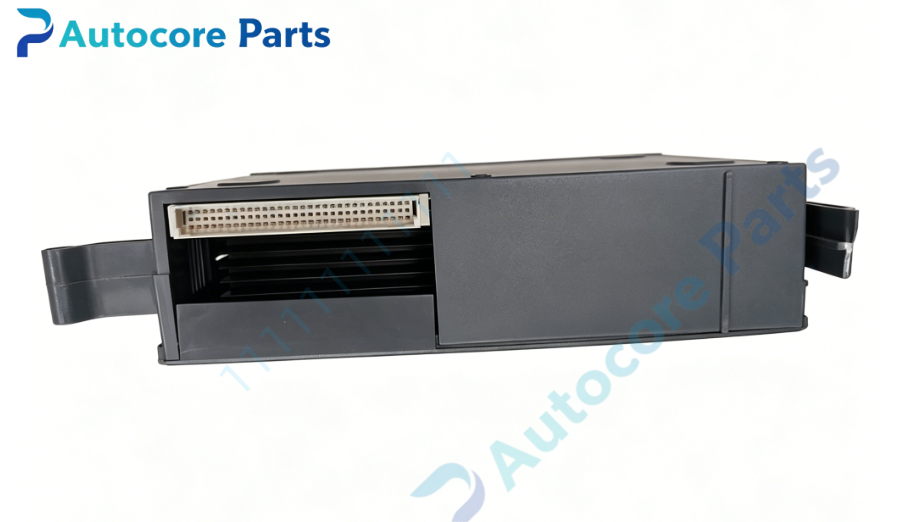

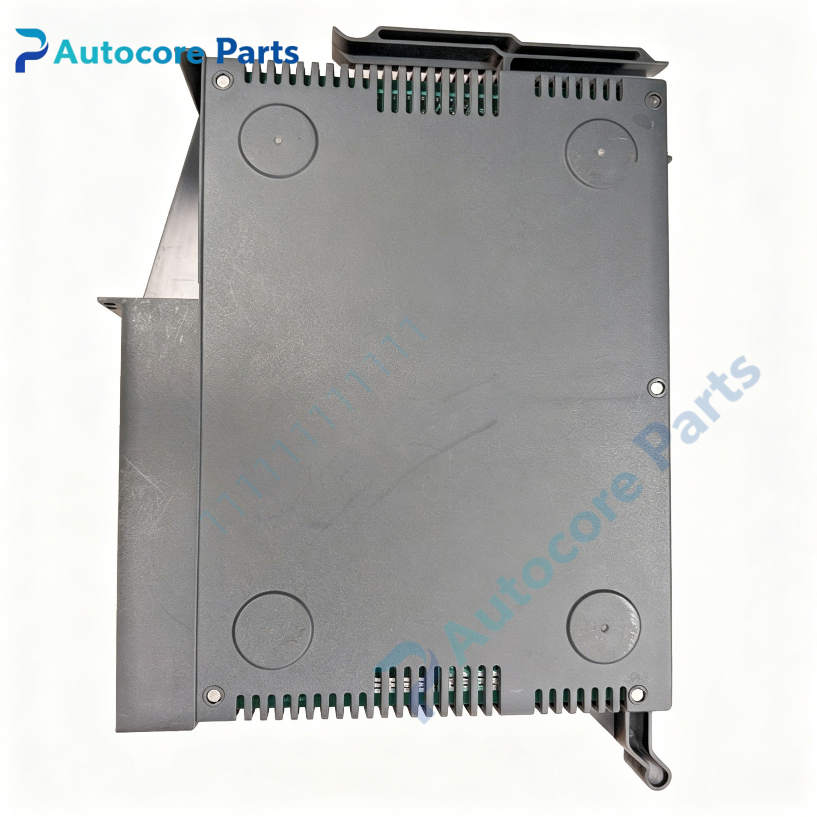

Giddings & Lewis 502-02813-00 Digitizing Module

Technical SpecificationsModel：502-02813-00 Brand：Giddings & Lewis Product Type: Rack mount digitizing input PCB assembly for legacy NumeriPath CNC system

Module Feature:Function: Digitizing analog input module for G&L NumeriPath CNC platform. Converts analog sensor and transducer signals into digital data for CNC controller, used for probe measurement, analog position feedback and analog signal sampling on heavy horizontal boring mills and large machining centers. Signal processing: Multi-channel analog signal sampling, analog-to-digital conversion Logic circuit: TTL logic chips for data latch and bus interface Bus: Parallel backplane bus to send digitized data to CNC main CPU LED indicators: POWER, ACT, FAULT diagnostic lights Hardware self-diagnosis: Analog channel integrity check, A/D conversion error detection, backplane bus communication test Programming software: G&L proprietary CNC software for channel calibration and diagnostic testing

Electrical ParametersSupply: +5VDC and ±15VDC analog reference supply Power consumption:Max 11W

Mechanical & Structure:Mounting: Rack slot mount with gold finger connector Weight:1.2kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +55℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC digitizing input module

System compatibility502-02813-00 belongs to Giddings & Lewis NumeriPath CNC family. Compatible with matching rack backplane, executive CPU and operator station boards. Widely used on vintage heavy G&L horizontal boring mills for probe and analog measurement functions.

Function502-02813-00 is digitizing input module manufactured by Giddings & Lewis. It acquires analog signals from machine probes, transducers and analog sensors, converts analog signals into digital values via onboard A/D converter, then transmits digitized data to CNC main processor over backplane bus. It enables part digitizing, workpiece probing and analog monitoring functions for heavy machine CNC control.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack +5V and ±15V power supply. Insert 502-02813-00 board into rack slot and secure gold finger connector. Wire analog input sensors with shielded cables. Perform channel calibration via CNC software, run self-test and verify probe/analog sampling function.

InterfaceBackplane gold finger connector,multi-channel analog input terminal block,on-board POWER / ACT / FAULT LED indicators for Giddings & Lewis 502-02813-00.

DiagnosticNo analog reading:Check ±15V reference supply, sensor wiring or damaged A/D channel. FAULT LED lit:Backplane communication failure, A/D conversion error or analog signal overload. Unstable sampled value:Shielding failure, ground loop interference or transducer fault.

Product Brief502-02813-00 is Giddings & Lewis legacy digitizing input module,for analog signal acquisition and A/D conversion for heavy CNC boring mill probing and digitizing functions,discontinued CNC analog input spare PCB.
