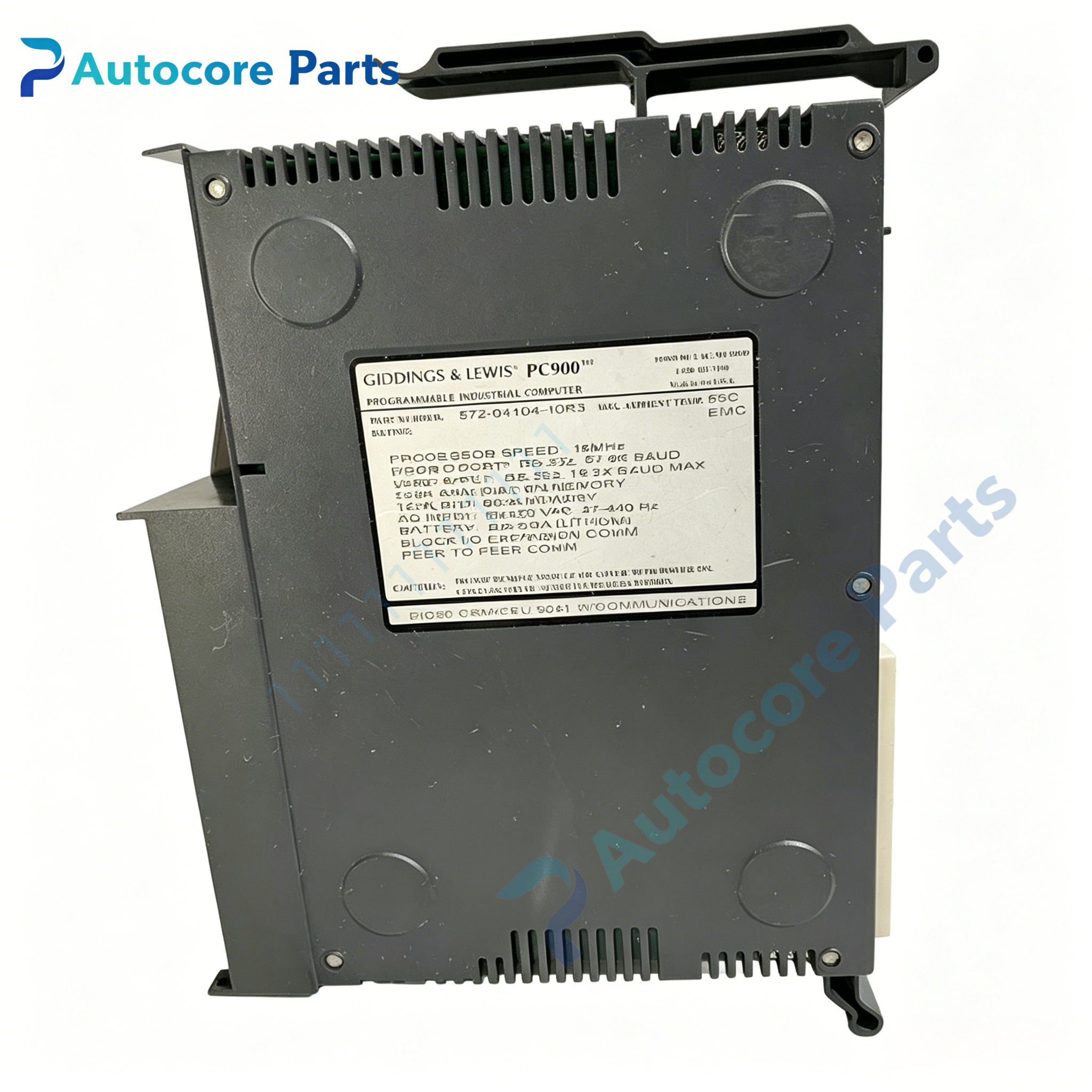

Giddings & Lewis 502-04104-10 Encoder Feedback Module

Technical SpecificationsModel：502-04104-10 Brand：Giddings & Lewis Product Type: Single-slot plug-in PiC900 series multi-channel encoder position feedback module for PiC900 rack backplane

Module Feature:Function: High-speed encoder signal acquisition board for PiC900 CNC system, receives differential incremental encoder signals from machine axes, converts and transmits position data to PiC900 CPU for closed-loop motion control. Signal type: Differential line driver encoder input (A/B/Z phase) Channel: Multi-axis encoder input channels Signal isolation: Galvanic isolation between encoder field wiring and rack backplane Count resolution: High frequency pulse counting for high speed axis movement LED indicators: OK, ACT, FAULT diagnostic lights Hardware self-diagnosis: Encoder loss detection, signal amplitude monitoring, phase error check, backplane bus communication diagnosis Programming software: PiCPro for axis encoder parameter configuration and signal debug

Electrical ParametersBackplane supply:+5V from PiC900 rack backplane Encoder supply:5V differential encoder power output for field transducers Power consumption:Max 3.5W

Mechanical & Structure:Mounting:Plug into PiC900 rack single slot Weight:0.22kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC feedback module

System compatibility502-04104-10 belongs to Giddings & Lewis PiC900 control platform. Compatible with PiC900 backplane, PiC900 CPU boards and Centurion servo drives. Widely installed on G&L 70A horizontal boring mills and PMC CNC boring machines for X/Y/Z axis encoder feedback acquisition.

Function502-04104-10 is PiC900 encoder feedback module manufactured by Giddings & Lewis. It captures A/B/Z phase differential encoder signals from machine axes and performs pulse counting and position calculation. It feeds real-time axis position data to the CNC controller to complete closed-loop position control. Galvanic isolation suppresses electrical noise interference from machine power cabinet. It is critical spare position feedback board for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert 502-04104-10 module into PiC900 backplane slot and lock retainer. Connect shielded differential encoder cables to terminal connectors. Set encoder resolution and axis count direction parameters in PiCPro software. Power rack on and verify encoder reading and axis homing function.

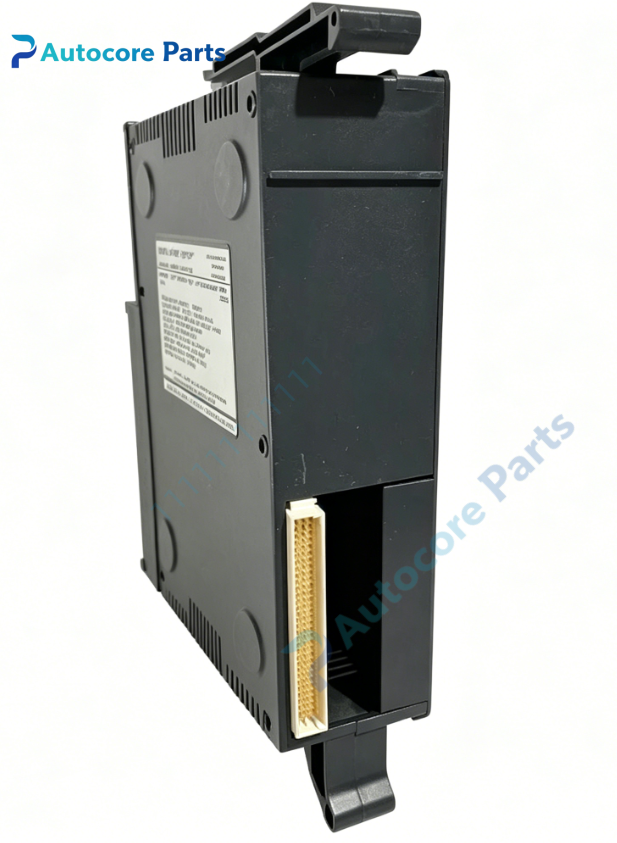

InterfacePiC900 backplane gold-edge connector,multi-channel encoder terminal block,on-board OK / ACT / FAULT LED indicators for Giddings & Lewis 502-04104-10.

DiagnosticNo encoder position reading:Check encoder 5V supply, cable shielding, wiring polarity or module seating. FAULT LED lit:Encoder signal loss, phase mismatch or backplane communication fault. Position drift:Damaged encoder cable, loose connector or encoder hardware failure.

Product Brief502-04104-10 is Giddings & Lewis legacy PiC900 multi-channel encoder feedback module,for axis position signal acquisition on heavy CNC boring mills and machining centers,discontinued CNC spare card.
