Giddings & Lewis DSA-015-230-S Servo Amplifier

Technical SpecificationsModel：DSA-015-230-S Brand：Giddings & Lewis Product Type: Centurion series single-axis SERCOS AC servo drive for FSM / XSM brushless servo motors

Module Feature:Function: Single axis servo amplifier, receives real-time motion commands from CNC via SERCOS fiber bus, drives G&L brushless servo motor for machine axis closed-loop position and speed control. Input voltage:230V 3-phase AC Continuous output current:15A Communication interface:SERCOS fiber interface Control mode:Position loop, velocity loop, torque loop Feedback support:High resolution incremental encoder LED indicators:OK, READY, FAULT, SERCOS LINK diagnostic lights Hardware self-diagnosis:Overcurrent, overvoltage, undervoltage, overheat, encoder loss, SERCOS link failure detection Programming software:PiCPro for drive parameter setup and commissioning

Electrical ParametersMain power supply:230V 3-phase AC Control power:24VDC auxiliary control supply Continuous output:15A Power consumption:Depends on motor load

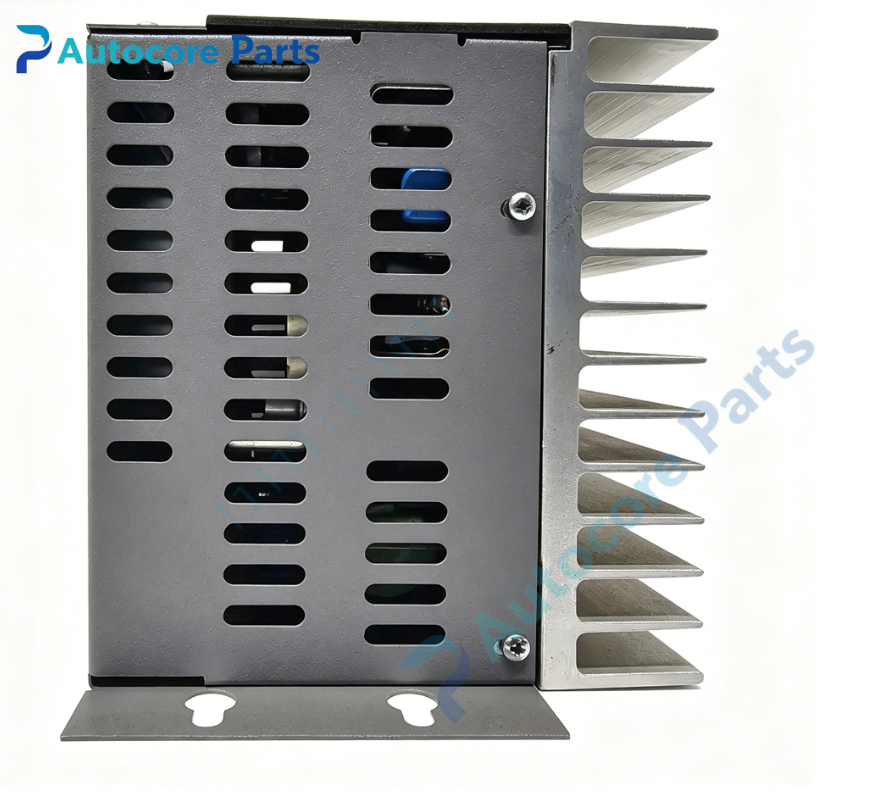

Mechanical & Structure:Mounting:DIN rail or cabinet panel mounting Weight:3.8kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +50℃ Ambient humidity:5~85% non-condensing Certification:CE Status:Manufacturer discontinued legacy CNC servo drive

System compatibilityDSA-015-230-S belongs to Giddings & Lewis Centurion servo family. Compatible with PiC900 SERCOS communication module, XSM and FSM series G&L servo motors. Widely used on G&L 70A horizontal boring mills and PMC CNC boring machines.

FunctionDSA-015-230-S is Centurion SERCOS servo drive manufactured by Giddings & Lewis. It receives motion instructions from PiC900 CNC controller over SERCOS fiber ring. The drive outputs three-phase variable frequency AC power to brushless servo motor and reads encoder position feedback to close the control loop. Built-in multi-level protection prevents damage from overcurrent, overvoltage and overheating. It is the axis power amplifier for legacy heavy G&L CNC machine tools.

InstallationFollow lockout/tagout safety procedure before installation. Disconnect main three-phase power and 24V control supply. Mount DSA-015-230-S in electrical cabinet. Connect 230V three-phase main power, motor power cable, encoder feedback cable and SERCOS fiber cable. Configure motor parameters in PiCPro software. Power on and verify SERCOS connection, then perform axis homing and motion test.

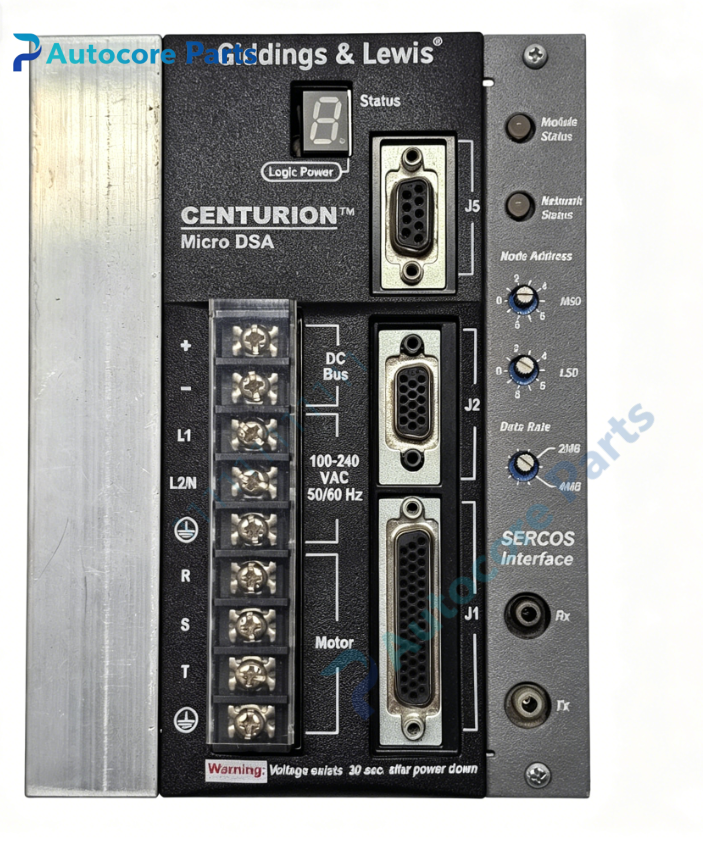

Interface3-phase power terminal block,motor output terminal,encoder feedback connector,SERCOS fiber port,control panel multi-status LED indicators for Giddings & Lewis DSA-015-230-S.

DiagnosticServo unable to ready:Check 24V control power, SERCOS fiber link or drive enable signal. Overcurrent fault:Motor winding short, cable damage or mechanical axis binding. SERCOS link down:Fiber contamination, broken fiber or wrong ring topology.

Product BriefDSA-015-230-S is Giddings & Lewis legacy Centurion single-axis SERCOS servo amplifier,with 15A continuous output for XSM/FSM servo motors on heavy CNC boring mills,discontinued machine tool servo spare.
