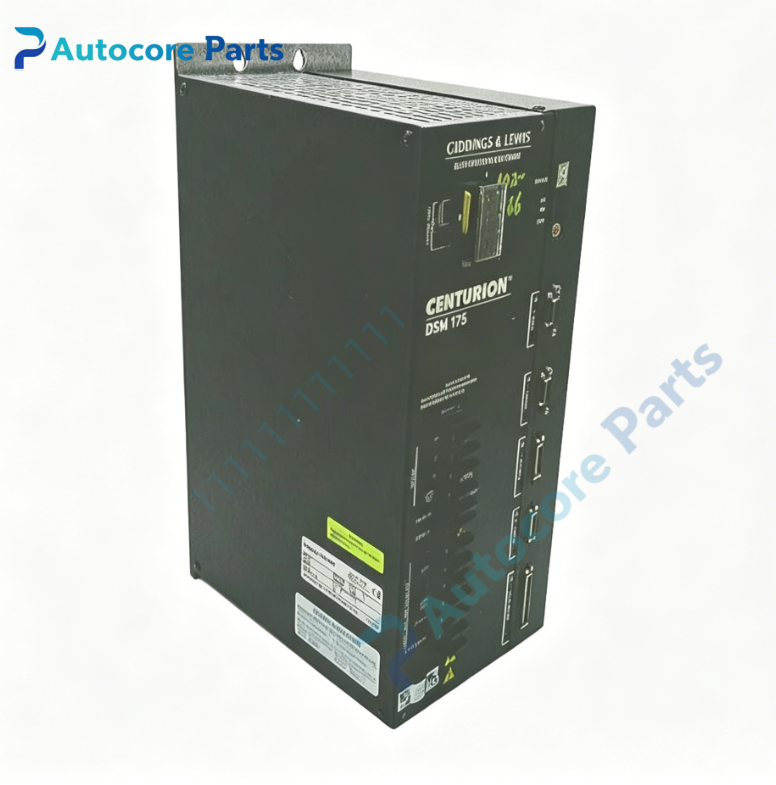

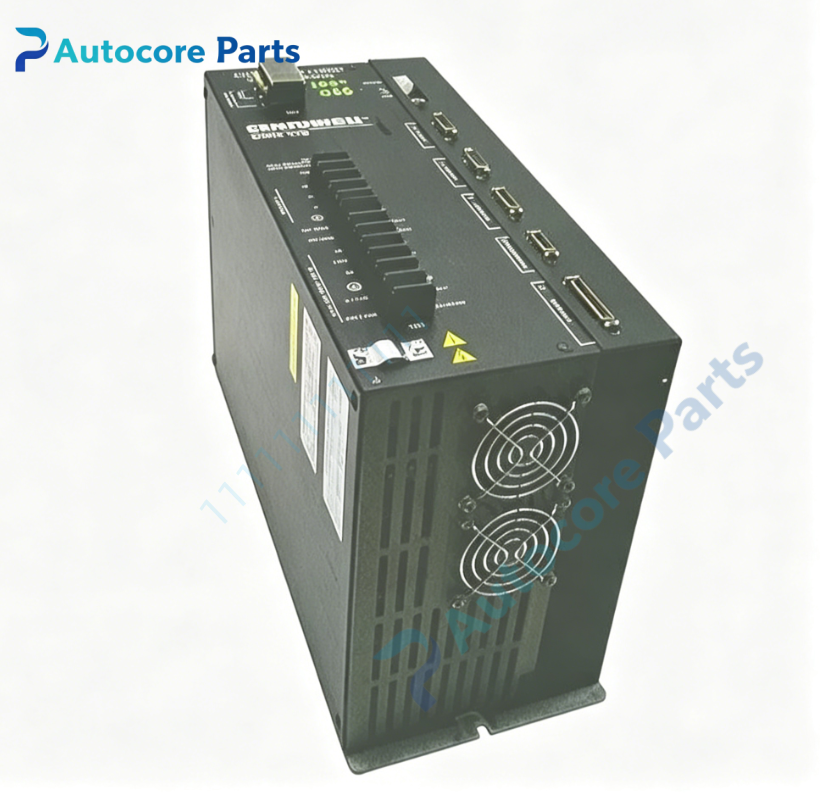

Giddings & Lewis DSM175 Centurion DSM Servo Drive

Technical Specifications

Model： DSM175, Alternate PN: M.1015.7924 / 401-34403-00

Brand： Giddings & Lewis

Product Type: Cabinet mount Centurion DSM single axis AC servo drive

Module Feature:

Function: Single-axis servo drive for G&L PiC900 CNC platform. Receives real-time motion commands from MMC motion control boards, drives G&L brushless servo motors and performs closed-loop speed and position control for heavy horizontal boring mills and large machining centers.

Input voltage: 230V single-phase / 3-phase AC

Power rating: 3.0kW (1φ), 7.5kW (3φ)

Current: Continuous 15A, peak 50A

Command interface: SERCOS fiber ring bus and ±10V analog velocity command

Feedback: Differential incremental encoder input for closed-loop control

Built-in function: DSP servo controller, dynamic shunt brake interface

LED indicators: POWER, READY, AXIS FAULT, FAULT diagnostic lights

Hardware self-diagnosis: Overcurrent, DC bus overvoltage/undervoltage, overtemperature, motor short circuit, encoder loss detection

Programming software: PiCPro / DSMPro for motor parameter setup, servo gain tuning and fault log reading

Electrical Parameters

AC Input: 230V AC

Auxiliary control supply: 24VDC

External brake resistor: Max 10.0kW peak shunt power

Mechanical & Structure:

Mounting: Cabinet backplate mount

Weight: 3.1kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +50℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy Centurion DSM servo drive

System compatibility

Compatibility description: DSM175 belongs to Giddings & Lewis Centurion servo family. Compatible with PiC900 CPU, MMC motion control modules and G&L series brushless servo motors. Widely fitted on heavy G&L horizontal boring mills.

Function

Function description: DSM175 is Centurion DSM single-axis servo drive manufactured by Giddings & Lewis. It supports dual command modes including SERCOS fiber digital ring and ±10V analog signal. It converts DC bus power into regulated three-phase output to drive brushless servo motors, reads encoder feedback signal to achieve closed-loop position and speed control. It is used for high power feed axes of heavy CNC boring mills. It is legacy servo amplifier spare for heavy G&L CNC machine tools.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Disconnect main AC power and 24VDC control power. Mount DSM175 on cabinet backplate. Connect AC input cable, shielded motor power cable, encoder feedback cable and SERCOS/analog command wiring. Install external brake resistor if needed. Configure motor parameters and servo gains via PiCPro or DSMPro. Run drive self-test and verify axis homing and motion performance.

Interface

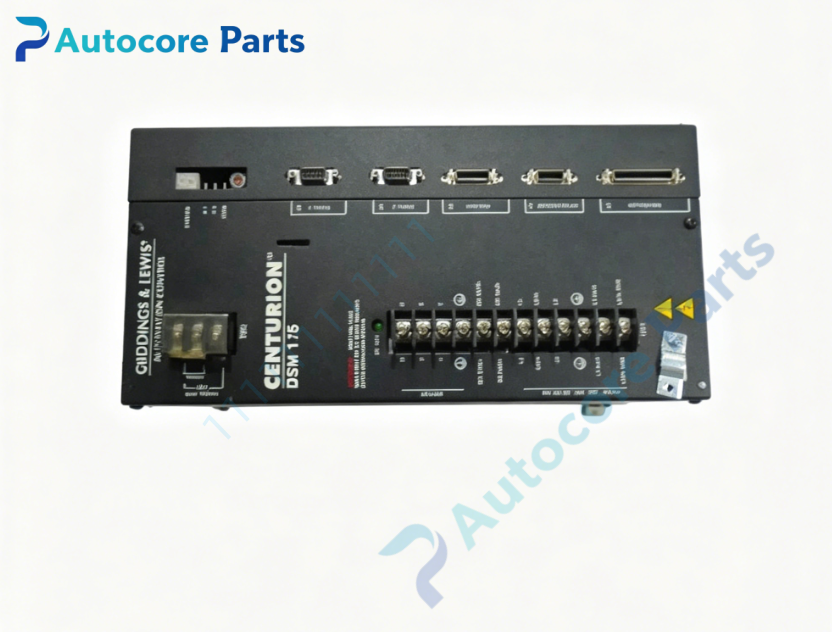

Interface list: AC power terminal block, motor power terminal, encoder D-sub connector, SERCOS fiber ports,on-board POWER / READY / AXIS FAULT / FAULT LED indicators for Giddings & Lewis DSM175.

Diagnostic

Troubleshooting: AXIS FAULT: Encoder signal missing, mechanical overload, tracking error exceed threshold. FAULT LED lit: Overtemperature, DC bus voltage abnormality or internal hardware damage. Intermittent vibration: Improper servo gain, insufficient brake resistance or poor shielding.

Product Brief

Brief description: DSM175 is Giddings & Lewis legacy Centurion DSM single axis servo drive,with SERCOS fiber and ±10V analog dual command interface for heavy CNC boring mill 7.5kW servo motor control,discontinued CNC servo amplifier spare.
