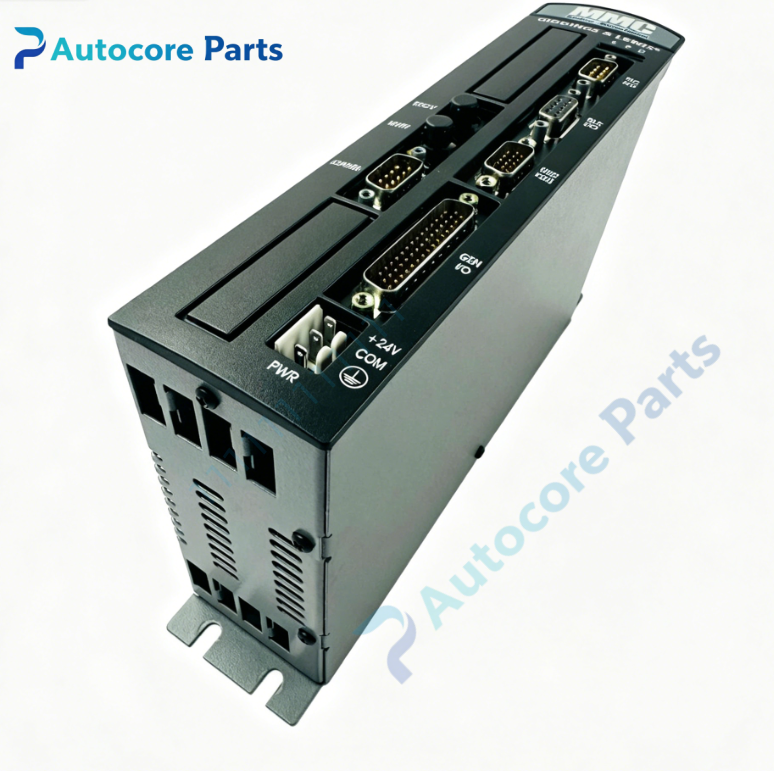

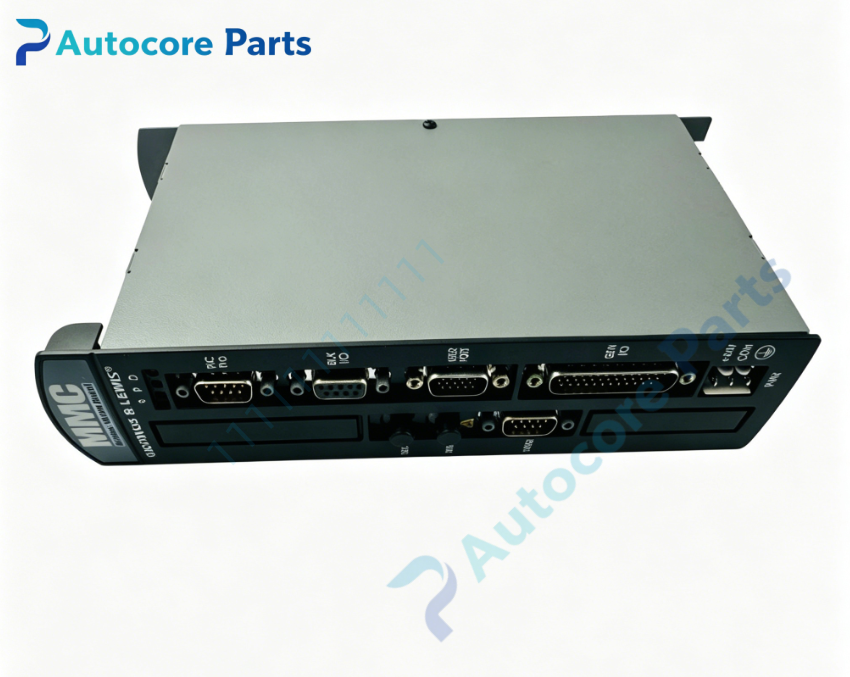

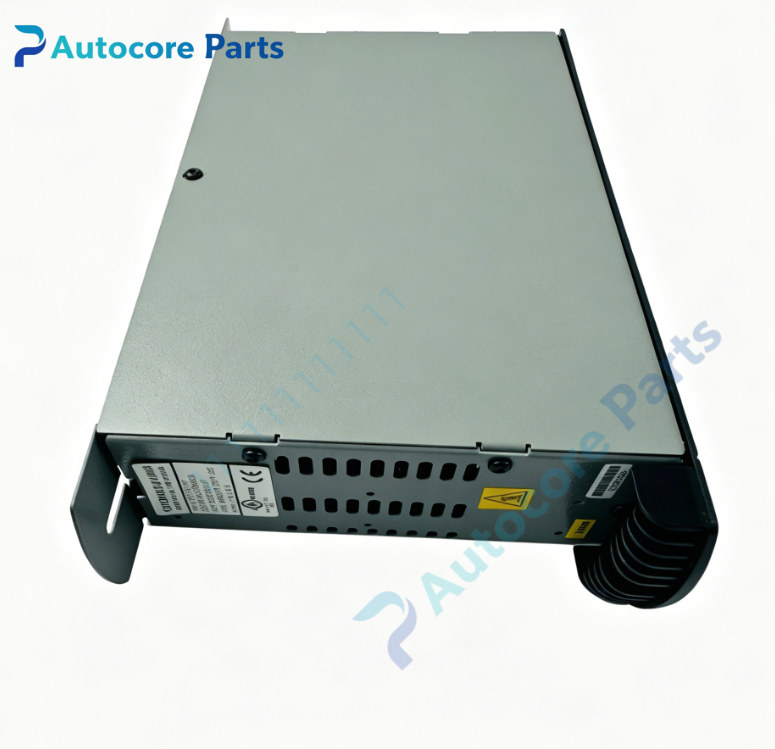

Giddings & Lewis M.1017.3770 MMC 4 Axis Analog Motion Unit

Technical Specifications

Model： M.1017.3770

Brand： Giddings & Lewis

Product Type: Rack mount MMC four-axis analog motion control unit for PiC900 CNC system

Module Feature:

Function: Four-axis analog motion control module for G&L PiC900 CNC platform. It receives trajectory commands from PiC900 main CPU, executes real-time closed-loop position and velocity servo calculation for up to four axes, outputs ±10V analog velocity commands and reads differential A/B/Z incremental encoder feedback for heavy horizontal boring mills and large machining centers.

Signal interface: 4 channels ±10V analog velocity command output, 4 groups differential A/B/Z incremental encoder input

Onboard components: High-speed motion processor, battery backed RAM for axis servo parameters and tuning data

Bus interface: PiC900 backplane parallel bus for communication with main CPU

LED indicators: OK, RUN, AXIS FAULT, FAULT diagnostic lights

Hardware self-diagnosis: Encoder signal loss detection, axis tracking error monitoring, analog output overrange check, watchdog fault detection

Programming software: PiCPro for motor parameter configuration, multi-axis servo gain tuning and module fault diagnosis

Electrical Parameters

Backplane supply: +5VDC

Power consumption: Max 14W

Backup memory: Lithium battery to retain axis servo parameters when power is cut off

Mechanical & Structure:

Mounting: PiC900 rack slot mount with gold finger edge connector

Weight: 0.32kg

Protection class: IP20

Environmental:

Operating temperature: 0℃ ~ +60℃

Ambient humidity: 5~85% non-condensing

Certification: CE

Status: Manufacturer discontinued legacy PiC900 MMC four-axis analog motion control unit

System compatibility

Compatibility description: M.1017.3770 belongs to Giddings & Lewis PiC900 MMC motion family. Compatible with PiC900 CPU, analog Centurion servo drives and G&L XSM/FSM series servo motors. Widely fitted on heavy G&L horizontal boring mills.

Function

Function description: M.1017.3770 is MMC four-axis analog motion control unit manufactured by Giddings & Lewis. It performs synchronized closed-loop servo control for up to four machine axes. It receives motion instructions from PiC900 main controller, calculates real-time axis position error, outputs ±10V analog speed commands to analog servo amplifiers, and collects encoder feedback signals. The onboard backup battery saves servo tuning parameters during power interruption. It is legacy multi-axis motion spare for heavy G&L CNC boring mills.

Installation

Installation steps: Follow lockout/tagout safety procedure before installation. Cut off rack +5V backplane power. Insert M.1017.3770 module into PiC900 rack slot and lock retainer. Inspect backup battery condition. Wire shielded analog command cables and differential encoder cables. Configure axis parameters and tune servo gains via PiCPro. Run self-test and verify axis jog, homing and synchronized multi-axis motion.

Interface

Interface list: PiC900 backplane gold finger connector, analog screw terminal block, multi-channel encoder ports,on-board OK / RUN / AXIS FAULT / FAULT LED indicators for Giddings & Lewis M.1017.3770.

Diagnostic

Troubleshooting: AXIS FAULT: Encoder signal missing, mechanical overload or axis tracking error exceeds limit. FAULT LED lit: Backplane communication failure, analog output short circuit or onboard battery failure. Intermittent axis shake: Poor cable shielding, ground loop interference or improperly tuned servo parameters.

Product Brief

Brief description: M.1017.3770 is Giddings & Lewis legacy PiC900 MMC four-axis analog motion control unit,with ±10V analog command and incremental encoder feedback for heavy CNC boring mill multi-axis synchronized closed-loop servo control,discontinued CNC motion spare module.
