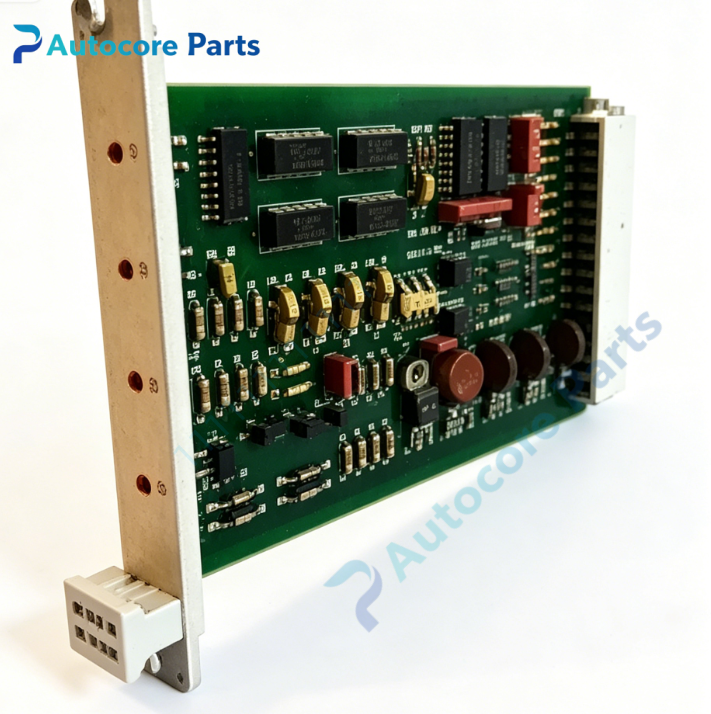

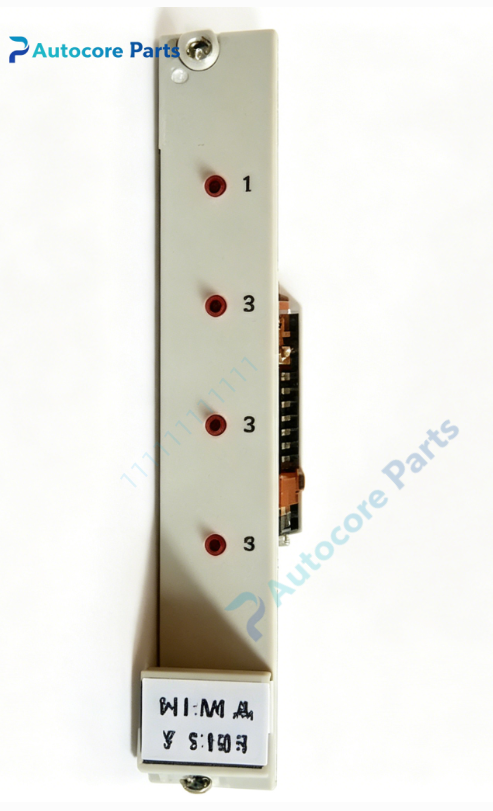

HIMA F1101 Switching Amplifier Module

Technical Specifications

Model:F1101

Brand:HIMA

Safety certification:SIL3,IEC61508,TÜV certified

Signal:64-channel safety digital input

Input voltage:24V DC

Power supply:24V DC

Diagnosis:Short circuit protection and wiring monitoring

Mounting:Subrack plug-in installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.08kg

Certification:CE

System compatibility:Matches HIMA HIMatrix F60 safety system,collects discrete signals from contact switches and two-wire proximity sensors,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function:SIL safety switching amplifier module.It receives 24V DC discrete signals from field contact and proximity switches,amplifies and transmits safety signals to safety controller,equipped with 8 groups short-circuit protected power supply outputs.

Installation:Plug into HIMatrix F60 safety subrack,wire field sensors to module terminals,configure parameters via ELOPII engineering software.

Interface:

‑64 channels digital input terminals

‑8 groups short-circuit protected power supply outputs

‑Backplane bus connector for data exchange

‑LED indicators for channel status and fault

Circuit feature:1oo2 dual processor safety architecture,built-in hardware self-test,short-circuit protection,strong anti-interference,meets SIL3 functional safety requirements for hazardous industrial environment.

Feature:HIMA F60 system dedicated switching amplifier module F1101. Common faults:channel circuit burnout,signal amplification abnormal,power supply short circuit failure.Confirm F60 system version before replacement.

Diagnostic:Module or wiring fault triggers fault alarm;controller marks corresponding input signal invalid and executes safety interlock logic.

Built‑in function

F1101 collects field discrete safety signals for emergency shutdown and fire protection interlock,widely used for chemical and power plant safety spare replacement.

Product Brief

F1101 is HIMA HIMatrix F60 series SIL3 switching amplifier module with 64 safety digital inputs. Verify rack compatibility before ordering. Test signal acquisition and short-circuit protection function during commissioning. ESD anti‑static protection shall be followed during installation.
