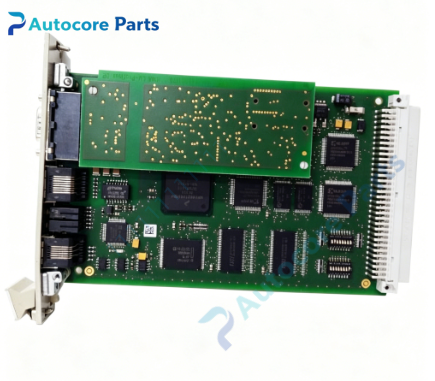

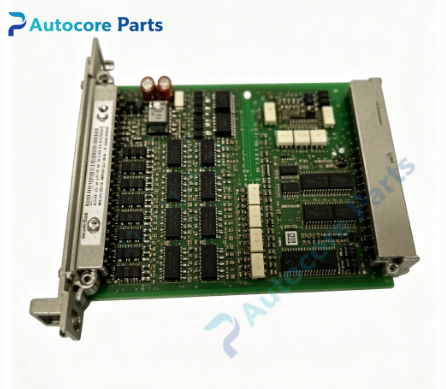

HIMA F3224 Intrinsically Safe Digital Input Modul

Technical Specifications

Model:F3224

Brand:HIMA

Safety certification:SIL2,IEC61508,TÜV certified,ATEX Ex i

Channel:4-channel intrinsically safe digital input

Input signal:Contact or NAMUR proximity sensor signal

Diagnosis:Wire break and short circuit monitoring for field circuits

Mounting:Plug-in subrack installation,4TE width

Protection class:IP20

Power supply:5V DC /24V DC

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:0.40kg

Certification:CE,ATEX

System compatibility:Designed for HIMA HIQuad H41q / H51q safety control system,collects signals from field NAMUR sensors and contact switches located in hazardous areas,widely used in petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function:SIL2 intrinsically safe digital input module.It receives safety signals from hazardous area NAMUR sensors and contact switches,provides galvanic isolation between hazardous zone and safe control cabinet,continuously monitors field wiring for wire break and short circuit faults.

Installation:Plug into HIQuad H41q/H51q rack backplane,wire field intrinsically safe sensors to module terminals,complete hardware configuration via ELOPII engineering software.

Interface:

‑4 channels intrinsically safe input terminals

‑Backplane bus connector for power and data exchange

‑LED indicators for channel status and fault

Circuit feature:Intrinsically safe galvanic isolation design,continuous hardware self-test,explosion-proof safety certification,strong anti-electromagnetic interference,meets IEC61508 functional safety requirements for hazardous industrial environment.

Feature:HIQuad system 4-channel Ex i SIL2 safety input module F3224. Common faults:isolation circuit damage,signal acquisition abnormal,connector pin failure.Confirm H41q/H51q system version before replacement.

Diagnostic:Module or wiring fault triggers channel fault alarm;controller marks corresponding input signal invalid and executes safety interlock logic.

Built‑in function

F3224 collects safety signals from hazardous area field devices for safety interlock and emergency shutdown protection,widely used for chemical and power plant safety spare replacement.

Product Brief

F3224 belongs to HIMA HIQuad I/O family,plug-in 4-channel SIL2 Ex i intrinsically safe digital input module for H41q/H51q safety subrack. Verify rack compatibility and explosion-proof zone requirements before ordering. Test signal acquisition and line diagnosis function during commissioning. ESD anti‑static protection shall be followed during installation.
