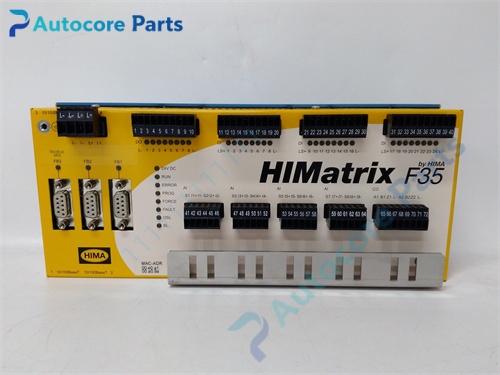

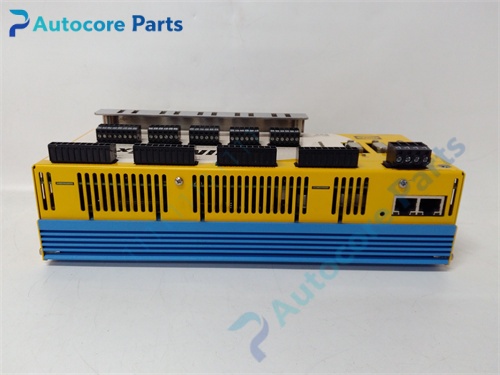

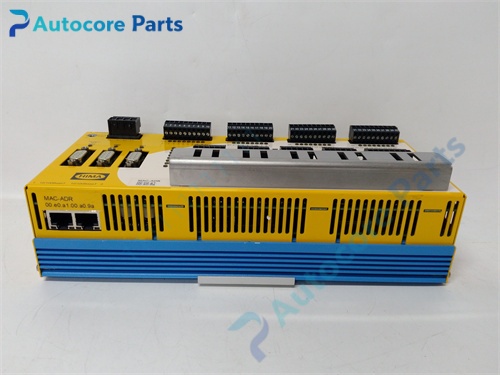

HIMatrix 982200416 F35 Safety Controller

Technical Specifications

Model:982200416

Brand:HIMA(HIMatrix)

Safety certification:SIL3,PL e(Cat.4)

Digital Input:24 channels,24V DC with line monitoring

Digital Output:8 channels,max 2A per channel

Analog Input:8 channels,0/4-20mA or voltage signal

Communication:SafeEthernet safety bus

Programming tool:SILworX

Mounting:DIN rail mounting

Protection class:IP20

Operating temperature:-20~+60℃

Weight:0.38kg

Certification:CE

System compatibility:Matches HIMatrix series safety control system,supports SafeEthernet network connection,can work as standalone safety controller or distributed remote I/O,for petrochemical,chemical,boiler,compressor ESD emergency shutdown and fire&gas protection system.

Function:Compact integrated safety controller,executes safety logic program,collects DI/AI field signals,controls safety DO output to execute emergency trip. Support signal line short and open circuit diagnosis.

Installation:DIN rail installation inside control cabinet,connect field sensor and actuator wiring to terminal block,network via SafeEthernet port.

Interface:

‑24×DI terminals,8×DO terminals,8×AI terminals

‑SafeEthernet safety communication port

‑LED status indicators for run,fault,communication

‑DIP switch for address setting

Circuit feature:Dual channel safety hardware architecture,self-testing function,continuously diagnose internal circuit and field wiring faults,meets IEC61508 functional safety standard.

Feature:HIMatrix F35 integrated safety controller,part number 982200416,all-in-one CPU+I/O design,save cabinet space. Common faults:communication failure,IO channel damage,program loss. Verify firmware version before replacement.

Diagnostic:Module fault triggers safety trip,LED fault alarm,stop executing safety logic.

Built‑in function

982200416 performs safety interlock and emergency shutdown protection for industrial safety instrumented system,widely used for chemical,petrochemical and power plant SIS spare replacement.

Product Brief

982200416 belongs to HIMatrix F35 safety controller family,compact DIN rail SIL3 safety PLC with built-in digital and analog I/O. Verify firmware version and safety program backup before ordering. Check all channel diagnosis and network communication during commissioning. Widely applied for ESD emergency shutdown system. ESD anti‑static protection shall be followed during installation.
