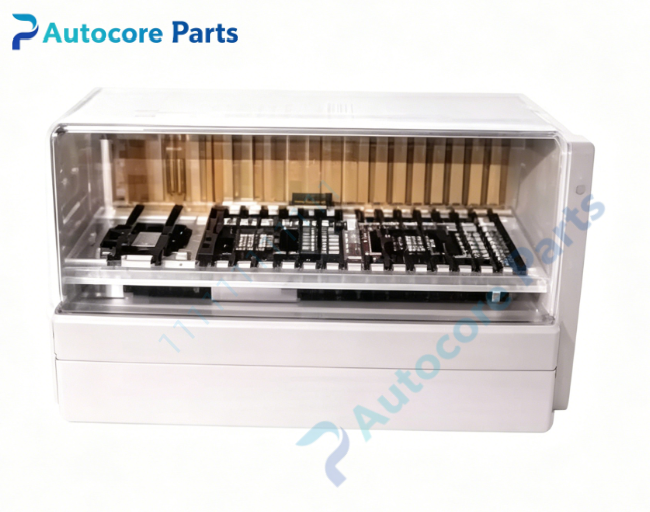

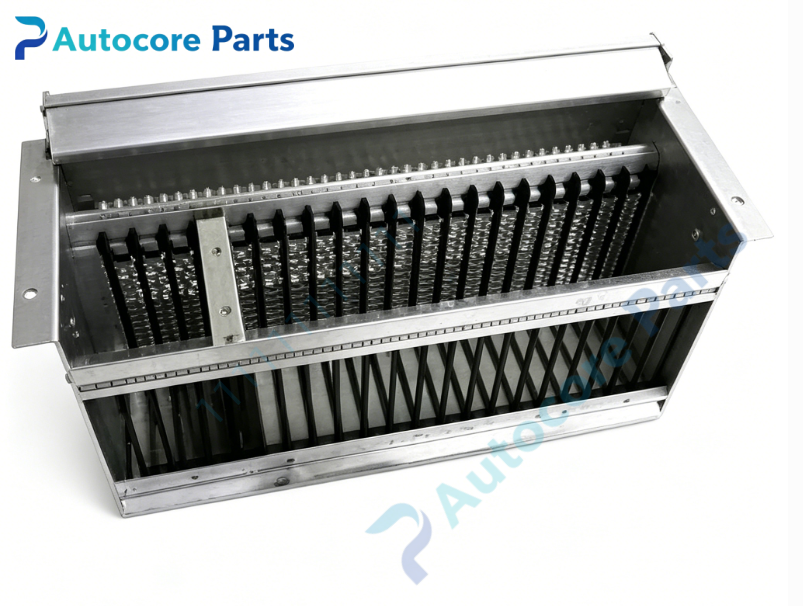

HIMatrix B5233-2 H51q-HRS Rack Assembly Kit

Technical Specifications

Model:B5233-2

Brand:HIMA(HIMatrix)

Safety certification:SIL3,IEC61508,TÜV certified

Rack specification:19 inch,5U height

System bus:Dual redundant hot standby backplane bus(H51q-HRS version)

Slot quantity:13 slots for I/O,CPU and plug-in modules

Included accessories:K1412B backplane,4pcs fan modules,cable tray,ground bar

Power bus:24V DC input,5V internal backplane power

Mounting:19 inch cabinet installation

Protection class:IP20

Operating temperature:-20~+60℃

Relative humidity:5~95% non-condensing

Weight:12.9kg

Certification:CE,ATEX compliant

System compatibility:Matches HIMA H51q-HRS hot standby redundant safety rack system,supports redundant CPU,power supply and I/O modules,for petrochemical,chemical plant ESD emergency shutdown and F&G fire gas protection system.

Function:Pre-assembled safety rack kit for H51q-HRS redundant hot standby system.Provides dual redundant backplane bus,module slots and forced air cooling,serves as hardware carrier for redundant hot standby safety CPU,power and I/O modules.

Installation:Install 5U rack into 19-inch control cabinet,fix mounting bolts,install redundant CPU,PS and I/O modules into slots,wire power and field signals.

Interface:

‑Dual redundant hot standby backplane bus interface

‑24V DC power terminal block

‑Fan fault signal output terminal

‑LED indicator for running and fault status

‑Module front slot openings

Circuit feature:Dual redundant safety hardware architecture,comprehensive self-diagnosis function,anti-electromagnetic interference,meets functional safety requirements for hazardous industrial environment.

Feature:HIMatrix H51q-HRS complete rack assembly kit B5233-2,redundant hot standby bus version. Common faults:backplane circuit damage,fan failure,terminal corrosion.Confirm H51q-HRS system version before replacement.

Diagnostic:Module fault triggers safety trip,fault LED on;backplane damage causes system communication interruption;fan fault brings rack overheat risk.

Built‑in function

B5233-2 provides redundant hot standby rack hardware platform for H51q-HRS safety interlock and emergency shutdown system,widely used for chemical and power plant SIS spare replacement.

Product Brief

B5233-2 belongs to HIMA H51q-HRS rack assembly family,5U 19-inch SIL3 fail-safe subrack kit with redundant hot standby bus and 13 slots. Verify rack version and firmware compatibility before ordering. Check backplane bus communication and fan function during commissioning. ESD anti‑static protection shall be followed during installation.
